BSP G thread 1/4" Male Thread natural Brass Tube Oil level indicator for pump with quartz glass tube

50
MOQ
BSP G thread 1/4" Male Thread natural Brass Tube Oil level indicator for pump with quartz glass tube
Features Gallery Product Description Request A Quote
Features
Specifications
Material: Brass Hpb57-3
Tube: Quarts Glass Tube
Thread: BSP,NPT,Metric Thread
Basic Infomation
Place of Origin: China
Brand Name: Grand
Certification: ISO9001
Model Number: 1/2",3/4",1",11/2",11/4",13/4",2"
Payment & Shipping Terms
Packaging Details: exporting packaging or as required.
Delivery Time: 45 work days
Payment Terms: T/T
Supply Ability: 20000/month
Product Description

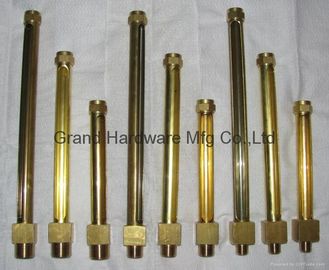

Male Thread Brass Tube Oil level indicator/oil level gauge with glass tube

Housing: Brass Tube.

Tube: Real glass tube.

O-Ring and flat gaskets: NBR Rubber.

Thread size: M10x1, M12x1.5, M14x1.5, M16x1.5, G1/4”, G3/8”, G1/2”, NPT1/4, NPT3/8, NPT1/2”

Temperature resistant: -20’C to 120 ‘C. / 0’F to 260 ‘F

High of two bolt: 80mm to 600mm

Usage: Pump, Thin-wall container, Radiator, Hydraulic reservoir, receivers, Gearboxes, Speed Reducer, Compressor and Power Transmission.

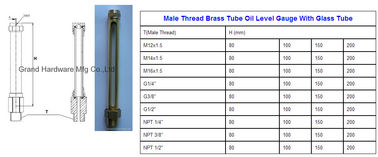

item brass sight gauges
Housing brass tube
tube real glass tube
O-Ring and flat gaskets NBR Rubber
Thread szie M10x1, M12x1.5, M14x1.5, M16x1.5, G1/4”, G3/8”,
G1/2”, NPT1/4, NPT3/8, NPT1/2”
Temperature resistant : -20’C to 120 ‘C. / 0’F to 260 ‘F
Distance of two bolts 80mm to 600mm



BSP G thread 1/4" Male Thread natural Brass Tube Oil level indicator for pump with quartz glass tube 0

BSP G thread 1/4" Male Thread natural Brass Tube Oil level indicator for pump with quartz glass tube 1

BSP G thread 1/4" Male Thread natural Brass Tube Oil level indicator for pump with quartz glass tube 2



BSP G thread 1/4" Male Thread natural Brass Tube Oil level indicator for pump with quartz glass tube 3BSP G thread 1/4" Male Thread natural Brass Tube Oil level indicator for pump with quartz glass tube 4BSP G thread 1/4" Male Thread natural Brass Tube Oil level indicator for pump with quartz glass tube 5BSP G thread 1/4" Male Thread natural Brass Tube Oil level indicator for pump with quartz glass tube 6BSP G thread 1/4" Male Thread natural Brass Tube Oil level indicator for pump with quartz glass tube 7BSP G thread 1/4" Male Thread natural Brass Tube Oil level indicator for pump with quartz glass tube 8BSP G thread 1/4" Male Thread natural Brass Tube Oil level indicator for pump with quartz glass tube 9BSP G thread 1/4" Male Thread natural Brass Tube Oil level indicator for pump with quartz glass tube 10BSP G thread 1/4" Male Thread natural Brass Tube Oil level indicator for pump with quartz glass tube 11BSP G thread 1/4" Male Thread natural Brass Tube Oil level indicator for pump with quartz glass tube 12BSP G thread 1/4" Male Thread natural Brass Tube Oil level indicator for pump with quartz glass tube 13BSP G thread 1/4" Male Thread natural Brass Tube Oil level indicator for pump with quartz glass tube 14

BSP G thread 1/4" Male Thread natural Brass Tube Oil level indicator for pump with quartz glass tube 15
