Home /Products/Hydraulic Oil Level Gauge/Metric thread M12X1 M16X1.5 M18X1.5 brass oil level gauge for hydraulic oil containers male thread liquid level indicator gearbox oil sight glass

Metric thread M12X1 M16X1.5 M18X1.5 brass oil level gauge for hydraulic oil containers male thread liquid level indicator gearbox oil sight glass

50pcs
MOQ
$ 0.8-10 pcs
Price
Metric thread M12X1 M16X1.5 M18X1.5 brass oil level gauge for hydraulic oil containers male thread liquid level indicator gearbox oil sight glass
Features Gallery Product Description Request A Quote
Features
Specifications
Material: Brass Hpb57-3
Thread: Metric Thread
Connection Type: Male
Basic Infomation
Place of Origin: China
Brand Name: grand-mfg
Model Number: M12,M14,M16
Payment & Shipping Terms
Packaging Details: exporting packaging
Delivery Time: 45 work days
Payment Terms: T/T
Supply Ability: 100000/month
Product Description

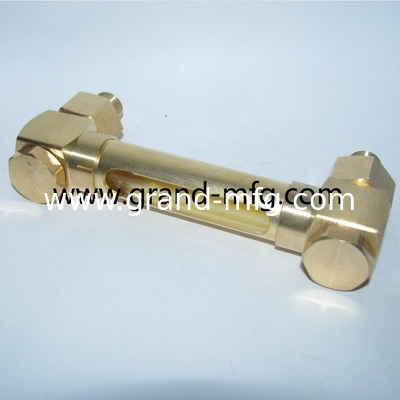

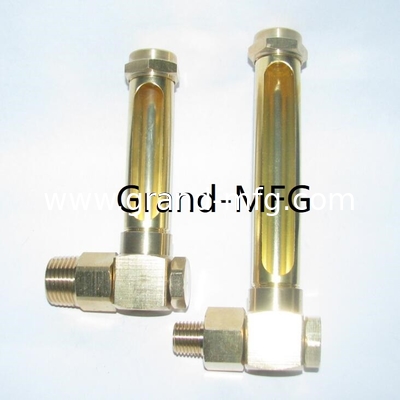

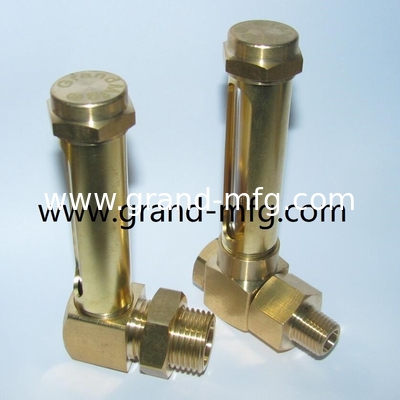

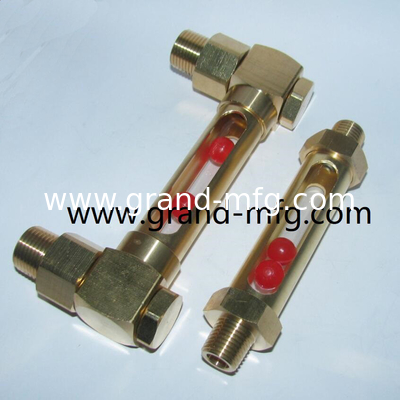

Brass Tube Oil level Indicator/Oil level Gauge with glass tube.Plastic level indicator/gauge
Housing: Brass Tube .
Tube: Real glass tube.
O-Ring and flat gaskets: NBR Rubber.
Thread szie: M10x1, M12x1.5, M14x1.5, M16x1.5, G1/4”, G3/8”, G1/2”, NPT1/4, NPT3/8, NPT1/2”
Temperature resistant: -20’C to 120 ‘C. / 0’F to 260 ‘F
Distance of two bolts: 80mm to 600mm
Usage: Pump, Thin-wall container, Radiator, Hydraulic reservoir, receivers, Gearboxes,
Speed Reducer, Compressor and Power Transmission.



itembrass sight gauges
Housingbrass tube
tubereal glass tube
O-Ring and flat gasketsNBR Rubber
Thread szieM10x1, M12x1.5, M14x1.5, M16x1.5, G1/4”, G3/8”,
G1/2”, NPT1/4, NPT3/8, NPT1/2”
Temperature resistant: -20’C to 120 ‘C. / 0’F to 260 ‘F
Distance of two bolts80mm to 600mm


Metric thread M12X1 M16X1.5 M18X1.5 brass oil level gauge for hydraulic oil containers male thread liquid level indicator gearbox oil sight glass 0


itembrass breather vent plugs
materialbrass or aluminum
Thread TypeBSP,Metric,NPT
finishNatural and Nickel Plated
sizeAny Size OEM are welcome.
Work Pressure0.005 MPa to M 0.03 Mpa
Tempture Range: -30 Cent degree to 130 Cent degree.
Pressure Range5-10 Bar(0.5MPa to 1 MPa).
Thread typePump, Thin-wall container, Radiator, Hydraulic reservoir, receivers,
Gearboxes, Speed Reducer, Compressor and Power Transmission.


Metric thread M12X1 M16X1.5 M18X1.5 brass oil level gauge for hydraulic oil containers male thread liquid level indicator gearbox oil sight glass 1

itemSS sight glasses
materialStainless steel 304,Stainless steel 304L,Stainless Steel 316,
Stainless steel 316L
O-RingViton,FKM,NBR, Aramid gasket and Copper seal
windowNatural Glass,Tempered Glass and Borosilicate Glass
Glass Thickness2mm to 5 mm
ReflectorsStainless Steel 304 Reflector
(Any type you can chose with reflector or without Reflector, You also can add float ball.)
Resist Tempreature Range.-30'C TO 120'C
Pressure Range5-10 Bar(0.5MPa to 1 MPa).
Thread typeNPT,NPTF,UNC,UNF,Metric and BSP(G thread)

Metric thread M12X1 M16X1.5 M18X1.5 brass oil level gauge for hydraulic oil containers male thread liquid level indicator gearbox oil sight glass 2

itemaluminum sight glasses
material bodyAluminum 6061 T6/Aluminum 6063
O-RingViton,FKM,NBR, Aramid gasket and Copper seal
windowNatural Glass,Tempered Glass and Borosilicate Glass
Glass Thickness2mm to 5 mm
ReflectorsStainless Steel 304 Reflector
(Any type you can chose with reflector or without Reflector, You also can add float ball.)
Resist Tempreature Range.-30'C TO 120'C
Pressure Range5-10 Bar(0.5MPa to 1 MPa).
Thread typeUNC,UNF,Metric and BSP(G thread)
sizeBelow you will get the size you wanted.Another size is okay.
OEM are welcome.
UsagePump,Oil Receivers,Gearboxes,Speed Reducer,Compressor and Power Transimission.


Metric thread M12X1 M16X1.5 M18X1.5 brass oil level gauge for hydraulic oil containers male thread liquid level indicator gearbox oil sight glass 3


Please contact us for checking our stocks and confirming the specifications.
