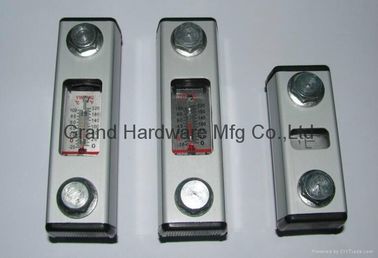

Hydraulic oil level indicator with level marks, oil level gauge with level marks
Housing: Aluminum alloy housing and inside thermoplastic (PC), transparent, high mechanical stability, non-ageing.
O-Ring and flat gaskets: NBR Rubber.
Reflector: aluminum with printed white.
Bolt: M10 Hexagon nut and washer in galvanized steel.
Temperature resistant: -20’C to 100 ‘C. / 0’F to 220 ‘F
High of two bolt: 50mm to 500mm
Usage: Pump, Thin-wall container, Radiator, Hydraulic reservoir, receivers, Gearboxes, Speed Reducer, Compressor and Power Transmission.
item | Hydraulic oil level indicator |
Housing | Aluminum alloy housing and inside thermoplastic (PC) |
O-Ring and flat gaskets | NBR Rubber |
Reflector | aluminum with printed white |
Bolt | M10 Hexagon nut and washer in galvanized steel |
Temperature resistant | : -20’C to 100 ‘C. / 0’F to 220 ‘F |
Distance of two bolts | 50mm to 500mm |
Usage | Thin-wall container, Radiator, Hydraulic reservoir and receivers. |
