Name: aluminum hydraulic oil level indicator with level marks for Thin-wall container oil level gauge
Brand: grandmfg
SKU: visit www.grandmfgcn.com
Price: 0.8 USD
Availability: InStock
Rating: 4.8 (171 reviews)

Features Gallery Product Description Request A Quote

Features

Specifications

Material: Aluminium

Connection: Mount On Equipments

Bolts: Thread

Basic Infomation

Place of Origin: China

Brand Name: grandmfg

Model Number: visit www.grandmfgcn.com

Payment & Shipping Terms

Packaging Details: exporting packaging or as required.

Delivery Time: 45 work days

Payment Terms: T/T

Supply Ability: 20000/month

Gallery

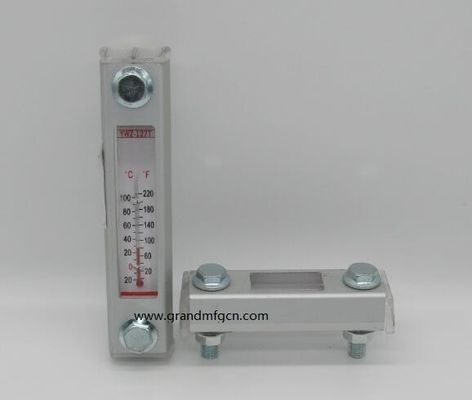

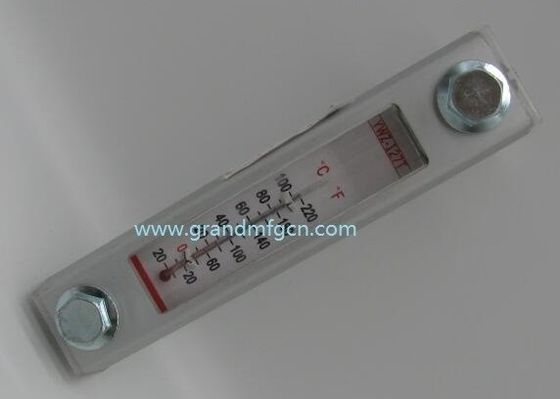

aluminum hydraulic oil level indicator with level marks for Thin-wall container oil level gauge

Product Description

Hydraulic oil level indicator with level marks, oil level gauge with level marks
Housing: Aluminum alloy housing and inside thermoplastic (PC), transparent, high mechanical stability, non-ageing.
O-Ring and flat gaskets: NBR Rubber.
Reflector: aluminum with printed white.
Bolt: M10 Hexagon nut and washer in galvanized steel.
Temperature resistant: -20’C to 100 ‘C. / 0’F to 220 ‘F
High of two bolt: 50mm to 500mm
Usage: Pump, Thin-wall container, Radiator, Hydraulic reservoir, receivers, Gearboxes, Speed Reducer, Compressor and Power Transmission.

item	Hydraulic oil level indicator
Housing	Aluminum alloy housing and inside thermoplastic (PC)
O-Ring and flat gaskets	NBR Rubber
Reflector	aluminum with printed white
Bolt	M10 Hexagon nut and washer in galvanized steel
Temperature resistant	: -20’C to 100 ‘C. / 0’F to 220 ‘F
Distance of two bolts	50mm to 500mm
Usage	Thin-wall container, Radiator, Hydraulic reservoir and receivers.

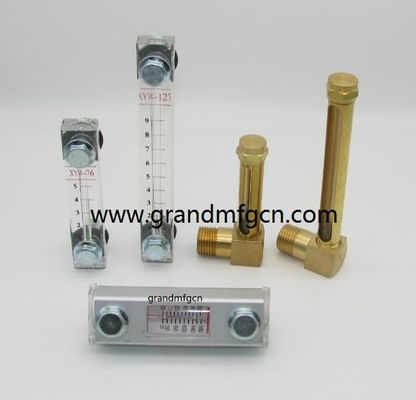

aluminum hydraulic oil level indicator with level marks for Thin-wall container oil level gauge 0

item	brass sight gauges
Housing	brass tube
tube	quartz glass tube
O-Ring and flat gaskets	NBR Rubber
Thread szie	M10x1, M12x1.5, M14x1.5, M16x1.5, G1/4”, G3/8”, G1/2”, NPT1/4, NPT3/8, NPT1/2”
Temperature resistant	: -20’C to 120 ‘C. / 0’F to 260 ‘F
Distance of two bolts	80mm to 600mm

aluminum hydraulic oil level indicator with level marks for Thin-wall container oil level gauge 3

Item	Fused sight glass
Material	steel nickel plated
Window	Natural Glass
Glass Thickness	2mm to 5 mm
Working Tempreature	: －40℃～200℃
Temperature Assaults Date	: －40℃～180℃
Working Pressure	2.5, 4.0Mpa
Our products are provided with simple structure, novel appearance, high airproof, well poressure, good anti-cold concussion, marked clearly in the indication of liquid location etc characters, and favor of the spacious domestic and overseas air compressor producer deeply.

aluminum hydraulic oil level indicator with level marks for Thin-wall container oil level gauge 6

item	brass sight glasses
material	brass
O-Ring	Viton,FKM,NBR, Aramid gasket and Copper seal
window	Natural Glass,Tempered Glass and Borosilicate Glass
Glass Thickness	2mm to 5 mm
Reflectors	Stainless Steel 304 Reflector (Any type you can chose with reflector or without Reflector, You also can add float ball.)
Resist Tempreature Range	.-30'C TO 120'C
Pressure Range	5-10 Bar(0.5MPa to 1 MPa).
Thread type	NPT,NPTF,UNC,UNF,Metric and BSP(G thread)

aluminum hydraulic oil level indicator with level marks for Thin-wall container oil level gauge 8

item	aluminum sight glasses
material body	Aluminum 6061 T6/Aluminum 6063
O-Ring	Viton,FKM,NBR, Aramid gasket and Copper seal
window	Natural Glass,Tempered Glass and Borosilicate Glass
Glass Thickness	2mm to 5 mm
Reflectors	Stainless Steel 304 Reflector (Any type you can chose with reflector or without Reflector, You also can add float ball.)
Resist Tempreature Range	.-30'C TO 120'C
Pressure Range	5-10 Bar(0.5MPa to 1 MPa).
Thread type	UNC,UNF,Metric and BSP(G thread)
size	Below you will get the size you wanted.Another size is okay. OEM are welcome.
Usage	Pump,Oil Receivers,Gearboxes,Speed Reducer,Compressor and Power Transimission.

aluminum hydraulic oil level indicator with level marks for Thin-wall container oil level gauge 10

item	SS sight glasses
material	Stainless steel 304,Stainless steel 304L,Stainless Steel 316, Stainless steel 316L
O-Ring	Viton,FKM,NBR, Aramid gasket and Copper seal
window	Natural Glass,Tempered Glass and Borosilicate Glass
Glass Thickness	2mm to 5 mm
Reflectors	Stainless Steel 304 Reflector (Any type you can chose with reflector or without Reflector, You also can add float ball.)
Resist Tempreature Range	.-30'C TO 120'C
Pressure Range	5-10 Bar(0.5MPa to 1 MPa).
Thread type	NPT,NPTF,UNC,UNF,Metric and BSP(G thread)

aluminum hydraulic oil level indicator with level marks for Thin-wall container oil level gauge 12
