Name: Custom oil sight glass male NPT thread 3/4" natural brass tubular oil sight level gauge for oil level checing gearbox brass tubular oil level gauge supplied
Brand: GM
SKU: 1/4",1/2",M12,M16
Price: 0.8 USD
Availability: InStock
Rating: 5 (133 reviews)

Features Gallery Product Description Request A Quote

Features

Specifications

Material: Brass

Size: 1/4",1/2",M12,M16

Finishing: Nature

Packaging: Cartons,pallets

Basic Infomation

Place of Origin: China

Brand Name: GM

Model Number: 1/4",1/2",M12,M16

Payment & Shipping Terms

Packaging Details: standard export packaging

Delivery Time: 45days

Payment Terms: T/T

Supply Ability: 50000pcs/month

Gallery

Custom oil sight glass male NPT thread 3/4" natural brass tubular oil sight level gauge for oil level checing gearbox brass tubular oil level gauge supplied

Product Description

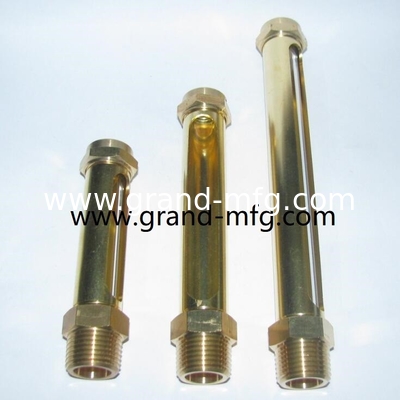

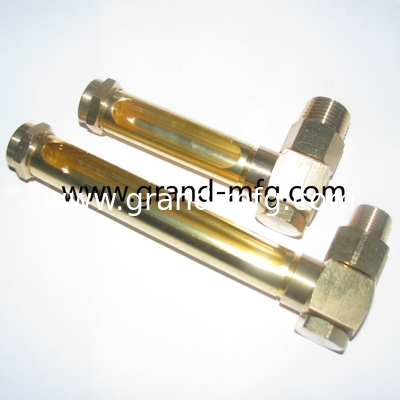

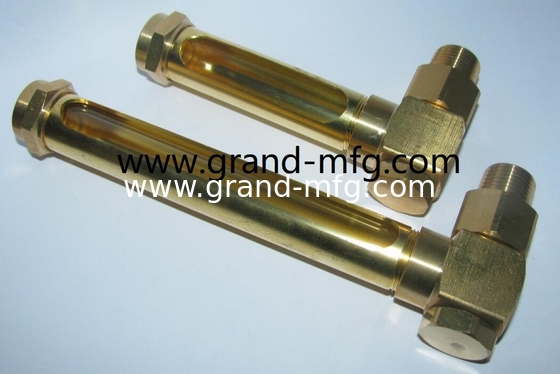

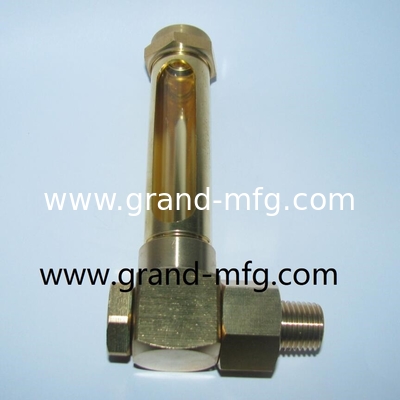

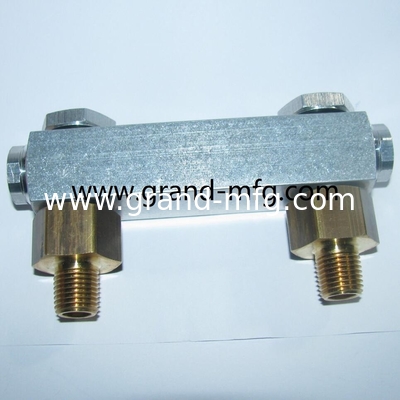

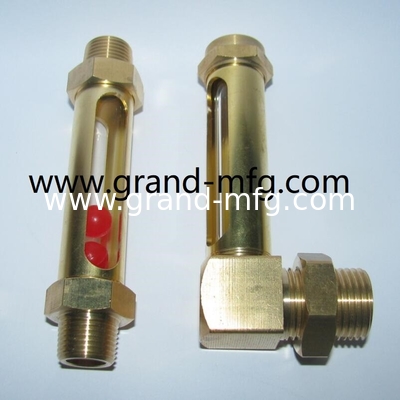

Brass Tube Oil level Indicator/Oil level Gauge with glass tube.Plastic level indicator/gauge

Housing: Brass Tube .

Tube: Real glass tube.

O-Ring and flat gaskets: NBR Rubber.

Thread szie: M10x1, M12x1.5, M14x1.5, M16x1.5, G1/4”, G3/8”, G1/2”, NPT1/4, NPT3/8, NPT1/2”

Temperature resistant: -20’C to 120 ‘C. / 0’F to 260 ‘F

Distance of two bolts: 80mm to 600mm

Usage: Pump, Thin-wall container, Radiator, Hydraulic reservoir, receivers, Gearboxes,

Speed Reducer, Compressor and Power Transmission.

Custom oil sight glass male NPT thread 3/4" natural brass tubular oil sight level gauge for oil level checing gearbox brass tubular oil level gauge supplied 0

item	brass sight gauges
Housing	brass tube
tube	quartz glass tube
O-Ring and flat gaskets	NBR Rubber
Thread szie	M10x1, M12x1.5, M14x1.5, M16x1.5, G1/4”, G3/8”, G1/2”, NPT1/4, NPT3/8, NPT1/2”
Temperature resistant	: -20’C to 120 ‘C. / 0’F to 260 ‘F
Distance of two bolts	80mm to 600mm

Custom oil sight glass male NPT thread 3/4" natural brass tubular oil sight level gauge for oil level checing gearbox brass tubular oil level gauge supplied 1

item	brass sight glasses
material	brass
O-Ring	Viton,FKM,NBR, Aramid gasket and Copper seal
window	Natural Glass,Tempered Glass and Borosilicate Glass
Glass Thickness	2mm to 5 mm
Reflectors	Stainless Steel 304 Reflector (Any type you can chose with reflector or without Reflector, You also can add float ball.)
Resist Tempreature Range	.-30'C TO 120'C
Pressure Range	5-10 Bar(0.5MPa to 1 MPa).
Thread type	NPT,NPTF,UNC,UNF,Metric and BSP(G thread)

Custom oil sight glass male NPT thread 3/4" natural brass tubular oil sight level gauge for oil level checing gearbox brass tubular oil level gauge supplied 2

item	SS sight glasses
material	Stainless steel 304,Stainless steel 304L,Stainless Steel 316, Stainless steel 316L
O-Ring	Viton,FKM,NBR, Aramid gasket and Copper seal
window	Natural Glass,Tempered Glass and Borosilicate Glass
Glass Thickness	2mm to 5 mm
Reflectors	Stainless Steel 304 Reflector (Any type you can chose with reflector or without Reflector, You also can add float ball.)
Resist Tempreature Range	.-30'C TO 120'C
Pressure Range	5-10 Bar(0.5MPa to 1 MPa).
Thread type	NPT,NPTF,UNC,UNF,Metric and BSP(G thread)

Custom oil sight glass male NPT thread 3/4" natural brass tubular oil sight level gauge for oil level checing gearbox brass tubular oil level gauge supplied 3

item	steel sight glasses
material	steel
O-Ring	Viton,FKM,NBR, Aramid gasket and Copper seal
window	Natural Glass,Tempered Glass and Borosilicate Glass
Glass Thickness	2mm to 5 mm
Reflectors	Stainless Steel 304 Reflector (Any type you can chose with reflector or without Reflector, You also can add float ball.)
Resist Tempreature Range	.-30'C TO 120'C
Pressure Range	5-10 Bar(0.5MPa to 1 MPa).
Thread type	NPT,NPTF,UNC,UNF,Metric and BSP(G thread)

Custom oil sight glass male NPT thread 3/4" natural brass tubular oil sight level gauge for oil level checing gearbox brass tubular oil level gauge supplied 4

item	aluminum machined parts
material	Al 6061,Alloy Alloy,Die castings Aluminum Castings.
finish	Natural,Sandblasted,Anodized and Oxidized Color
Processing	Turning,Machining,Lathing,Milling,moulded,Sand Castings and die castings
Dimension Tolerance:	: +/-0.02mm or +/-0.005 inch(CNC machining and lathing) : +/-0.1mm or +/-0.05 inch (Aluminum Castings)

Custom oil sight glass male NPT thread 3/4" natural brass tubular oil sight level gauge for oil level checing gearbox brass tubular oil level gauge supplied 6
