Name: Brass Oil Level Gauges in male NPT,BSP,G thread1/8",1/4",3/8",1/2"3/4",with quartz glass tube
Brand: grandmfg
SKU: 1/2",3/4",1",11/2",11/4",13/4",2"
Price: 0.8 USD
Availability: InStock
Rating: 4.6 (138 reviews)

Features Gallery Product Description Request A Quote

Features

Specifications

Material: Brass Hpb57-3

Tube: Glass Tube

Surface Treatment: No Finishing

Basic Infomation

Place of Origin: China

Brand Name: grandmfg

Model Number: 1/2",3/4",1",11/2",11/4",13/4",2"

Payment & Shipping Terms

Packaging Details: exporting packaging

Delivery Time: 45 work days

Payment Terms: T/T

Supply Ability: 100000/month

Gallery

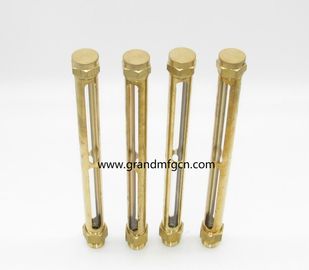

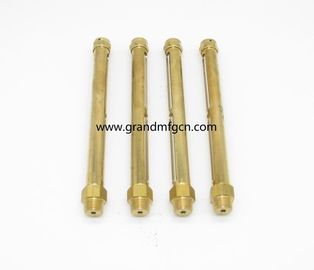

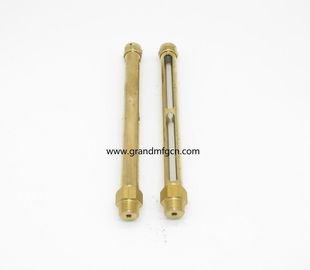

Brass Oil Level Gauges in male NPT,BSP,G thread1/8",1/4",3/8",1/2"3/4",with quartz glass tube

Product Description

Housing: Brass Tube .

Tube: Real glass tube.

O-Ring and flat gaskets: NBR Rubber.

Thread szie: M10x1, M12x1.5, M14x1.5, M16x1.5, G1/4”, G3/8”, G1/2”, NPT1/4, NPT3/8, NPT1/2”

Temperature resistant: -20’C to 120 ‘C. / 0’F to 260 ‘F

Distance of two bolts: 80mm to 600mm

Usage: Pump, Thin-wall container, Radiator, Hydraulic reservoir, receivers, Gearboxes, Speed Reducer, Compressor and Power Transmission.

item	brass sight gauges
Housing	brass tube
tube	quartz glass tube
O-Ring and flat gaskets	NBR Rubber
Thread szie	M10x1, M12x1.5, M14x1.5, M16x1.5, G1/4”, G3/8”, G1/2”, NPT1/4, NPT3/8, NPT1/2”
Temperature resistant	: -20’C to 120 ‘C. / 0’F to 260 ‘F
Distance of two bolts	80mm to 600mm

Brass Oil Level Gauges in male NPT,BSP,G thread1/8",1/4",3/8",1/2"3/4",with quartz glass tube 0

Brass Oil Level Gauges in male NPT,BSP,G thread1/8",1/4",3/8",1/2"3/4",with quartz glass tube 1

Brass Oil Level Gauges in male NPT,BSP,G thread1/8",1/4",3/8",1/2"3/4",with quartz glass tube 2

Brass Oil Level Gauges in male NPT,BSP,G thread1/8",1/4",3/8",1/2"3/4",with quartz glass tube 3

Brass Oil Level Gauges in male NPT,BSP,G thread1/8",1/4",3/8",1/2"3/4",with quartz glass tube 4

Brass Oil Level Gauges in male NPT,BSP,G thread1/8",1/4",3/8",1/2"3/4",with quartz glass tube 5

Brass Oil Level Gauges in male NPT,BSP,G thread1/8",1/4",3/8",1/2"3/4",with quartz glass tube 6

item	brass sight glasses
material	brass
O-Ring	Viton,FKM,NBR, Aramid gasket and Copper seal
window	Natural Glass,Tempered Glass and Borosilicate Glass
Glass Thickness	2mm to 5 mm
Reflectors	Stainless Steel 304 Reflector (Any type you can chose with reflector or without Reflector, You also can add float ball.)
Resist Tempreature Range	.-30'C TO 120'C
Pressure Range	5-10 Bar(0.5MPa to 1 MPa).
Thread type	NPT,NPTF,UNC,UNF,Metric and BSP(G thread)

Brass Oil Level Gauges in male NPT,BSP,G thread1/8",1/4",3/8",1/2"3/4",with quartz glass tube 8

Brass Oil Level Gauges in male NPT,BSP,G thread1/8",1/4",3/8",1/2"3/4",with quartz glass tube 9

Brass Oil Level Gauges in male NPT,BSP,G thread1/8",1/4",3/8",1/2"3/4",with quartz glass tube 10

item	brass breather vent plugs
material	brass or aluminum
Thread Type	BSP,Metric,NPT
finish	Natural and Nickel Plated
size	Any Size OEM are welcome.
Work Pressure	0.005 MPa to M 0.03 Mpa
Tempture Range	: -30 Cent degree to 130 Cent degree.
Pressure Range	5-10 Bar(0.5MPa to 1 MPa).
Thread type	Pump, Thin-wall container, Radiator, Hydraulic reservoir, receivers, Gearboxes, Speed Reducer, Compressor and Power Transmission.

Brass Oil Level Gauges in male NPT,BSP,G thread1/8",1/4",3/8",1/2"3/4",with quartz glass tube 11

item	steel sight glasses
material	steel
O-Ring	Viton,FKM,NBR, Aramid gasket and Copper seal
window	Natural Glass,Tempered Glass and Borosilicate Glass
Glass Thickness	2mm to 5 mm
Reflectors	Stainless Steel 304 Reflector (Any type you can chose with reflector or without Reflector, You also can add float ball.)
Resist Tempreature Range	.-30'C TO 120'C
Pressure Range	5-10 Bar(0.5MPa to 1 MPa).
Thread type	NPT,NPTF,UNC,UNF,Metric and BSP(G thread)

Brass Oil Level Gauges in male NPT,BSP,G thread1/8",1/4",3/8",1/2"3/4",with quartz glass tube 13

item	aluminum sight glasses
material body	Aluminum 6061 T6/Aluminum 6063
O-Ring	Viton,FKM,NBR, Aramid gasket and Copper seal
window	Natural Glass,Tempered Glass and Borosilicate Glass
Glass Thickness	2mm to 5 mm
Reflectors	Stainless Steel 304 Reflector (Any type you can chose with reflector or without Reflector, You also can add float ball.)
Resist Tempreature Range	.-30'C TO 120'C
Pressure Range	5-10 Bar(0.5MPa to 1 MPa).
Thread type	UNC,UNF,Metric and BSP(G thread)
size	Below you will get the size you wanted.Another size is okay. OEM are welcome.
Usage	Pump,Oil Receivers,Gearboxes,Speed Reducer,Compressor and Power Transimission.

item	SS sight glasses
material	Stainless steel 304,Stainless steel 304L,Stainless Steel 316, Stainless steel 316L
O-Ring	Viton,FKM,NBR, Aramid gasket and Copper seal
window	Natural Glass,Tempered Glass and Borosilicate Glass
Glass Thickness	2mm to 5 mm
Reflectors	Stainless Steel 304 Reflector (Any type you can chose with reflector or without Reflector, You also can add float ball.)
Resist Tempreature Range	.-30'C TO 120'C
Pressure Range	5-10 Bar(0.5MPa to 1 MPa).
Thread type	NPT,NPTF,UNC,UNF,Metric and BSP(G thread)

Brass Oil Level Gauges in male NPT,BSP,G thread1/8",1/4",3/8",1/2"3/4",with quartz glass tube 17

item	sight glasses,oil gauges
	oil drain plugs,steel plugs
	breather vent plugs
	auto radiator parts
	magnetic drain plugs
	precision machined parts(brass,steel,stainless steel,aluminum) hydraulic steel fittings OEM and ODM business welcome.
website	www.grandmfgcn.com
sales department	Grace
Email	grandmfg@vip.126.com

item	SS machined parts
material	SS304,SS316
finish	Natural
service	OEM and ODM business
Dimension Tolerance:	CNC Lathe +/-0.01 mm. General Lathe +/-0.1 to 0.2 mm

item	brass machined parts
material	Brass,Copper and Bronze.
finish	Natural,Polished,Nickel plated and Chrome Plated
Processing	Brass Hot Forged,Bronze Sand Castings,CNC machining, CNC turning or CNC Lathing,Milling,Sandblasted
Dimension Tolerance:	CNC Lathe +/-0.01 mm. General Lathe +/-0.1 to 0.2 mm
