Name: Alloy Aluminum Hydraulic Oil Level Indicator / Gauge With Thermometer level marks for Thin-wall container
Brand: grandmfg
SKU: visit www.grandmfgcn.com
Price: 0.8 USD
Availability: InStock
Rating: 4.7 (154 reviews)

Features Gallery Product Description Request A Quote

Features

Specifications

Material: Aluminium

Connection: Mount On Equipments

Bolts: Thread

Basic Infomation

Place of Origin: China

Brand Name: grandmfg

Model Number: visit www.grandmfgcn.com

Payment & Shipping Terms

Packaging Details: exporting packaging or as required.

Delivery Time: 45 work days

Payment Terms: T/T

Supply Ability: 20000/month

Gallery

Alloy Aluminum Hydraulic Oil Level Indicator / Gauge With Thermometer level marks for Thin-wall container

Product Description

Hydraulic oil level indicator with level marks, oil level gauge with level marks

Housing: Aluminum alloy housing and inside thermoplastic (PC), transparent, high mechanical stability, non-ageing.

O-Ring and flat gaskets: NBR Rubber.

Reflector: aluminum with printed white.

Bolt: M10 Hexagon nut and washer in galvanized steel.

Temperature resistant: -20’C to 100 ‘C. / 0’F to 220 ‘F

High of two bolt: 50mm to 500mm

Usage: Pump, Thin-wall container, Radiator, Hydraulic reservoir, receivers, Gearboxes, Speed Reducer, Compressor and Power Transmission.

item	Hydraulic oil level indicator
Housing	Aluminum alloy housing and inside thermoplastic (PC)
O-Ring and flat gaskets	NBR Rubber
Reflector	aluminum with printed white
Bolt	M10 Hexagon nut and washer in galvanized steel
Temperature resistant	: -20’C to 100 ‘C. / 0’F to 220 ‘F
Distance of two bolts	50mm to 500mm
Usage	Thin-wall container, Radiator, Hydraulic reservoir and receivers.

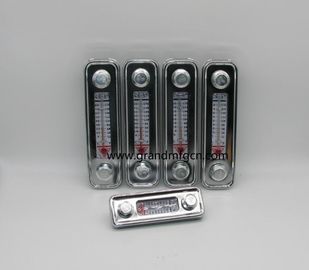

Alloy Aluminum Hydraulic Oil Level Indicator / Gauge With Thermometer level marks for Thin-wall container 0

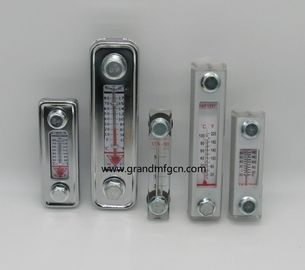

Alloy Aluminum Hydraulic Oil Level Indicator / Gauge With Thermometer level marks for Thin-wall container 3

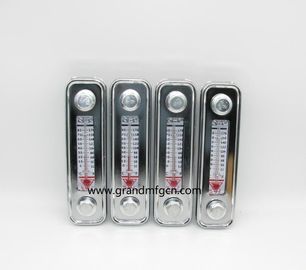

Alloy Aluminum Hydraulic Oil Level Indicator / Gauge With Thermometer level marks for Thin-wall container 4

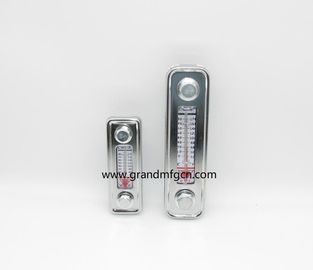

Alloy Aluminum Hydraulic Oil Level Indicator / Gauge With Thermometer level marks for Thin-wall container 5

Alloy Aluminum Hydraulic Oil Level Indicator / Gauge With Thermometer level marks for Thin-wall container 6

Alloy Aluminum Hydraulic Oil Level Indicator / Gauge With Thermometer level marks for Thin-wall container 7

Alloy Aluminum Hydraulic Oil Level Indicator / Gauge With Thermometer level marks for Thin-wall container 9

Alloy Aluminum Hydraulic Oil Level Indicator / Gauge With Thermometer level marks for Thin-wall container 10

Alloy Aluminum Hydraulic Oil Level Indicator / Gauge With Thermometer level marks for Thin-wall container 11

item	brass sight gauges
Housing	brass tube
tube	quartz glass tube
O-Ring and flat gaskets	NBR Rubber
Thread szie	M10x1, M12x1.5, M14x1.5, M16x1.5, G1/4”, G3/8”, G1/2”, NPT1/4, NPT3/8, NPT1/2”
Temperature resistant	: -20’C to 120 ‘C. / 0’F to 260 ‘F
Distance of two bolts	80mm to 600mm

Alloy Aluminum Hydraulic Oil Level Indicator / Gauge With Thermometer level marks for Thin-wall container 13

Alloy Aluminum Hydraulic Oil Level Indicator / Gauge With Thermometer level marks for Thin-wall container 14

Alloy Aluminum Hydraulic Oil Level Indicator / Gauge With Thermometer level marks for Thin-wall container 15

Alloy Aluminum Hydraulic Oil Level Indicator / Gauge With Thermometer level marks for Thin-wall container 16

Item	Fused sight glass
Material	steel nickel plated
Window	Natural Glass
Glass Thickness	2mm to 5 mm
Working Tempreature	: －40℃～200℃
Temperature Assaults Date	: －40℃～180℃
Working Pressure	2.5, 4.0Mpa
Our products are provided with simple structure, novel appearance, high airproof, well poressure, good anti-cold concussion, marked clearly in the indication of liquid location etc characters, and favor of the spacious domestic and overseas air compressor producer deeply.

Alloy Aluminum Hydraulic Oil Level Indicator / Gauge With Thermometer level marks for Thin-wall container 17

item	brass sight glasses
material	brass
O-Ring	Viton,FKM,NBR, Aramid gasket and Copper seal
window	Natural Glass,Tempered Glass and Borosilicate Glass
Glass Thickness	2mm to 5 mm
Reflectors	Stainless Steel 304 Reflector (Any type you can chose with reflector or without Reflector, You also can add float ball.)
Resist Tempreature Range	.-30'C TO 120'C
Pressure Range	5-10 Bar(0.5MPa to 1 MPa).
Thread type	NPT,NPTF,UNC,UNF,Metric and BSP(G thread)

Alloy Aluminum Hydraulic Oil Level Indicator / Gauge With Thermometer level marks for Thin-wall container 18

Alloy Aluminum Hydraulic Oil Level Indicator / Gauge With Thermometer level marks for Thin-wall container 19

Alloy Aluminum Hydraulic Oil Level Indicator / Gauge With Thermometer level marks for Thin-wall container 20

Alloy Aluminum Hydraulic Oil Level Indicator / Gauge With Thermometer level marks for Thin-wall container 21

item	brass breather vent plugs
material	brass or aluminum
Thread Type	BSP,Metric,NPT
finish	Natural and Nickel Plated
size	Any Size OEM are welcome.
Work Pressure	0.005 MPa to M 0.03 Mpa
Tempture Range	: -30 Cent degree to 130 Cent degree.
Pressure Range	5-10 Bar(0.5MPa to 1 MPa).
Thread type	Pump, Thin-wall container, Radiator, Hydraulic reservoir, receivers, Gearboxes, Speed Reducer, Compressor and Power Transmission.
