Name: Metric thread M12x1.5 M14x1.5 M16x1.5 oil sight glass liquid level gauge indicator supplied GRAND-MFG
Brand: grand-mfg
SKU: M10,M12,M14,M16,M22,M27,M33
Price: 0.8 USD
Availability: InStock
Rating: 4.5 (111 reviews)

Features Gallery Product Description Request A Quote

Features

Specifications

Material: Brass Hpb57-3

Thread: BSP,NPT,Metric Thread

Finish: No Finishing

Window: Natural Glass

Glass Thickness: 2mm-5mm

Basic Infomation

Place of Origin: China

Brand Name: grand-mfg

Model Number: M10,M12,M14,M16,M22,M27,M33

Payment & Shipping Terms

Packaging Details: exporting packaging

Delivery Time: 45 work days

Payment Terms: T/T

Supply Ability: 50000/month

Gallery

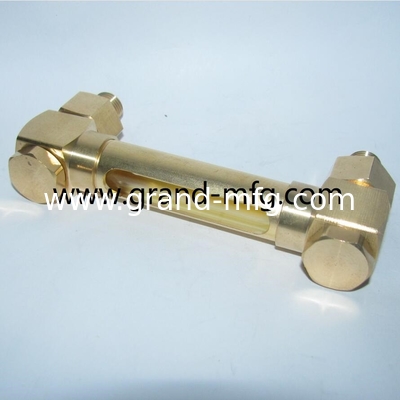

Metric thread M12x1.5 M14x1.5 M16x1.5 oil sight glass liquid level gauge indicator supplied GRAND-MFG

Product Description

Housing: Brass Tube .
Tube: Real glass tube.
O-Ring and flat gaskets: NBR Rubber.
Thread szie: M10x1, M12x1.5, M14x1.5, M16x1.5, G1/4”, G3/8”, G1/2”, NPT1/4, NPT3/8, NPT1/2”
Temperature resistant: -20’C to 120 ‘C. / 0’F to 260 ‘F
Distance of two bolts: 80mm to 600mm
Usage: Pump, Thin-wall container, Radiator, Hydraulic reservoir, receivers, Gearboxes,

Speed Reducer, Compressor and Power Transmission.

item	sight glasses,oil gauges
	oil drain plugs,steel plugs
	breather vent plugs
	auto radiator parts
	magnetic drain plugs
	precision machined parts(brass,steel,stainless steel,aluminum) hydraulic steel fittings OEM and ODM business welcome.
website	www.grand-mfg.com
sales department	Grace
Email	grandmfg@vip.126.com

item	brass sight gauges
Housing	brass tube
tube	quartz glass tube
O-Ring and flat gaskets	NBR Rubber
Thread szie	M10x1, M12x1.5, M14x1.5, M16x1.5, G1/4”, G3/8”, G1/2”, NPT1/4, NPT3/8, NPT1/2”
Temperature resistant	: -20’C to 120 ‘C. / 0’F to 260 ‘F
Distance of two bolts	80mm to 600mm

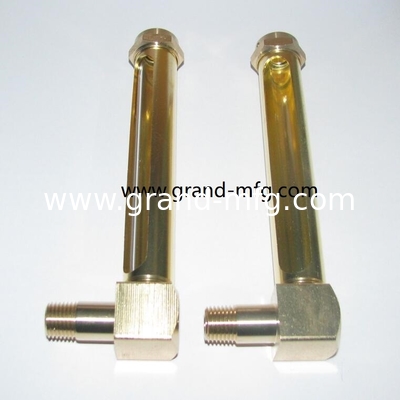

Metric thread M12x1.5 M14x1.5 M16x1.5 oil sight glass liquid level gauge indicator supplied GRAND-MFG 0

item	Hydraulic oil level indicator
Housing	Aluminum alloy housing and inside thermoplastic (PC)
O-Ring and flat gaskets	NBR Rubber
Reflector	aluminum with printed white
Bolt	M10 Hexagon nut and washer in galvanized steel
Temperature resistant	: -20’C to 100 ‘C. / 0’F to 220 ‘F
Distance of two bolts	50mm to 500mm
Usage	Thin-wall container, Radiator, Hydraulic reservoir and receivers.

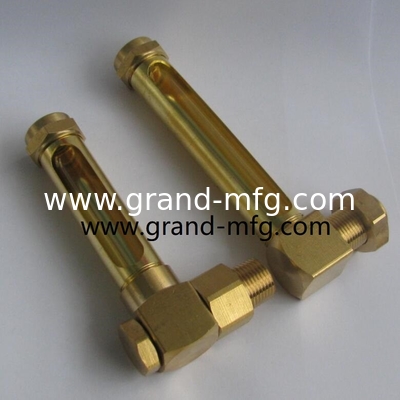

Metric thread M12x1.5 M14x1.5 M16x1.5 oil sight glass liquid level gauge indicator supplied GRAND-MFG 1

item	plastic sight glasses
material	plastic
seal	NBR
Reflectors	Plastic PMMA
Resist Tempreature Range	: -30'C to 70'C
Pressure Range	5-10 Bar(0.5MPa to 1 MPa).
Thread type	Metric and BSP(G thread)

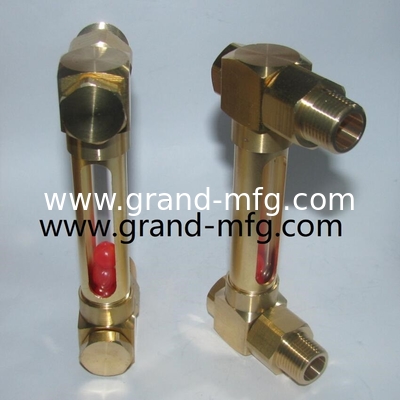

Metric thread M12x1.5 M14x1.5 M16x1.5 oil sight glass liquid level gauge indicator supplied GRAND-MFG 2

item	brass sight glasses
material	brass
O-Ring	Viton,FKM,NBR, Aramid gasket and Copper seal
window	Natural Glass,Tempered Glass and Borosilicate Glass
Glass Thickness	2mm to 5 mm
Reflectors	Stainless Steel 304 Reflector (Any type you can chose with reflector or without Reflector, You also can add float ball.)
Resist Tempreature Range	.-30'C TO 120'C
Pressure Range	5-10 Bar(0.5MPa to 1 MPa).
Thread type	NPT,NPTF,UNC,UNF,Metric and BSP(G thread)


item	brass machined parts
material	Brass,Copper and Bronze.
finish	Natural,Polished,Nickel plated and Chrome Plated
Processing	Brass Hot Forged,Bronze Sand Castings,CNC machining, CNC turning or CNC Lathing,Milling,Sandblasted
Dimension Tolerance:	CNC Lathe +/-0.01 mm. General Lathe +/-0.1 to 0.2 mm

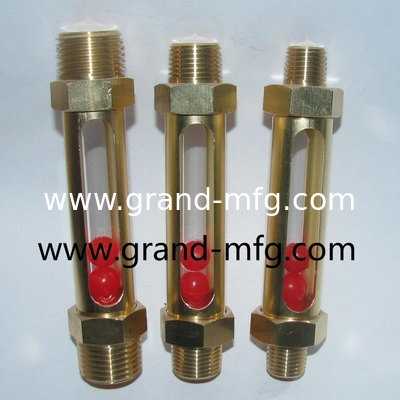

Metric thread M12x1.5 M14x1.5 M16x1.5 oil sight glass liquid level gauge indicator supplied GRAND-MFG 3

item	aluminum sight glasses
material body	Aluminum 6061 T6/Aluminum 6063
O-Ring	Viton,FKM,NBR, Aramid gasket and Copper seal
window	Natural Glass,Tempered Glass and Borosilicate Glass
Glass Thickness	2mm to 5 mm
Reflectors	Stainless Steel 304 Reflector (Any type you can chose with reflector or without Reflector, You also can add float ball.)
Resist Tempreature Range	.-30'C TO 120'C
Pressure Range	5-10 Bar(0.5MPa to 1 MPa).
Thread type	UNC,UNF,Metric and BSP(G thread)
size	Below you will get the size you wanted.Another size is okay. OEM are welcome.
Usage	Pump,Oil Receivers,Gearboxes,Speed Reducer,Compressor and Power Transimission.

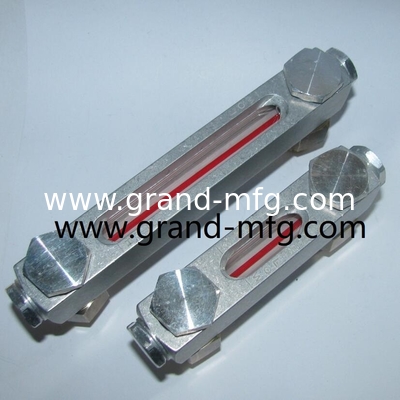

Metric thread M12x1.5 M14x1.5 M16x1.5 oil sight glass liquid level gauge indicator supplied GRAND-MFG 4
