Home /Products/Hydraulic Oil Level Gauge/brass drum sight gauges with Npt thread 1/2",3/4",1",1-1/4",1-1/2",2" (BSP,G thread,Metric thread are available)

brass drum sight gauges with Npt thread 1/2",3/4",1",1-1/4",1-1/2",2" (BSP,G thread,Metric thread are available)

20pcs
MOQ
$ 0.8-10 pcs
Price
brass drum sight gauges with Npt thread 1/2",3/4",1",1-1/4",1-1/2",2" (BSP,G thread,Metric thread are available)
Features Gallery Product Description Request A Quote
Features
Specifications
Material: Brass Hpb57-3
Tube: Quarts Glass
O-ring: Viton,FKM,NBR, Aramid Gasket And Copper Seal
Finish: Natural
Basic Infomation
Place of Origin: China
Brand Name: grandmfg
Model Number: 1/2",3/4",1",11/2",11/4",13/4",2"
Payment & Shipping Terms
Packaging Details: exporting packaging or as required.
Delivery Time: 45 work days
Payment Terms: T/T
Supply Ability: 20000/month
Product Description

Housing: Brass Tube .

Tube: Real glass tube.

O-Ring and flat gaskets: NBR Rubber.

Thread szie: M10x1, M12x1.5, M14x1.5, M16x1.5, G1/4”, G3/8”, G1/2”, NPT1/4, NPT3/8, NPT1/2”

Temperature resistant: -20’C to 120 ‘C. / 0’F to 260 ‘F

Distance of two bolts: 80mm to 600mm

Usage: Pump, Thin-wall container, Radiator, Hydraulic reservoir, receivers, Gearboxes, Speed Reducer, Compressor and Power Transmission.



brass drum sight gauges with Npt thread 1/2",3/4",1",1-1/4",1-1/2",2" (BSP,G thread,Metric thread are available) 0

brass drum sight gauges with Npt thread 1/2",3/4",1",1-1/4",1-1/2",2" (BSP,G thread,Metric thread are available) 1

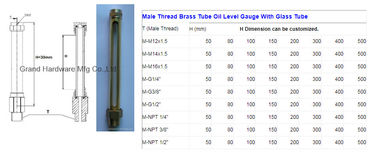

height(mm) 50 80 100 150 200 300 400 500







Contact us please by email (grandmfg@vip.126.com)for checking our stocks and confirming the specificationgs.Also,hope to get your  suggestions for improvement.



Grace

sales department
