Home /Products/Hydraulic Oil Level Gauge/3/4 inch brass check oil level gauge for horizontal drum - Npt thread,BSP,G thread,Metric thread available

3/4 inch brass check oil level gauge for horizontal drum - Npt thread,BSP,G thread,Metric thread available

20pcs
MOQ
$ 0.8-10 pcs
Price
3/4 inch brass check oil level gauge for horizontal drum - Npt thread,BSP,G thread,Metric thread available
Features Gallery Product Description Request A Quote
Features
Specifications
Material: Brass Hpb57-3
Tube: Quarts Glass
O-ring: Viton,FKM,NBR, Aramid Gasket And Copper Seal
Finish: Natural
Basic Infomation
Place of Origin: China
Brand Name: grandmfg
Certification: ISO9001
Model Number: 1/2",3/4",1",11/2",11/4",13/4",2"
Payment & Shipping Terms
Packaging Details: exporting packaging or as required.
Delivery Time: 45 work days
Payment Terms: T/T
Supply Ability: 20000/month
Product Description

Grand Hardware Manufacturing Co., Ltd

& Yuhuan Yize Machinery Factory is a precision metal parts supplier.
--Professional OEM metal parts supplier in many categories.such as CNC machining parts,CNC turning parts,precision metal parts,stamping parts and punching parts.

--Especially professional in oil level sight glass,fused windows sights,breather vent plugs,wheel bolts,hydraulic adapters and hydraulic steel oil drain plugs.





Housing: Brass Tube .

Tube: Real glass tube.

O-Ring and flat gaskets: NBR Rubber.

Thread szie: M10x1, M12x1.5, M14x1.5, M16x1.5, G1/4”, G3/8”, G1/2”, NPT1/4, NPT3/8, NPT1/2”

Temperature resistant: -20’C to 120 ‘C. / 0’F to 260 ‘F

Distance of two bolts: 80mm to 600mm

Usage: Pump, Thin-wall container, Radiator, Hydraulic reservoir, receivers, Gearboxes, Speed Reducer, Compressor and Power Transmission.

housing brass tube
tube real glass tube
O-ring and flat gaskets NBR rubber
thread size M10x1, M12x1.5, M14x1.5, M16x1.5, G1/4”, G3/8”, G1/2”, NPT1/4, NPT3/8, NPT1/2”
temperature resistant -20’C to 120 ‘C. / 0’F to 260 ‘F
distance of two blts 80MM to 600Mm



3/4 inch brass check oil level gauge for horizontal drum - Npt thread,BSP,G thread,Metric thread available 0

3/4 inch brass check oil level gauge for horizontal drum - Npt thread,BSP,G thread,Metric thread available 1

3/4 inch brass check oil level gauge for horizontal drum - Npt thread,BSP,G thread,Metric thread available 2

3/4 inch brass check oil level gauge for horizontal drum - Npt thread,BSP,G thread,Metric thread available 3

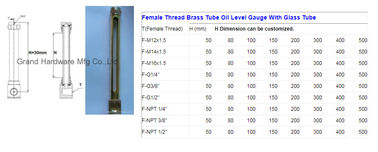

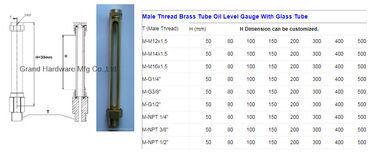

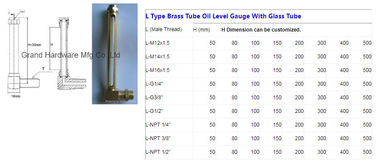

item mm mm mm mm mm mm mm mm
height 50 80 100 150 200 300 400 500







other parts we supplied:

3/4 inch brass check oil level gauge for horizontal drum - Npt thread,BSP,G thread,Metric thread available 4

3/4 inch brass check oil level gauge for horizontal drum - Npt thread,BSP,G thread,Metric thread available 5





Just please contact us by email (grandmfg@vip.126.com) for more details of specifications.



Grace

sales department
