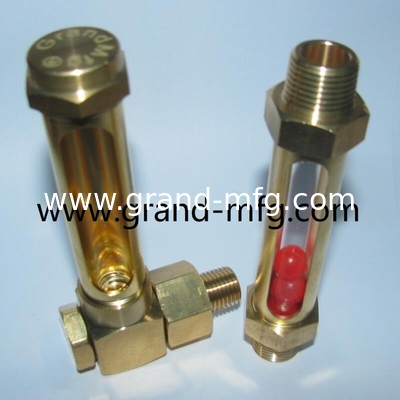

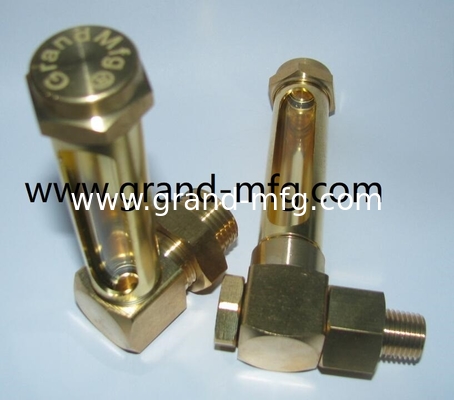

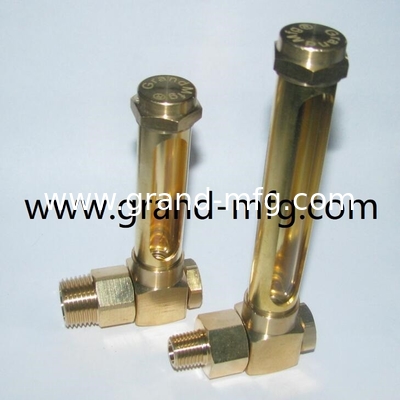

NPT pipe thread 1/2 inch oil sight gauge for horizontal drum,male thread

1000pcs
MOQ
$ 0.8-10 pcs
Price
NPT pipe thread 1/2 inch oil sight gauge for horizontal drum,male thread
Features Gallery Product Description Request A Quote
Features
Specifications
Material: Customized
Thread: BSP,NPT,Metric Thread
Finish: Natural
Basic Infomation
Place of Origin: China
Brand Name: grandmfg
Model Number: 1/2",3/4",1",11/2",11/4",13/4",2"
Payment & Shipping Terms
Packaging Details: exporting packaging
Delivery Time: 45 work days
Payment Terms: T/T
Supply Ability: 100000/month
Product Description

Grand Hardware Manufacturing Co., Ltd

& Yuhuan Yize Machinery Factory is a precision metal parts supplier.
--Professional OEM metal parts supplier in many categories.such as CNC machining parts,

CNC turning parts,precision metal parts,stamping parts and punching parts.

--Especially professional in oil level sight glass,fused windows sights,breather vent plugs,

wheel bolts,hydraulic adapters and hydraulic steel oil drain plugs.

--We focus on the below business:
1.High gloss cutting drill, high speed CNC and digital control processing.
2. Both metal and plastic piece parts laser radium carving.
3. Exterior parts stamping, processing and other piece parts machining.
4. Pieces of exterior anoding, wiring drawing and printing and other surface treatments
5.+/-0.01mm tolerance will be controlled.

--We supply the metal parts in compliance with customized designs by material of:
Stainless steel, mid steel, Aluminum alloy, Copper and brass, Bronze, Hardened metal.
--Finish parts surface treatment: Zinc plating, Zinc-Nickel plating, Anodising and Etc.

--We can realize the customers' idea and design perfectly by our experienced work and keep

confidentially meanwhile.
--Customized drawing are welcome.
--OEM metal work is welcome.
--Both the delivery time and service will exceed your expectation.

Any more qustion,Please contact us for more details about our production capacity which

you concern!

Our job is to make your job easier!

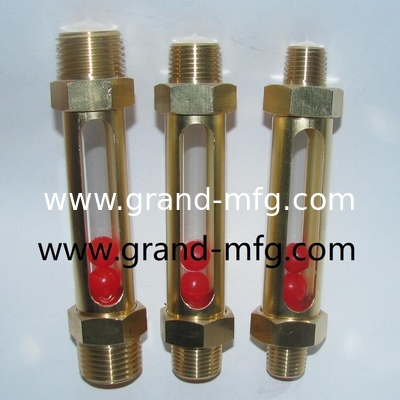

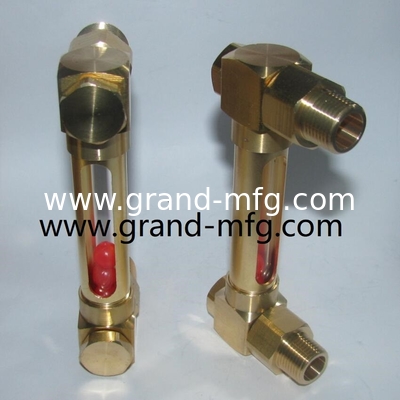

item brass sight gauges
Housing brass tube
tube quartz glass tube
O-Ring and flat gaskets NBR Rubber
Thread szie M10x1, M12x1.5, M14x1.5, M16x1.5, G1/4”, G3/8”,
G1/2”, NPT1/4, NPT3/8, NPT1/2”
Temperature resistant : -20’C to 120 ‘C. / 0’F to 260 ‘F
Distance of two bolts 80mm to 600mm

NPT pipe thread 1/2 inch oil sight gauge for horizontal drum,male thread 0

item Hydraulic oil level indicator
Housing Aluminum alloy housing and inside thermoplastic (PC)
O-Ring and flat gaskets NBR Rubber
Reflector aluminum with printed white
Bolt M10 Hexagon nut and washer in galvanized steel
Temperature resistant : -20’C to 100 ‘C. / 0’F to 220 ‘F
Distance of two bolts 50mm to 500mm
Usage Thin-wall container, Radiator, Hydraulic reservoir and receivers.



NPT pipe thread 1/2 inch oil sight gauge for horizontal drum,male thread 1

NPT pipe thread 1/2 inch oil sight gauge for horizontal drum,male thread 2





item brass breather vent plugs
material brass or aluminum
Thread Type BSP,Metric,NPT
finish Natural and Nickel Plated
size Any Size OEM are welcome.
Work Pressure 0.005 MPa to M 0.03 Mpa
Tempture Range : -30 Cent degree to 130 Cent degree.
Pressure Range 5-10 Bar(0.5MPa to 1 MPa).
Thread type Pump, Thin-wall container, Radiator, Hydraulic reservoir, receivers,
Gearboxes, Speed Reducer, Compressor and Power Transmission.



NPT pipe thread 1/2 inch oil sight gauge for horizontal drum,male thread 3





item brass sight glasses
material brass
O-Ring Viton,FKM,NBR, Aramid gasket and Copper seal
window Natural Glass,Tempered Glass and Borosilicate Glass
Glass Thickness 2mm to 5 mm
Reflectors Stainless Steel 304 Reflector

(Any type you can chose with reflector or without Reflector, You also can add float ball.)
Resist Tempreature Range .-30'C TO 120'C
Pressure Range 5-10 Bar(0.5MPa to 1 MPa).
Thread type NPT,NPTF,UNC,UNF,Metric and BSP(G thread)

NPT pipe thread 1/2 inch oil sight gauge for horizontal drum,male thread 4

item SS sight glasses
material Stainless steel 304,Stainless steel 304L,Stainless Steel 316,
Stainless steel 316L
O-Ring Viton,FKM,NBR, Aramid gasket and Copper seal
window Natural Glass,Tempered Glass and Borosilicate Glass
Glass Thickness 2mm to 5 mm
Reflectors Stainless Steel 304 Reflector

(Any type you can chose with reflector or without Reflector, You also can add float ball.)
Resist Tempreature Range .-30'C TO 120'C
Pressure Range 5-10 Bar(0.5MPa to 1 MPa).
Thread type NPT,NPTF,UNC,UNF,Metric and BSP(G thread)

NPT pipe thread 1/2 inch oil sight gauge for horizontal drum,male thread 5

Item plastic sight glasses
Material Plastic PMMA
Window plastic
Reflectors Plastic PMMA
Resist Tempreature Range :-30'C to 70'C
Pressure Range 1-5 Bar(0.1MPa to 0.5 MPa).
Size Below you will get the size you wanted.Another size is okay.OEM are welcome.
Usage Pump,Oil Receivers,Gearboxes,Speed Reducer,Compressor and Power Transimission.



NPT pipe thread 1/2 inch oil sight gauge for horizontal drum,male thread 6





item steel plugs
material Carbon Steel and Al 6061
Thread Type BSP,Metric,NPT
finish Steel Zinc plated,Aluminum Natural and Aluminum Anodizing
size Any Size OEM are welcome.
Usage Hydraulic equipements, Gearboxes,Speed Reducer,Cars,Automotive,
Truck,Pump and Power Transimission.
1)Wihtstand hight pressure hydraulic plugs.

2)Covering standards of DIN, SAE, ISO, JIS and BS etc.

NPT pipe thread 1/2 inch oil sight gauge for horizontal drum,male thread 7NPT pipe thread 1/2 inch oil sight gauge for horizontal drum,male thread 8







Just please contact us for checking our stocks and confirming the specifications.
