Hydraulic Oil Level Gauge for Zinc-Nickel Plating Surface Treatment Grand Hardware Manufacturing Co. Ltd

1000pcs
MOQ
$ 0.8-10 pcs
Price
Hydraulic Oil Level Gauge for Zinc-Nickel Plating Surface Treatment Grand Hardware Manufacturing Co. Ltd
Features Gallery Product Description Request A Quote
Features
Specifications
Material: Brass
Window: Natural Glass
Glass Thickness: 2mm-5mm
Basic Infomation
Place of Origin: China
Brand Name: grand-mfg
Model Number: 1/2",3/4",1",11/2",11/4",13/4",2"
Payment & Shipping Terms
Packaging Details: exporting packaging
Delivery Time: 45 work days
Payment Terms: T/T
Supply Ability: 100000/month
Product Description

Grand Hardware Manufacturing Co., Ltd
& Yuhuan Yize Machinery Factory is a precision metal parts supplier.
--Professional OEM metal parts supplier in many categories.such as CNC machining parts,

CNC turning parts,precision metal parts,stamping parts and punching parts.
--Especially professional in oil level sight glass,fused windows sights,breather vent plugs,

wheel bolts,hydraulic adapters and hydraulic steel oil drain plugs.
--We focus on the below business:
1.High gloss cutting drill, high speed CNC and digital control processing.
2. Both metal and plastic piece parts laser radium carving.
3. Exterior parts stamping, processing and other piece parts machining.
4. Pieces of exterior anoding, wiring drawing and printing and other surface treatments
5.+/-0.01mm tolerance will be controlled.
--We supply the metal parts in compliance with customized designs by material of:
Stainless steel, mid steel, Aluminum alloy, Copper and brass, Bronze, Hardened metal.
--Finish parts surface treatment: Zinc plating, Zinc-Nickel plating, Anodising and Etc.

--We can realize the customers' idea and design perfectly by our experienced work and
keep confidentially meanwhile.
--Customized drawing are welcome.
--OEM metal work is welcome.
--Both the delivery time and service will exceed your expectation.

Any more qustion,Please contact us for more details about our production capacity which you concern!
Our job is to make your job easier!

Hydraulic Oil Level Gauge for Zinc-Nickel Plating Surface Treatment Grand Hardware Manufacturing Co. Ltd 0Hydraulic Oil Level Gauge for Zinc-Nickel Plating Surface Treatment Grand Hardware Manufacturing Co. Ltd 1
Hydraulic Oil Level Gauge for Zinc-Nickel Plating Surface Treatment Grand Hardware Manufacturing Co. Ltd 2Hydraulic Oil Level Gauge for Zinc-Nickel Plating Surface Treatment Grand Hardware Manufacturing Co. Ltd 3

itemHydraulic oil level indicator
HousingAluminum alloy housing and inside thermoplastic (PC)
O-Ring and flat gasketsNBR Rubber
Reflectoraluminum with printed white
BoltM10 Hexagon nut and washer in galvanized steel
Temperature resistant: -20’C to 100 ‘C. / 0’F to 220 ‘F
Distance of two bolts50mm to 500mm
UsageThin-wall container, Radiator, Hydraulic reservoir and receivers.

Hydraulic Oil Level Gauge for Zinc-Nickel Plating Surface Treatment Grand Hardware Manufacturing Co. Ltd 4

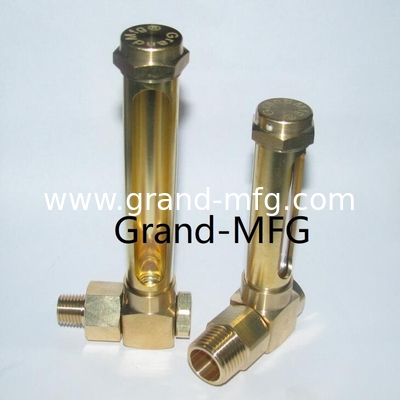

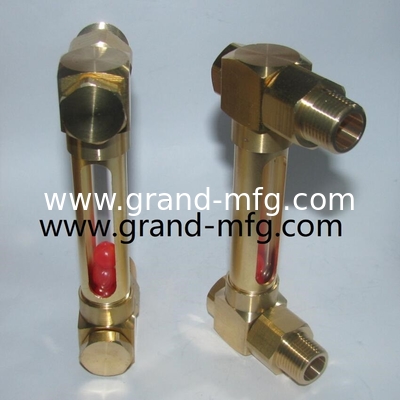

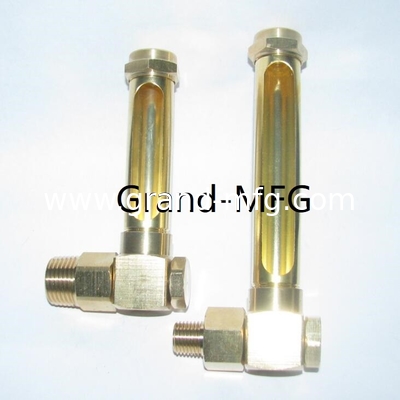

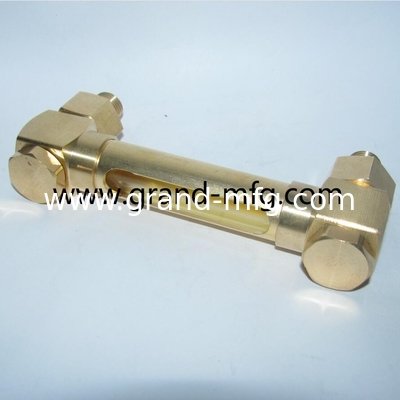

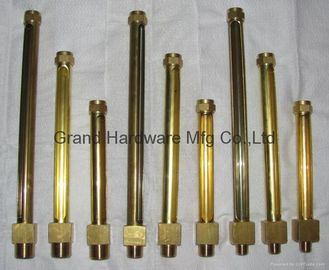

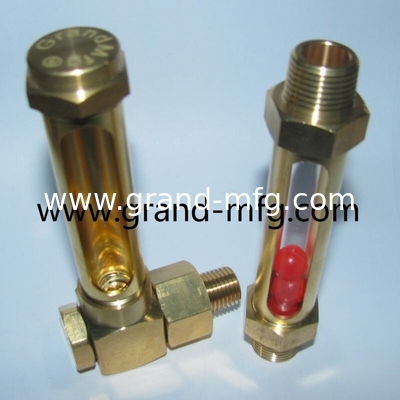

itembrass sight glasses
materialbrass
O-RingViton,FKM,NBR, Aramid gasket and Copper seal
windowNatural Glass,Tempered Glass and Borosilicate Glass
Glass Thickness2mm to 5 mm
ReflectorsStainless Steel 304 Reflector
(Any type you can chose with reflector or without Reflector, You also can add float ball.)
Resist Tempreature Range.-30'C TO 120'C
Pressure Range5-10 Bar(0.5MPa to 1 MPa).
Thread typeNPT,NPTF,UNC,UNF,Metric and BSP(G thread)

Hydraulic Oil Level Gauge for Zinc-Nickel Plating Surface Treatment Grand Hardware Manufacturing Co. Ltd 5


itemSS sight glasses
materialStainless steel 304,Stainless steel 304L,Stainless Steel 316,
Stainless steel 316L
O-RingViton,FKM,NBR, Aramid gasket and Copper seal
windowNatural Glass,Tempered Glass and Borosilicate Glass
Glass Thickness2mm to 5 mm
ReflectorsStainless Steel 304 Reflector
(Any type you can chose with reflector or without Reflector, You also can add float ball.)
Resist Tempreature Range.-30'C TO 120'C
Pressure Range5-10 Bar(0.5MPa to 1 MPa).
Thread typeNPT,NPTF,UNC,UNF,Metric and BSP(G thread)


Hydraulic Oil Level Gauge for Zinc-Nickel Plating Surface Treatment Grand Hardware Manufacturing Co. Ltd 6
