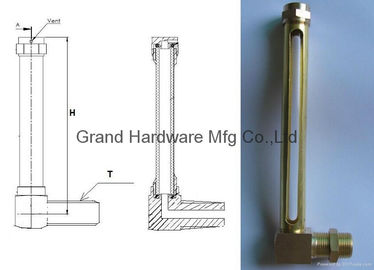

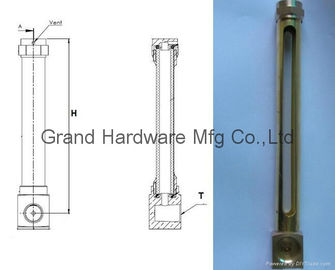

Home /Products/Hydraulic Oil Level Gauge/male thread NPT 1/4" Brass Tube Oil level gauge with quartz glass tube

male thread NPT 1/4" Brass Tube Oil level gauge with quartz glass tube

1000pcs
MOQ
$ 0.8-10 pcs
Price
male thread NPT 1/4" Brass Tube Oil level gauge with quartz glass tube
Features Gallery Product Description Request A Quote
Features
Specifications
Material: Brass And Natural Glass Tube
Finish: No Finishing
Thread: BSP,NPT,Metric Thread
Basic Infomation
Place of Origin: China
Brand Name: grandmfg
Model Number: 1/2",3/4",1",11/2",11/4",13/4",2"
Payment & Shipping Terms
Packaging Details: exporting packaging
Delivery Time: 45 work days
Payment Terms: T/T
Supply Ability: 100000/month
Product Description

Brass Tube Oil level Indicator/Oil level Gauge with glass tube.Plastic level indicator/gauge

Housing: Brass Tube .

Tube: Real glass tube.

O-Ring and flat gaskets: NBR Rubber.

Thread szie: M10x1, M12x1.5, M14x1.5, M16x1.5, G1/4”, G3/8”, G1/2”, NPT1/4, NPT3/8, NPT1/2”

Temperature resistant: -20’C to 120 ‘C. / 0’F to 260 ‘F

Distance of two bolts: 80mm to 600mm

Usage: Pump, Thin-wall container, Radiator, Hydraulic reservoir, receivers, Gearboxes, Speed Reducer, Compressor and Power Transmission.

item sight glasses,oil gauges
oil drain plugs,steel plugs
breather vent plugs
auto radiator parts
magnetic drain plugs
precision machined parts(brass,steel,stainless steel,aluminum)
hydraulic steel fittings
OEM and ODM business welcome.
website www.grandmfgcn.com
sales department Grace
Email grandmfg@vip.126.com







item brass sight gauges
Housing brass tube
tube quartz glass tube
O-Ring and flat gaskets NBR Rubber
Thread szie M10x1, M12x1.5, M14x1.5, M16x1.5, G1/4”, G3/8”,
G1/2”, NPT1/4, NPT3/8, NPT1/2”
Temperature resistant : -20’C to 120 ‘C. / 0’F to 260 ‘F
Distance of two bolts 80mm to 600mm



male thread NPT 1/4" Brass Tube Oil level gauge with quartz glass tube 0male thread NPT 1/4" Brass Tube Oil level gauge with quartz glass tube 1

item Hydraulic oil level indicator
Housing Aluminum alloy housing and inside thermoplastic (PC)
O-Ring and flat gaskets NBR Rubber
Reflector aluminum with printed white
Bolt M10 Hexagon nut and washer in galvanized steel
Temperature resistant : -20’C to 100 ‘C. / 0’F to 220 ‘F
Distance of two bolts 50mm to 500mm
Usage Thin-wall container, Radiator, Hydraulic reservoir and receivers.



item plastic sight glasses
material plastic
seal NBR
Reflectors Plastic PMMA
Resist Tempreature Range : -30'C to 70'C
Pressure Range 5-10 Bar(0.5MPa to 1 MPa).
Thread type Metric and BSP(G thread)

male thread NPT 1/4" Brass Tube Oil level gauge with quartz glass tube 2



item brass sight glasses
material brass
O-Ring Viton,FKM,NBR, Aramid gasket and Copper seal
window Natural Glass,Tempered Glass and Borosilicate Glass
Glass Thickness 2mm to 5 mm
Reflectors Stainless Steel 304 Reflector

(Any type you can chose with reflector or without Reflector, You also can add float ball.)
Resist Tempreature Range .-30'C TO 120'C
Pressure Range 5-10 Bar(0.5MPa to 1 MPa).
Thread type NPT,NPTF,UNC,UNF,Metric and BSP(G thread)



male thread NPT 1/4" Brass Tube Oil level gauge with quartz glass tube 3male thread NPT 1/4" Brass Tube Oil level gauge with quartz glass tube 4



item Radiator Coolant Filler Necks & Cap
material SUS304,Steel,aluminum and brass.
Main area used Various brands of car,truck,etc.
Withstand Max Pressure 0.6MPa,0.9MPa and 1.1MPa
All goods are strictly monitored and inspected from production to delivery.
Transportation: Container Freight & International Multimodal Transport
Packing: General exporting package or according to customers' requirements.



male thread NPT 1/4" Brass Tube Oil level gauge with quartz glass tube 5
