M16 x 1.5 Metric thread Brass tube oil level gauge with quartz glass male thread connection gear box oil level indicator

50
MOQ
M16 x 1.5 Metric thread Brass tube oil level gauge with quartz glass male thread connection gear box oil level indicator
Features Gallery Product Description Request A Quote
Features
Specifications
Material: Brass Hpb57-3
Finish: No Finishing
Thread: BSP,NPT,Metric Thread
Basic Infomation
Place of Origin: China
Brand Name: grand-mfg
Model Number: 1/2",3/4",1",11/2",11/4",13/4",2"
Payment & Shipping Terms
Packaging Details: pallets and pallets
Product Description

Brass Tube Oil level indicator/oil level gauge with glass tube

Housing: Brass Tube.

Tube: Real glass tube.

O-Ring and flat gaskets: NBR Rubber.

Thread size: M10x1, M12x1.5, M14x1.5, M16x1.5, G1/4”, G3/8”, G1/2”, NPT1/4, NPT3/8, NPT1/2”

Temperature resistant: -20’C to 120 ‘C. / 0’F to 260 ‘F

High of two bolt: 80mm to 600mm

Usage: Pump, Thin-wall container, Radiator, Hydraulic reservoir, receivers, Gearboxes, Speed Reducer,

Compressor and Power Transmission.

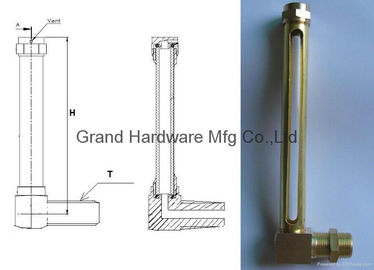

M16 x 1.5 Metric thread Brass tube oil level gauge with quartz glass male thread connection gear box oil level indicator 0M16 x 1.5 Metric thread Brass tube oil level gauge with quartz glass male thread connection gear box oil level indicator 1

item brass sight gauges
Housing brass tube
tube real glass tube
O-Ring and flat gaskets NBR Rubber
Thread szie M10x1, M12x1.5, M14x1.5, M16x1.5, G1/4”, G3/8”,
G1/2”, NPT1/4, NPT3/8, NPT1/2”
Temperature resistant : -20’C to 120 ‘C. / 0’F to 260 ‘F
Distance of two bolts 80mm to 600mm

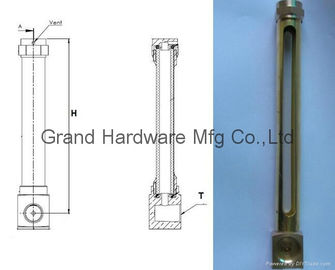

M16 x 1.5 Metric thread Brass tube oil level gauge with quartz glass male thread connection gear box oil level indicator 2M16 x 1.5 Metric thread Brass tube oil level gauge with quartz glass male thread connection gear box oil level indicator 3M16 x 1.5 Metric thread Brass tube oil level gauge with quartz glass male thread connection gear box oil level indicator 4

M16 x 1.5 Metric thread Brass tube oil level gauge with quartz glass male thread connection gear box oil level indicator 5M16 x 1.5 Metric thread Brass tube oil level gauge with quartz glass male thread connection gear box oil level indicator 6M16 x 1.5 Metric thread Brass tube oil level gauge with quartz glass male thread connection gear box oil level indicator 7



item SS sight glasses
material Stainless steel 304,Stainless steel 304L,Stainless Steel 316,
Stainless steel 316L
O-Ring Viton,FKM,NBR, Aramid gasket and Copper seal
window Natural Glass,Tempered Glass and Borosilicate Glass
Glass Thickness 2mm to 5 mm
Reflectors Stainless Steel 304 Reflector

(Any type you can chose with reflector or without Reflector, You also can add float ball.)
Resist Tempreature Range .-30'C TO 120'C
Pressure Range 5-10 Bar(0.5MPa to 1 MPa).
Thread type NPT,NPTF,UNC,UNF,Metric and BSP(G thread)

M16 x 1.5 Metric thread Brass tube oil level gauge with quartz glass male thread connection gear box oil level indicator 8



M16 x 1.5 Metric thread Brass tube oil level gauge with quartz glass male thread connection gear box oil level indicator 9
