M10X1 M10X1.5 Male Thread Hydraulic oil level indicator with level marks custom available Metric thread oil level gauge

50pcs
MOQ
$ 0.8-2 pcs
Price
M10X1 M10X1.5 Male Thread Hydraulic oil level indicator with level marks custom available Metric thread oil level gauge
Features Gallery Product Description Request A Quote
Features
Specifications
More Size: Www.grandmfgcn.com
Packaging: Boxes,cartons,pallets
Lead Time: 45days
Highlight:

oil level indicator

,

oil level gauge

,

level gauge
Basic Infomation
Place of Origin: China
Brand Name: grandmfg
Payment & Shipping Terms
Packaging Details: standard export packaging
Delivery Time: 45days
Payment Terms: T/T
Supply Ability: 50000pcs/month
Product Description

Hydraulic plastic Oil level indicator, hydraulic plastic oil level gauge

Housing: Plastic

O-Ring and flat gaskets: NBR Rubber.

Bolt: M10 Hexagon nut and washer in galvanized steel.

Temperature resistant: -20’C to 100 ‘C. / 0’F to 220 ‘F

High of two bolt: 50mm to 500mm

Usage: Pump, Thin-wall container, Radiator, Hydraulic reservoir, receivers, Gearboxes, Speed Reducer,

Compressor and Power Transmission.

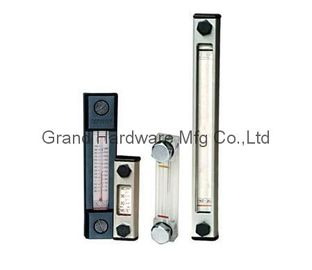

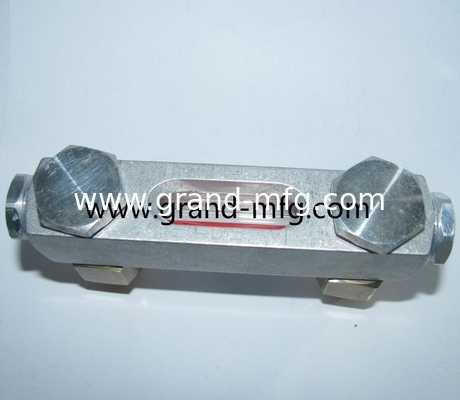

M10X1 M10X1.5 Male Thread Hydraulic oil level indicator with level marks custom available Metric thread oil level gauge 0M10X1 M10X1.5 Male Thread Hydraulic oil level indicator with level marks custom available Metric thread oil level gauge 1

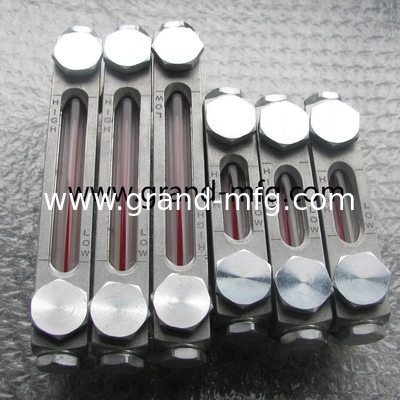

item Hydraulic oil level indicator
Housing Aluminum alloy housing and inside thermoplastic (PC)
O-Ring and flat gaskets NBR Rubber
Reflector aluminum with printed white
Bolt M10 Hexagon nut and washer in galvanized steel
Temperature resistant : -20’C to 100 ‘C. / 0’F to 220 ‘F
Distance of two bolts 50mm to 500mm
Usage

Thin-wall container, Radiator, Hydraulic reservoir and receivers.

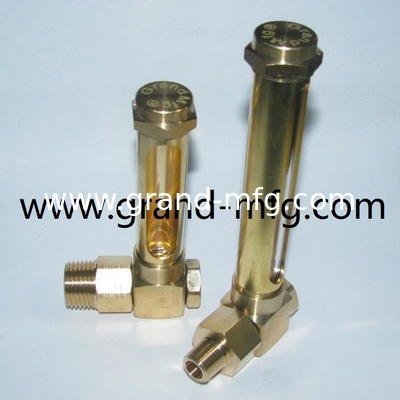

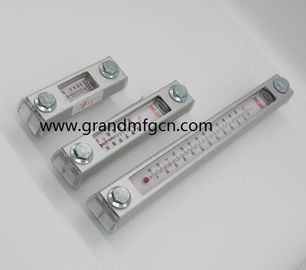

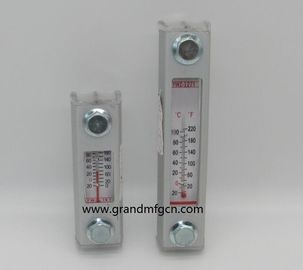

M10X1 M10X1.5 Male Thread Hydraulic oil level indicator with level marks custom available Metric thread oil level gauge 2M10X1 M10X1.5 Male Thread Hydraulic oil level indicator with level marks custom available Metric thread oil level gauge 3M10X1 M10X1.5 Male Thread Hydraulic oil level indicator with level marks custom available Metric thread oil level gauge 4

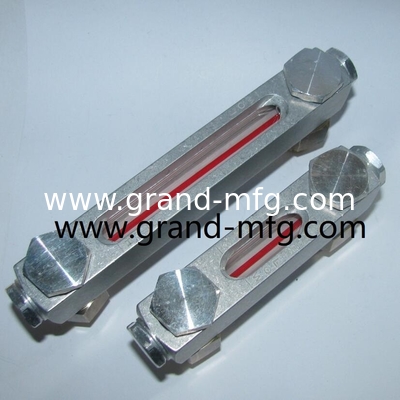

M10X1 M10X1.5 Male Thread Hydraulic oil level indicator with level marks custom available Metric thread oil level gauge 5

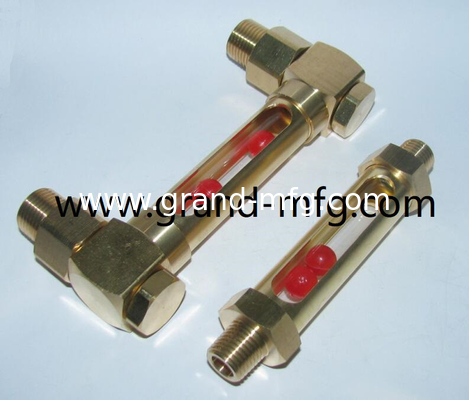

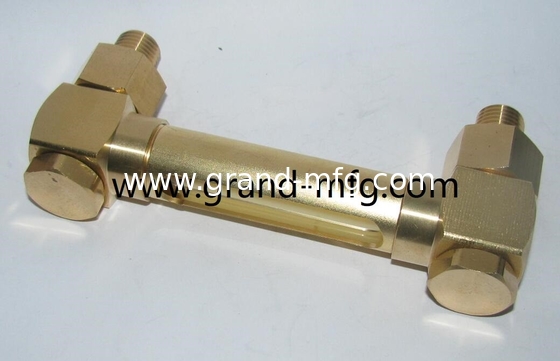

item brass sight gauges
Housing brass tube
tube quartz glass tube
O-Ring and flat gaskets NBR Rubber
Thread szie M10x1, M12x1.5, M14x1.5, M16x1.5, G1/4”, G3/8”,
G1/2”, NPT1/4, NPT3/8, NPT1/2”
Temperature resistant : -20’C to 120 ‘C. / 0’F to 260 ‘F
Distance of two bolts 80mm to 600mm

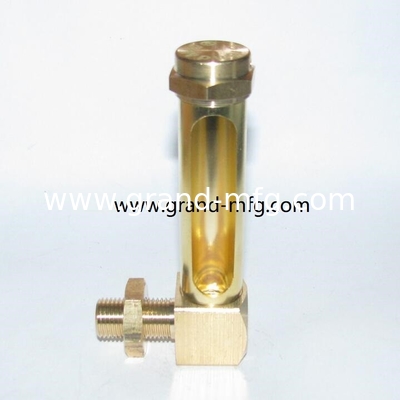

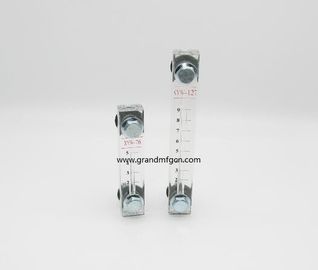

M10X1 M10X1.5 Male Thread Hydraulic oil level indicator with level marks custom available Metric thread oil level gauge 6M10X1 M10X1.5 Male Thread Hydraulic oil level indicator with level marks custom available Metric thread oil level gauge 7



item SS sight glasses
material Stainless steel 304,Stainless steel 304L,Stainless Steel 316,
Stainless steel 316L
O-Ring Viton,FKM,NBR, Aramid gasket and Copper seal
window Natural Glass,Tempered Glass and Borosilicate Glass
Glass Thickness 2mm to 5 mm
Reflectors Stainless Steel 304 Reflector

(Any type you can chose with reflector or without Reflector, You also can add float ball.)
Resist Tempreature Range .-30'C TO 120'C
Pressure Range 5-10 Bar(0.5MPa to 1 MPa).
Thread type NPT,NPTF,UNC,UNF,Metric and BSP(G thread)



M10X1 M10X1.5 Male Thread Hydraulic oil level indicator with level marks custom available Metric thread oil level gauge 8M10X1 M10X1.5 Male Thread Hydraulic oil level indicator with level marks custom available Metric thread oil level gauge 9M10X1 M10X1.5 Male Thread Hydraulic oil level indicator with level marks custom available Metric thread oil level gauge 10

item brass sight glasses
material brass
O-Ring Viton,FKM,NBR, Aramid gasket and Copper seal
window Natural Glass,Tempered Glass and Borosilicate Glass
Glass Thickness 2mm to 5 mm
Reflectors Stainless Steel 304 Reflector

(Any type you can chose with reflector or without Reflector, You also can add float ball.)
Resist Tempreature Range .-30'C TO 120'C
Pressure Range 5-10 Bar(0.5MPa to 1 MPa).
Thread type NPT,NPTF,UNC,UNF,Metric and BSP(G thread)



M10X1 M10X1.5 Male Thread Hydraulic oil level indicator with level marks custom available Metric thread oil level gauge 11M10X1 M10X1.5 Male Thread Hydraulic oil level indicator with level marks custom available Metric thread oil level gauge 12M10X1 M10X1.5 Male Thread Hydraulic oil level indicator with level marks custom available Metric thread oil level gauge 13



item aluminum sight glasses
material body Aluminum 6061 T6/Aluminum 6063
O-Ring Viton,FKM,NBR, Aramid gasket and Copper seal
window Natural Glass,Tempered Glass and Borosilicate Glass
Glass Thickness 2mm to 5 mm
Reflectors Stainless Steel 304 Reflector
(Any type you can chose with reflector or without Reflector, You also can add float ball.)
Resist Tempreature Range .-30'C TO 120'C
Pressure Range 5-10 Bar(0.5MPa to 1 MPa).
Thread type UNC,UNF,Metric and BSP(G thread)
size Below you will get the size you wanted.Another size is okay.
OEM are welcome.
Usage Pump,Oil Receivers,Gearboxes,Speed Reducer,Compressor and Power Transimission.
