Home /Products/Brass Oil Sight Glass/male Metric thread M22*1.5 Brass Fluid level sight glass with reflector and natural glass

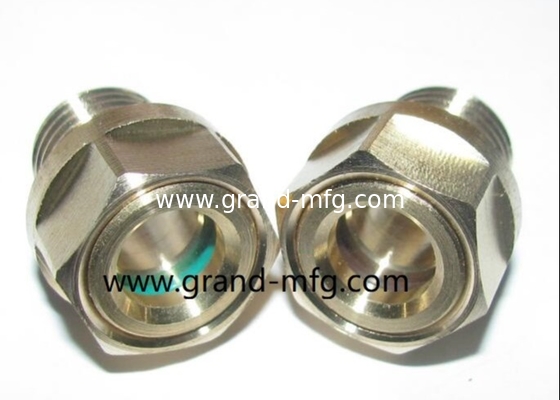

male Metric thread M22*1.5 Brass Fluid level sight glass with reflector and natural glass

1000pcs
MOQ
$ 0.8-10 pcs
Price
male Metric thread M22*1.5 Brass Fluid level sight glass with reflector and natural glass
Features Gallery Product Description Request A Quote
Features
Specifications
Material: Brass,steel,plastic,stainless Steel
Connection: Thread
Finish: As Required
Highlight:

sight glass

,

oil level sight gauge

,

oil level indicator
Basic Infomation
Place of Origin: China
Brand Name: grand-mfg
Certification: ISO9001
Model Number: M10,M16,M20,M22,M26,M27,M30,M33,M42,M60
Payment & Shipping Terms
Packaging Details: exporting packaging or as required.
Delivery Time: 15 work days
Payment Terms: T/T
Supply Ability: 50000/month
Product Description

GrandMfg® oil level sight glass

Oil level Sight glasses, sight gauge, sight gage, oil level indicator, liquid sight glass, sight window, view ports,

male thread sight glasses

Body material: aluminum, brassPCPPMA and steel

Glass: Real glass 2 mm to 5 mm thickness.

O Ring: Viton O rings

Size: M10 to M42, 1/2 inch to 2 inch

Thread Type: Meter thread, BSP, NPT

Operate Temperature: -20 cent degree to 120 cent degree

Operate Pressure: 5-10 Bar or 0.5MPa to 1 MPa.

MOQ: 2000 Pcs each size

Delivery time: 20 days.

Payment: T/T

Usage: Pump Gearboxes, Speed Reducer, Compressor and Power Transmission.

Different company have different requirements, OEM Service is welcome.

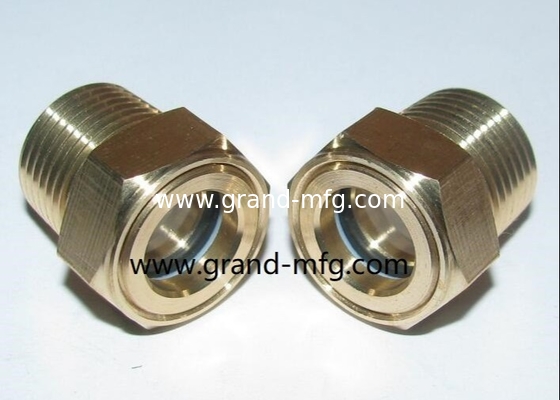

male Metric thread M22*1.5 Brass Fluid level sight glass with reflector and natural glass 0

item brass sight glasses
material brass
O-Ring Viton,FKM,NBR, Aramid gasket and Copper seal
window Natural Glass,Tempered Glass and Borosilicate Glass
Glass Thickness 2mm to 5 mm
Reflectors Stainless Steel 304 Reflector

(Any type you can chose with reflector or without Reflector, You also can add float ball.)
Resist Tempreature Range .-30'C TO 120'C
Pressure Range 5-10 Bar(0.5MPa to 1 MPa).
Thread type NPT,NPTF,UNC,UNF,Metric and BSP(G thread)

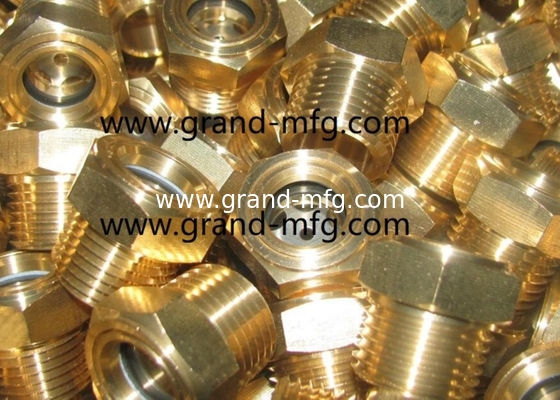

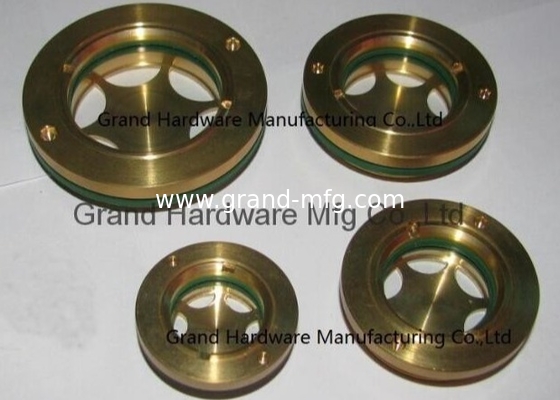

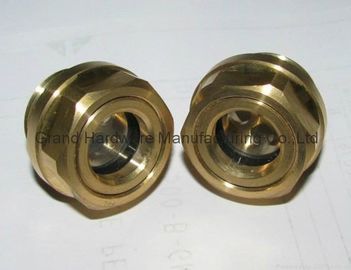

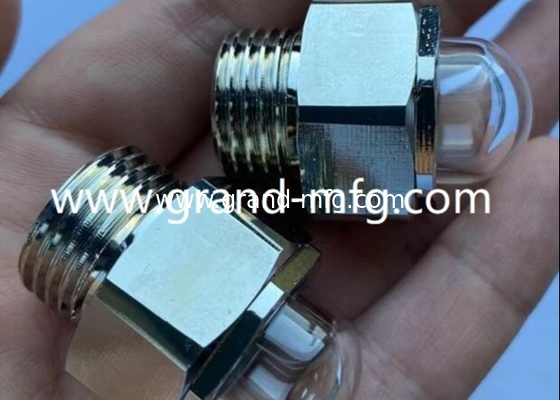

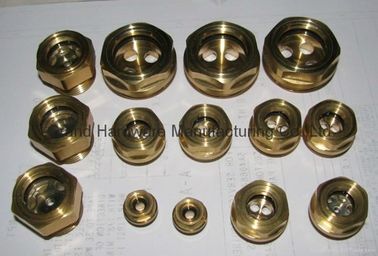

male Metric thread M22*1.5 Brass Fluid level sight glass with reflector and natural glass 1male Metric thread M22*1.5 Brass Fluid level sight glass with reflector and natural glass 2male Metric thread M22*1.5 Brass Fluid level sight glass with reflector and natural glass 3male Metric thread M22*1.5 Brass Fluid level sight glass with reflector and natural glass 4male Metric thread M22*1.5 Brass Fluid level sight glass with reflector and natural glass 5





GrandMfg® Aluminum Oil level sight glass window indicator plugs





item aluminum sight glasses
material body Aluminum 6061 T6/Aluminum 6063
O-Ring Viton,FKM,NBR, Aramid gasket and Copper seal
window Natural Glass,Tempered Glass and Borosilicate Glass
Glass Thickness 2mm to 5 mm
Reflectors Stainless Steel 304 Reflector
(Any type you can chose with reflector or without Reflector, You also can add float ball.)
Resist Tempreature Range .-30'C TO 120'C
Pressure Range 5-10 Bar(0.5MPa to 1 MPa).
Thread type UNC,UNF,Metric and BSP(G thread)
size Below you will get the size you wanted.Another size is okay.
OEM are welcome.
Usage Pump,Oil Receivers,Gearboxes,Speed Reducer,Compressor and Power Transimission.

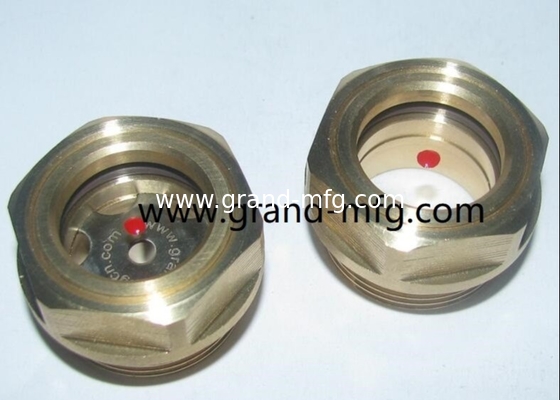

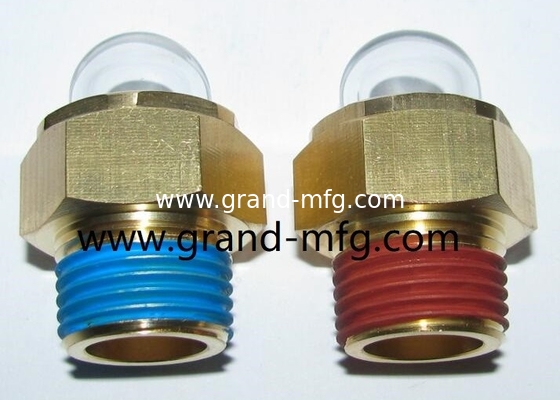

male Metric thread M22*1.5 Brass Fluid level sight glass with reflector and natural glass 6male Metric thread M22*1.5 Brass Fluid level sight glass with reflector and natural glass 7





GrandMfg® stainless Steel Oil level sight glass





item SS sight glasses
material Stainless steel 304,Stainless steel 304L,Stainless Steel 316,
Stainless steel 316L
O-Ring Viton,FKM,NBR, Aramid gasket and Copper seal
window Natural Glass,Tempered Glass and Borosilicate Glass
Glass Thickness 2mm to 5 mm
Reflectors Stainless Steel 304 Reflector

(Any type you can chose with reflector or without Reflector, You also can add float ball.)
Resist Tempreature Range .-30'C TO 120'C
Pressure Range 5-10 Bar(0.5MPa to 1 MPa).
Thread type NPT,NPTF,UNC,UNF,Metric and BSP(G thread)





male Metric thread M22*1.5 Brass Fluid level sight glass with reflector and natural glass 8male Metric thread M22*1.5 Brass Fluid level sight glass with reflector and natural glass 9





GrandMfg®Brass Tube Oil level Indicator Gauge





item oil sight gauges
Housing brass tube
tube quartz glass tube
O-Ring and flat gaskets NBR Rubber
Thread szie M10x1, M12x1.5, M14x1.5, M16x1.5, G1/4”, G3/8”,
G1/2”, NPT1/4, NPT3/8, NPT1/2”
Temperature resistant : -20’C to 120 ‘C. / 0’F to 260 ‘F
Distance of two bolts 80mm to 600mm



male Metric thread M22*1.5 Brass Fluid level sight glass with reflector and natural glass 10
