Brass oil level sight glass BSP thread oil gauge for pumps air compressor gear unit brass oil levels liquid sight glass plugs for speed reducers

Product Description:

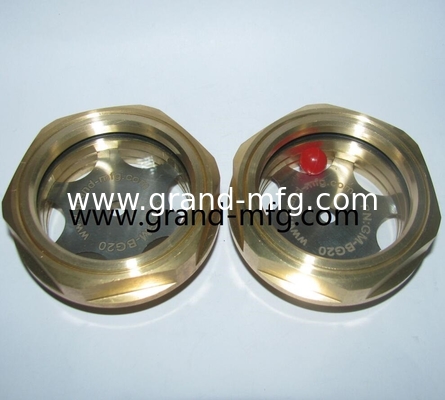

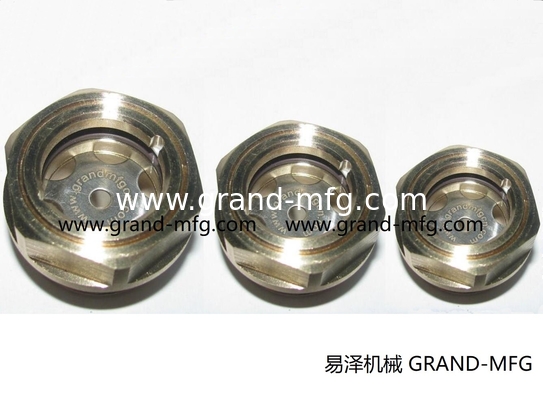

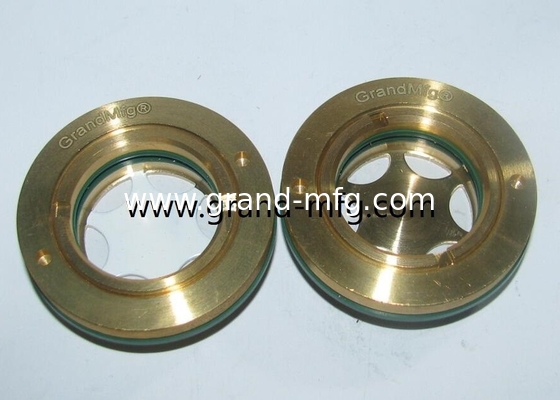

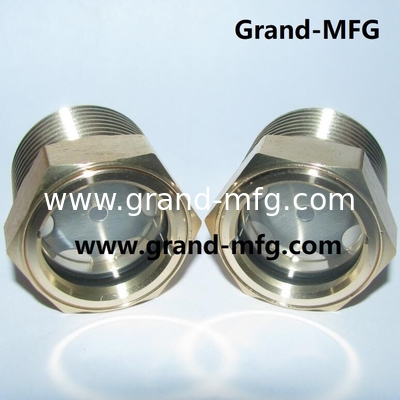

GrandMfg® Brass Oil Level Sight Glass Window Plugs

These plugs are constructed from solid brass for a sturdy design or rely on brass-free materials for the body. Different types of O-rings, such as Viton, FKM, FPM, NBR, and Aramid gasket, along with copper seals, may be added. The appropriate glass thickness takes range between 2mm and 8mm, while the glass type may be natural, tempered, or borosilicate. The choice of flat glass or domed glass is also available, and the plugs offer resist temperatures ranging from -40C to 180C while providing a pressure range of 5-50 Bar (1MPa and 5 MPa).

Threads include NPT, NPTF, UNC, UNF, metric, and BSP (G thread). Stainless steel 304 reflectors may be added, as well as same-as-body brass reflectors; float balls may also be included. Different sizes can be chosen, and OEMs are always welcome.

GrandMfg® Brass Oil Level Sight Glass Window Plugs are suitable for many applications, such as air pumps, vaccumm pumps, receivers, coolant receivoir, hydraulic tanks, gearboxes, speed reducers, gear units, worm gearboxes, helical gear boxes, variable speed motors, automotives worm gearboxes, compressors, and power transimission.

Features:

• Product Name: Brass Oil Sight Glass
• Finish: Natural
• Gauge Port Type: NPT
• Shape: Round
• Material: Brass
• Features: High Pressure, suitable for pumps, gear unit, and brass sight plug

Technical Parameters:

Applications:

The GrandMfg® GM-BG10 Brass Oil Sight Glass is a reliable and durable gear box unit that comes with a high pressure gauge port of 1/2" length with a NPT thread size of 1/8-27. It is manufactured from natural finish brass and is designed for long-term use in any industrial setting. This sight plug has excellent resistance against high pressure and corrosive environments, making it the ideal choice for industrial fluid and oil monitoring. The GM-BG10's compact design makes it perfect for tight spaces and its advanced features allow for precise monitoring of oil levels. This high quality brass oil sight glass is one of the most dependable and cost-effective solutions for monitoring oil levels in any gear box or gear unit.

Customization:

Support and Services:

We provide technical support and service for Brass Oil Sight Glass. Our support team is available 24/7 to answer any questions you may have about the product or help you troubleshoot any potential issues. We also offer step-by-step instructions to help guide you through the installation and setup process. If you ever need additional assistance, our customer service representatives are always on hand to help.

Packing and Shipping:

Packaging and Shipping of Brass Oil Sight Glass:

The Brass Oil Sight Glass will be securely packaged and shipped in a sturdy box with appropriate materials to ensure safe arrival. The box will include protective materials such as bubble wrap, packing peanuts, and foam sheets. All shipments are tracked and insured, and typically arrive within 3-7 business days depending on the destination.

FAQ:

Q: What is GrandMfg® GM-BG10 Brass Oil Sight Glass?

A: GrandMfg® GM-BG10 Brass Oil Sight Glass is a device that is used to view the interior of a machine or liquid container, typically made of brass and used for inspecting the oil levels of machines or containers.

Q: Where is GrandMfg® GM-BG10 Brass Oil Sight Glass made?

A: GrandMfg® GM-BG10 Brass Oil Sight Glass is made in China.

Q: What is the model number of GrandMfg® Brass Oil Sight Glass?

A: The model number of GrandMfg® Brass Oil Sight Glass is GM-BG10.

Q: What is the purpose of using GrandMfg® GM-BG10 Brass Oil Sight Glass?

A: GrandMfg® GM-BG10 Brass Oil Sight Glass is used to view the interior of a machine or liquid container and inspect the oil levels of machines or containers.

Q: What is the material of GrandMfg® GM-BG10 Brass Oil Sight Glass?

A: GrandMfg® GM-BG10 Brass Oil Sight Glass is made of brass.
