Home /Products/Plastic oil sight Glass/BSP thread G3/4" Press Fit Plastic Circular Oil Sight Glass for hydraulic reservoir

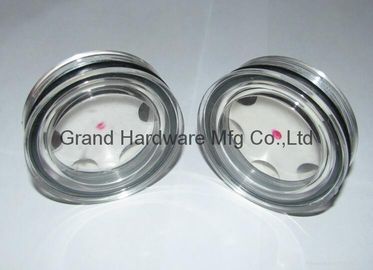

BSP thread G3/4" Press Fit Plastic Circular Oil Sight Glass for hydraulic reservoir

200pcs
MOQ
$ 0.8-10 pcs
Price
BSP thread G3/4" Press Fit Plastic Circular Oil Sight Glass for hydraulic reservoir
Features Gallery Product Description Request A Quote
Features
Specifications
Material: Plastic
Connection: Thread
Thread: BSP,Metric Thread
Basic Infomation
Place of Origin: China
Brand Name: grandmfg
Model Number: 1/2",3/4",1",11/2",11/4",13/4",2"
Payment & Shipping Terms
Packaging Details: exporting packaging or as required.
Delivery Time: 45 work days
Payment Terms: T/T
Supply Ability: 100000/month
Product Description

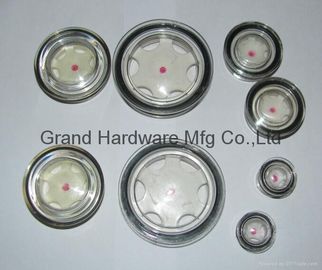

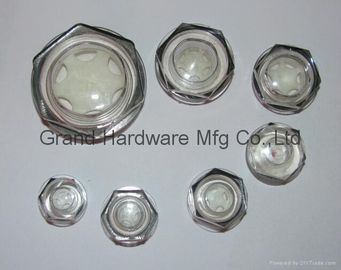

Polycarbonate Oil Sight glass, plastic Oil level Sight glass, circular plastic oil sight gauge, sight gage, sight window, view ports, oil level indicator, liquid sight glass,

Material
Body:   PMMA, Plastic and polyamide
O-Ring: Viton and NBR
Glass:  PMMA, PC and polyamide
Glass Thickness: 2mm to 5 mm
Glass Type: PMMA, PC(polycarbonate) and polyamide
Resist Temperature Range: -30 Cent degrees to 80 Cent degrees.

Pressure Range:  5-10 Bar or 0.5MPa to 1 MPa.

Connections: NPTF, NPT, UNC, UNF, Metric and BSP (G thread)

Size:M10X1, M16X1.5,M20X1.5, ,M27X1.5,M33X1.5,
G 3/8,G 1/2,G 3/4,G 1

MOQ: 5000 Pcs each size

Delivery time: 20 days.

Usage:  Pump, Thin-wall container, Radiator, Hydraulic reservoir, receivers, Gearboxes, Speed Reducer, Compressor and Power Transmission.



Item plastic sight glasses
Material Plastic PMMA
Window plastic
Reflectors Plastic PMMA
Resist Tempreature Range :-30'C to 70'C
Pressure Range 1-5 Bar(0.1MPa to 0.5 MPa).

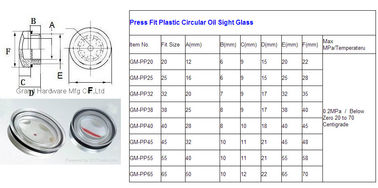

Size Below you will get the size you wanted.Another size is okay.OEM are welcome.
Usage Pump,Oil Receivers,Gearboxes,Speed Reducer,Compressor and Power Transimission.



BSP thread G3/4" Press Fit Plastic Circular Oil Sight Glass for hydraulic reservoir 0BSP thread G3/4" Press Fit Plastic Circular Oil Sight Glass for hydraulic reservoir 1BSP thread G3/4" Press Fit Plastic Circular Oil Sight Glass for hydraulic reservoir 2BSP thread G3/4" Press Fit Plastic Circular Oil Sight Glass for hydraulic reservoir 3

BSP thread G3/4" Press Fit Plastic Circular Oil Sight Glass for hydraulic reservoir 4BSP thread G3/4" Press Fit Plastic Circular Oil Sight Glass for hydraulic reservoir 5BSP thread G3/4" Press Fit Plastic Circular Oil Sight Glass for hydraulic reservoir 6BSP thread G3/4" Press Fit Plastic Circular Oil Sight Glass for hydraulic reservoir 7BSP thread G3/4" Press Fit Plastic Circular Oil Sight Glass for hydraulic reservoir 8BSP thread G3/4" Press Fit Plastic Circular Oil Sight Glass for hydraulic reservoir 9
