Thin-wall container, Radiator, Hydraulic reservoir, receivers,
Polycarbonate Oil Sight glass, plastic Oil level Sight glass,
circular plastic oil sight gauge,
sight gage, sight window, view ports, oil level indicator,
liquid sight glass,
Material
Body: PMMA, Plastic and polyamide
O-Ring: Viton and NBR
Glass: PMMA, PC and polyamide
Glass Thickness: 2mm to 5 mm
Glass Type: PMMA, PC(polycarbonate) and polyamide
Resist Temperature Range: -30 Cent degrees to 80 Cent degrees.
Pressure Range: 5-10 Bar or 0.5MPa to 1 MPa.
Connections: NPTF, NPT, UNC, UNF, Metric and BSP (G thread)
Size:M10X1, M16X1.5,M20X1.5, ,M27X1.5,M33X1.5,
G 3/8,G 1/2,G 3/4,G 1
MOQ: 5000 Pcs each size
Delivery time: 20 days.
Usage: Pump, Thin-wall container, Radiator, Hydraulic reservoir, receivers, Gearboxes,
Speed Reducer, Compressor and Power Transmission.

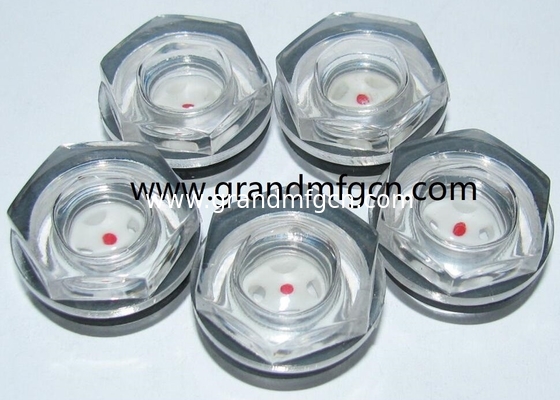

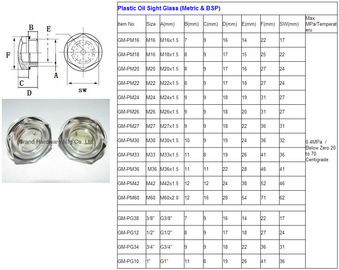

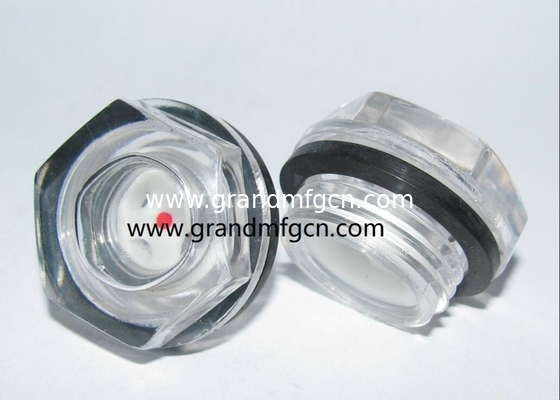

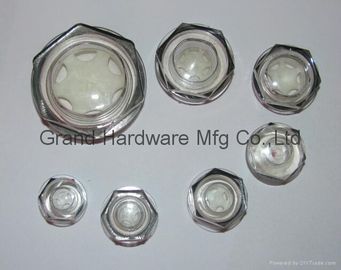

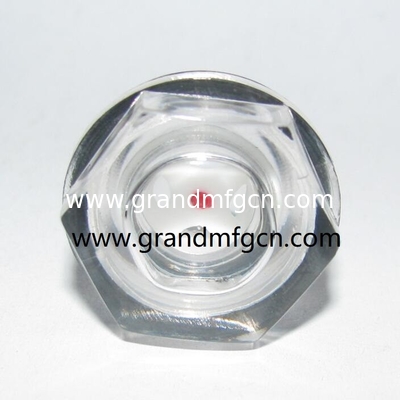

| Item |
plastic sight glasses |
| Material |
Plastic PMMA |
| Window |
plastic |
| Reflectors |
Plastic PMMA |
| Resist Tempreature Range |
:-30'C to 70'C |
| Pressure Range |
1-5 Bar(0.1MPa to 0.5 MPa). |
| Size |
Below you will get the size you wanted.Another size is okay.OEM are welcome. |
| Usage |
Pump,Oil Receivers,Gearboxes,Speed Reducer,Compressor and Power Transimission. |
| item |
brass sight gauges |
| Housing |
brass tube |
| tube |
quartz glass tube |
| O-Ring and flat gaskets |
NBR Rubber |
| Thread szie |
M10x1, M12x1.5, M14x1.5, M16x1.5, G1/4”, G3/8”,
G1/2”, NPT1/4, NPT3/8, NPT1/2” |
| Temperature resistant |
: -20’C to 120 ‘C. / 0’F to 260 ‘F |
| Distance of two bolts |
80mm to 600mm |
| item |
SS sight glasses |
| material |
Stainless steel 304,Stainless steel 304L,Stainless Steel 316,
Stainless steel 316L |
| O-Ring |
Viton,FKM,NBR, Aramid gasket and Copper seal |
| window |
Natural Glass,Tempered Glass and Borosilicate Glass |
| Glass Thickness |
2mm to 5 mm |
| Reflectors |
Stainless Steel 304 Reflector
(Any type you can chose with reflector or without Reflector, You also can add float ball.) |
| Resist Tempreature Range |
.-30'C TO 120'C |
| Pressure Range |
5-10 Bar(0.5MPa to 1 MPa). |
| Thread type |
NPT,NPTF,UNC,UNF,Metric and BSP(G thread) |
| item |
brass sight glasses |
| material |
brass |
| O-Ring |
Viton,FKM,NBR, Aramid gasket and Copper seal |
| window |
Natural Glass,Tempered Glass and Borosilicate Glass |
| Glass Thickness |
2mm to 5 mm |
| Reflectors |
Stainless Steel 304 Reflector
(Any type you can chose with reflector or without Reflector, You also can add float ball.) |
| Resist Tempreature Range |
.-30'C TO 120'C |
| Pressure Range |
5-10 Bar(0.5MPa to 1 MPa). |
| Thread type |
NPT,NPTF,UNC,UNF,Metric and BSP(G thread) |
| item |
aluminum sight glasses |
| material body |
Aluminum 6061 T6/Aluminum 6063 |
| O-Ring |
Viton,FKM,NBR, Aramid gasket and Copper seal |
| window |
Natural Glass,Tempered Glass and Borosilicate Glass |
| Glass Thickness |
2mm to 5 mm |
| Reflectors |
Stainless Steel 304 Reflector
(Any type you can chose with reflector or without Reflector, You also can add float ball.) |
| Resist Tempreature Range |
.-30'C TO 120'C |
| Pressure Range |
5-10 Bar(0.5MPa to 1 MPa). |
| Thread type |
UNC,UNF,Metric and BSP(G thread) |
| size |
Below you will get the size you wanted.Another size is okay.
OEM are welcome. |
| Usage |
Pump,Oil Receivers,Gearboxes,Speed Reducer,Compressor and Power Transimission. |
| Item |
Fused sight glass |
| Material |
steel nickel plated |
| Window |
Natural Glass |
| Glass Thickness |
2mm to 5 mm |
| Working Tempreature |
: －40℃～200℃ |
| Temperature Assaults Date |
: －40℃～180℃ |
| Working Pressure |
2.5, 4.0Mpa |
Our products are provided with simple structure, novel appearance, high airproof,
well poressure, good anti-cold concussion, marked clearly in the indication of
liquid location etc characters, and favor of the spacious domestic and overseas
air compressor producer deeply. |
| item |
brass breather vent plugs |
| material |
brass or aluminum |
| Thread Type |
BSP,Metric,NPT |
| finish |
Natural and Nickel Plated |
| size |
Any Size OEM are welcome. |
| Work Pressure |
0.005 MPa to M 0.03 Mpa |
| Tempture Range |
: -30 Cent degree to 130 Cent degree. |
| Pressure Range |
5-10 Bar(0.5MPa to 1 MPa). |
| Thread type |
Pump, Thin-wall container, Radiator, Hydraulic reservoir, receivers,
Gearboxes, Speed Reducer, Compressor and Power Transmission. |
| item |
Radiator Coolant Filler Necks & Cap |
| material |
SUS304,Steel,aluminum and brass. |
| Main area used |
Various brands of car,truck,etc. |
| Withstand Max Pressure |
0.6MPa,0.9MPa and 1.1MPa |
| All goods are strictly monitored and inspected from production to delivery. |
| Transportation: Container Freight & International Multimodal Transport |
| Packing: General exporting package or according to customers' requirements. |
