Product Description:

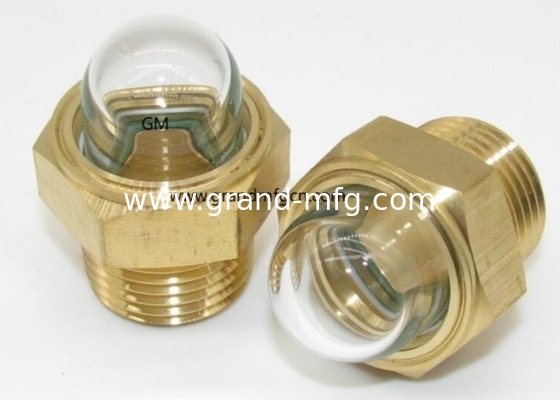

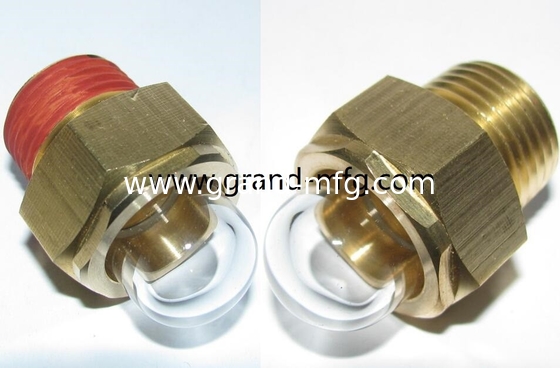

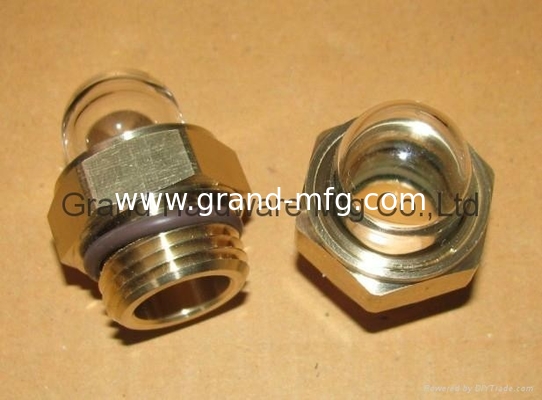

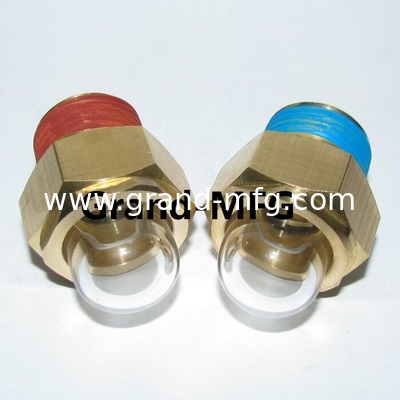

GrandMfg® Brass Oil level sight glass window Plugs are made up of body material in brass or brass free of lead and O-Ring with Viton,FKM,FPM,NBR, Aramid gasket and Copper seal. The glass is of 2mm to 8mm thickness with either natural glass, tempered glass or borosilicate glass with either flat surface or domed shape. It has resist temperature range from -40'C to 180'C and pressure range from 5-50 Bar (1MPa to 5 MPa). Available thread types are NPT, NPTF, UNC, UNF, Metric and BSP (G thread). The reflectors are constructed of stainless steel 304 or brass as a whole sight glass.
Sizes available for GrandMfg® Brass Oil level sight glass window Plugs are as per requirement. OEM are welcome and any type you can choose with reflector or without Reflector. You can also add float ball. Wide application of these Plugs are available in air pump, vaccumm pump, receivers, coolant receivoir, hydraulic tanks, gearboxes, speed reducer, gear unit, worm gearbox, helical gear boxes, variable speed motor, auotomotive worm gearboxes, compressor and power transimission.
Features:
- Product Name: Brass Oil Sight Glass
- Finish: Natural
- Shape: Round
- Mounting Type: Direct
- Gauge Port Type: NPT
- Gauge Port: 1/8
Technical Parameters:
| Parameter |
Value |
| Gauge Port Length |
1/2" |
| Gauge Port Type |
NPT |
| Gauge Port Thread Size |
1/8-27 |
| Gauge Port Material |
Brass |
| Features |
High Pressure |
| Application |
Oil Sight Glass, Brass Sight Plug, Air Compress, Brass Oil Sight Window |
| Pressure Rating |
150 PSI |
| Mounting Type |
Direct |
| Finish |
Natural |
| Temperature Rating |
200°F |
Applications:
GrandMfg® GM-BG10 NPT1 Brass Oil Sight Glass
This GrandMfg® GM-BG10 NPT1 Brass Oil Sight Glass is designed with a domed sight window for monitoring the flow of liquids, such as oil, in industrial applications. It is made of high-quality brass for maximum durability and corrosion resistance. The 1/2" gauge port length and 1/8-27 thread size makes it easy to install and use. It has a round shape and features a clear glass window for easy viewing. This sight glass is ideal for use in a variety of industrial settings, including manufacturing plants, warehouses, and more.
Customization:
We offer brass oil sight glass with custom features. Our GrandMfg® GM-BG10 is made of the highest quality materials and is designed for high pressure applications. Its direct mounting type and 1/2 gauge port length make it perfect for use with gear units and air compressors. It can handle temperatures up to 200°F and is made in China.
Support and Services:
Brass Oil Sight Glass offers full technical support and service for this product. Our technical support team is available 24/7 to answer any questions you may have, and our service team is available to provide any maintenance or repair services you may need.
Packing and Shipping:
Packaging and Shipping
The Brass Oil Sight Glass is securely packed in a cardboard box to prevent any damage during transit. The box is sealed and labeled to indicate the contents and its destination. The box will then be shipped to the customer's location through a reliable carrier.
FAQ:
Q&A About GrandMfg® GM-BG10 Brass Oil Sight Glass
- Q: What brand is GrandMfg® GM-BG10 Brass Oil Sight Glass?
A: GrandMfg® is the brand of GrandMfg® GM-BG10 Brass Oil Sight Glass.
- Q: What is the model number of GrandMfg® GM-BG10 Brass Oil Sight Glass?
A: The model number of GrandMfg® GM-BG10 Brass Oil Sight Glass is GM-BG10.
- Q: Where is GrandMfg® GM-BG10 Brass Oil Sight Glass made?
A: GrandMfg® GM-BG10 Brass Oil Sight Glass is made in China.
- Q: What material is GrandMfg® GM-BG10 Brass Oil Sight Glass made of?
A: GrandMfg® GM-BG10 Brass Oil Sight Glass is made of brass.
- Q: What is the purpose of GrandMfg® GM-BG10 Brass Oil Sight Glass?
A: The purpose of GrandMfg® GM-BG10 Brass Oil Sight Glass is to monitor fluid levels in tanks, reservoirs, and other vessels.
