Product Description:

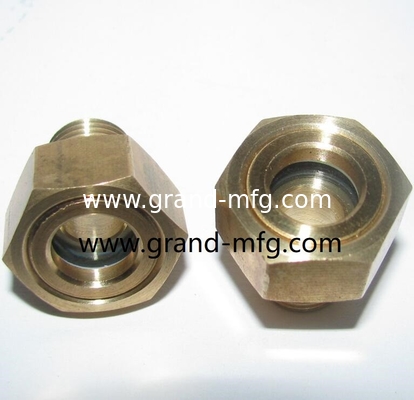

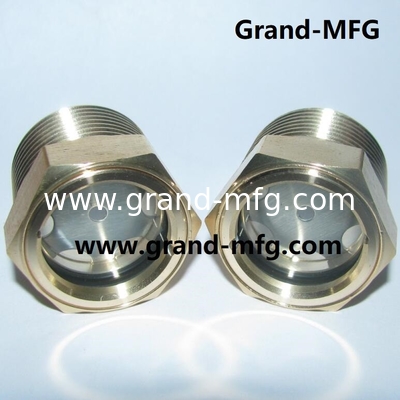

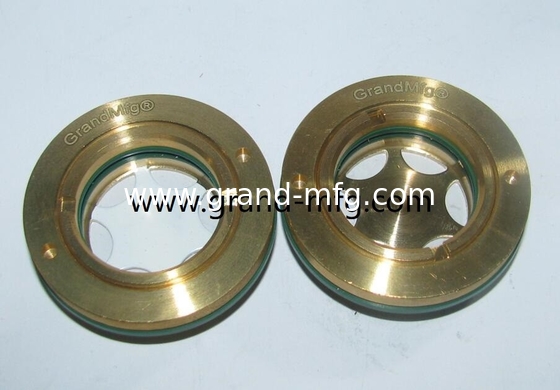

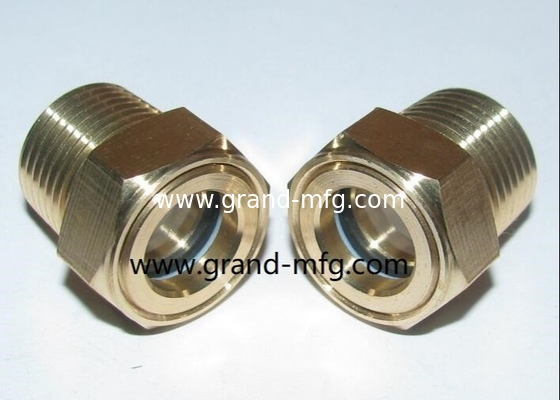

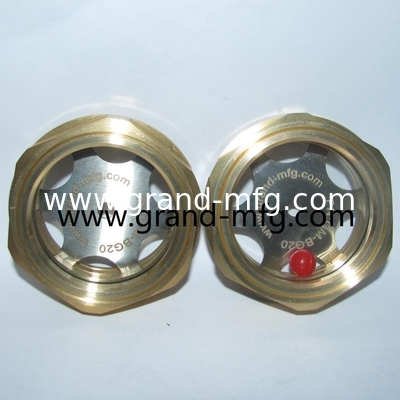

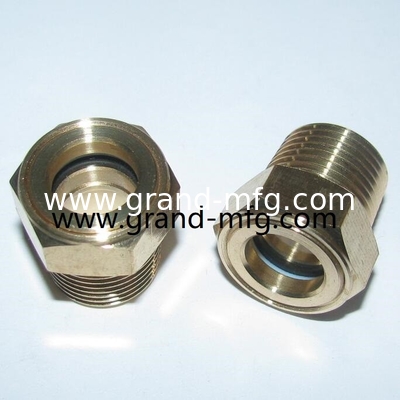

GrandMfg® Brass Oil level sight glass window Plugs are made of either brass or lead-free brass, and come with either a Viton, FKM, FPM, NBR, Aramid gasket or a copper seal. The glass used in the window plug is available in either natural glass, tempered glass and borosilicate glass, which is 2mm to 8mm thick, and available in either flat or domed shape. The window plugs are designed to handle temperature range from -40'C to 180'C and pressure range from 5-50 Bar (1MPa to 5 MPa). The thread types available are NPT, NPTF, UNC, UNF, Metric and BSP (G thread). Customers have the option of getting stainless steel reflectors with the glass or having just the brass body as one entirety. GrandMfg® Brass Oil level sight glass window Plugs are available in a variety of sizes, and custom sizes are also welcome. They have a wide range of applications, such as air pumps, vaccuum pumps, receivers, coolant receivoir, hydraulic tanks, gearboxes, speed reducer, gear unit, worm gearbox, helical gear boxes, variable speed motors, automobile worm gearboxes, compressors and power transmission.
Features:
- Product Name: Brass Oil Sight Glass
- Gauge Port Length: 1/2 inch
- Gauge Port Type: NPT
- Gauge Port Thread Size: 1/8-27
- Features: High Pressure, suitable for pumps
- Pressure Rating: 150 PSI
Technical Parameters:
| Parameter |
Value |
| Gauge Port Thread Size |
1/8-27 |
| Temperature Rating |
200°F |
| Features |
High Pressure |
| Material |
Brass |
| Gauge Port |
1/8 |
| Application |
Oil Sight Glass |
| Shape |
Round |
| Gauge Port Material |
Brass |
| Finish |
Natural |
| Gauge Port Length |
1/2 |
Applications:
GrandMfg® Gear Box NPT Brass Oil Sight Glass provides a reliable viewing window for monitoring fluid levels in gear boxes. This brass oil sight window is made of high quality brass material and is available in a natural finish. It features a 1/2" Gauge Port Length and 1/8" Gauge Port with 1/8-27 Gauge Port Thread Size. The GM-BG10 model of Brass Sight Glass can be installed directly into your gear box for easy and convenient viewing. GrandMfg® Gear Box NPT Brass Oil Sight Glass will provide you with a reliable and easy way to monitor fluid levels in your gear box.
Customization:
GrandMfg® GM-BG10 Metric Thread Brass Oil Sight Glass
- Brand Name: GrandMfg®
- Model Number: GM-BG10
- Place of Origin: China
- Size: NPT1
- Material: Brass
- Application: Oil Sight Glass
- Mounting Type: Direct
- Connection: Threaded
GrandMfg® GM-BG10 brass oil sight glass is designed for use in gear box oil sight plug and sight plug applications. It is made of high quality brass with threaded connection type for easy and secure installation. This sight glass is available in NPT1 size.
Support and Services:
Brass Oil Sight Glass Technical Support and Service
We provide technical support and services for the Brass Oil Sight Glass. We have a team of highly qualified and experienced professionals who are available to provide technical advice and assistance. Our team is available to answer any questions you may have about the product, its installation, maintenance and troubleshooting. We also provide free online tutorials and resources to help you get the most out of your Brass Oil Sight Glass.
We also provide customer service support. If you have any issues or questions about your Brass Oil Sight Glass, please do not hesitate to contact us. We strive to provide a fast and friendly response to all inquiries. We look forward to helping you get the most out of your Brass Oil Sight Glass.
Packing and Shipping:
The Brass Oil Sight Glass will be packaged with care and shipped within 1-2 business days.
The packaging will include a sturdy box to ensure that the product is well protected during transit. The box will be sealed with tape to prevent any tampering.
The product will be shipped via a reputable shipping service and may require a signature on delivery.
FAQ:
- Q1: What is Brass Oil Sight Glass?
- A1: Brass Oil Sight Glass is made by GrandMfg® with model number GM-BG10, manufactured in China. It is designed to give a clear indication of the oil level inside an engine, ensuring that the oil level is not too high or too low at any time.
- Q2: How does Brass Oil Sight Glass work?
- A2: Brass Oil Sight Glass works by providing a transparent window that allows the user to see the oil level within the engine. It also features a built-in level indicator, allowing the user to easily check the oil level.
- Q3: What are the benefits of using Brass Oil Sight Glass?
- A3: The main benefit of using Brass Oil Sight Glass is that it ensures that the oil level in the engine is at the correct level at all times. This in turn helps to improve the performance and efficiency of the engine, along with helping to prevent any damage caused by incorrect oil levels.
- Q4: What is the size of Brass Oil Sight Glass?
- A4: The size of Brass Oil Sight Glass varies depending on the model. The GM-BG10 model is 4" x 1.5" x 0.5".
- Q5: What is the material used for Brass Oil Sight Glass?
- A5: The material used for Brass Oil Sight Glass is brass, which is a strong and durable metal alloy that provides excellent corrosion resistance and heat resistance.
