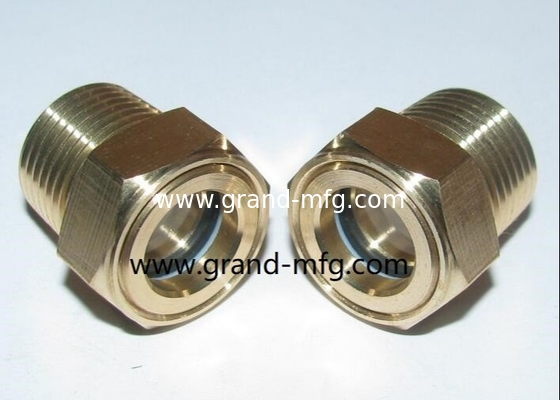

Name: M12X1 GM-HDM12 Dome Oil Level Sight Glass Heavy duty 3d coolant sight glass gauge radiator liquid level sight glass G1/2
Brand: grandmfg
SKU: 1/2",3/4",1",11/2",11/4",13/4",2"
Price: 0.8 USD
Availability: InStock
Rating: 4.6 (102 reviews)

Features Gallery Product Description Request A Quote

Features

Specifications

Material: Brass Hpb57-3

Thread: BSP,NPT,Metric Thread

Finish: No Finishing

Window: Temper Glass,Borosilicate Glass(Pyrex Glass)

Glass Thickness: 2mm-5mm

Basic Infomation

Place of Origin: China

Brand Name: grandmfg

Model Number: 1/2",3/4",1",11/2",11/4",13/4",2"

Payment & Shipping Terms

Packaging Details: exporting packaging

Delivery Time: 45 work days

Payment Terms: T/T

Supply Ability: 100000/month

Gallery

M12X1 GM-HDM12 Dome Oil Level Sight Glass Heavy duty 3d coolant sight glass gauge radiator liquid level sight glass G1/2

Product Description

M12X1 GM-HDM12 Dome Oil Level Sight Glass Heavy duty 3d coolant sight glass gauge radiator liquid level sight glass G1/2 0
Material Body: Brass
O-Ring: Viton,FKM,NBR, Aramid gasket and Copper seal
Glass Thickness: 2mm to 5 mm
Reflectors: Stainless Steel 304 Reflector
(Any type you can chose with reflector or without Reflector, You also can add float ball.)
Glass Type: Natural Glass,Tempered Glass and Borosilicate Glass
Resist Tempreature Range:-30'C to 120'C
Pressure Range: 5-10 Bar(0.5MPa to 1 MPa).
Thread type:NPT,NPTF,UNC,UNF,Metric and BSP(G thread)
Size: Below you will get the size you wanted.Another size is okay.OEM are welcome.
Usage: Pump,Oil Receivers,Gearboxes,Speed Reducer,Compressor and Power Transimission.

item	brass sight glasses
material	brass
O-Ring	Viton,FKM,NBR, Aramid gasket and Copper seal
window	Natural Glass,Tempered Glass and Borosilicate Glass
Glass Thickness	2mm to 5 mm
Reflectors	Stainless Steel 304 Reflector (Any type you can chose with reflector or without Reflector, You also can add float ball.)
Resist Tempreature Range	.-30'C TO 120'C
Pressure Range	5-10 Bar(0.5MPa to 1 MPa).
Thread type	NPT,NPTF,UNC,UNF,Metric and BSP(G thread)

M12X1 GM-HDM12 Dome Oil Level Sight Glass Heavy duty 3d coolant sight glass gauge radiator liquid level sight glass G1/2 1

item	aluminum sight glasses
material body	Aluminum 6061 T6/Aluminum 6063
O-Ring	Viton,FKM,NBR, Aramid gasket and Copper seal
window	Natural Glass,Tempered Glass and Borosilicate Glass
Glass Thickness	2mm to 5 mm
Reflectors	Stainless Steel 304 Reflector (Any type you can chose with reflector or without Reflector, You also can add float ball.)
Resist Tempreature Range	.-30'C TO 120'C
Pressure Range	5-10 Bar(0.5MPa to 1 MPa).
Thread type	UNC,UNF,Metric and BSP(G thread)
size	Below you will get the size you wanted.Another size is okay. OEM are welcome.
Usage	Pump,Oil Receivers,Gearboxes,Speed Reducer,Compressor and Power Transimission.

M12X1 GM-HDM12 Dome Oil Level Sight Glass Heavy duty 3d coolant sight glass gauge radiator liquid level sight glass G1/2 3

item	SS sight glasses
material	Stainless steel 304,Stainless steel 304L,Stainless Steel 316, Stainless steel 316L
O-Ring	Viton,FKM,NBR, Aramid gasket and Copper seal
window	Natural Glass,Tempered Glass and Borosilicate Glass
Glass Thickness	2mm to 5 mm
Reflectors	Stainless Steel 304 Reflector (Any type you can chose with reflector or without Reflector, You also can add float ball.)
Resist Tempreature Range	.-30'C TO 120'C
Pressure Range	5-10 Bar(0.5MPa to 1 MPa).
Thread type	NPT,NPTF,UNC,UNF,Metric and BSP(G thread)

M12X1 GM-HDM12 Dome Oil Level Sight Glass Heavy duty 3d coolant sight glass gauge radiator liquid level sight glass G1/2 6

item	brass breather vent plugs
material	brass or aluminum
Thread Type	BSP,Metric,NPT
finish	Natural and Nickel Plated
size	Any Size OEM are welcome.
Work Pressure	0.005 MPa to M 0.03 Mpa
Tempture Range	: -30 Cent degree to 130 Cent degree.
Pressure Range	5-10 Bar(0.5MPa to 1 MPa).
Thread type	Pump, Thin-wall container, Radiator, Hydraulic reservoir, receivers, Gearboxes, Speed Reducer, Compressor and Power Transmission.

M12X1 GM-HDM12 Dome Oil Level Sight Glass Heavy duty 3d coolant sight glass gauge radiator liquid level sight glass G1/2 10

item	Radiator Coolant Filler Necks & Cap
material	SUS304,Steel,aluminum and brass.
Main area used	Various brands of car,truck,etc.
Withstand Max Pressure	0.6MPa,0.9MPa and 1.1MPa
All goods are strictly monitored and inspected from production to delivery.
Transportation: Container Freight & International Multimodal Transport
Packing: General exporting package or according to customers' requirements.

M12X1 GM-HDM12 Dome Oil Level Sight Glass Heavy duty 3d coolant sight glass gauge radiator liquid level sight glass G1/2 16

item	steel plugs
material	Carbon Steel and Al 6061
Thread Type	BSP,Metric,NPT
finish	Steel Zinc plated,Aluminum Natural and Aluminum Anodizing
size	Any Size OEM are welcome.
Usage	Hydraulic equipements, Gearboxes,Speed Reducer,Cars,Automotive, Truck,Pump and Power Transimission.
1)Wihtstand hight pressure hydraulic plugs. 2)Covering standards of DIN, SAE, ISO, JIS and BS etc.

M12X1 GM-HDM12 Dome Oil Level Sight Glass Heavy duty 3d coolant sight glass gauge radiator liquid level sight glass G1/2 17

Just please contact us for checking our stocks and confirming the specifications.
