Home /Products/Brass Oil Sight Glass/Male NPT thread 1/2" 3/8" 3/4" GM-HDN34 Heavy duty trucks 3d dome oil level sight glass gauge plugs with clear glass

Male NPT thread 1/2" 3/8" 3/4" GM-HDN34 Heavy duty trucks 3d dome oil level sight glass gauge plugs with clear glass

1000pcs
MOQ
$ 0.8-10 pcs
Price
Male NPT thread 1/2" 3/8" 3/4" GM-HDN34 Heavy duty trucks 3d dome oil level sight glass gauge plugs with clear glass
Features Gallery Product Description Request A Quote
Features
Specifications
Material: Brass Hpb57-3
Thread: BSP,NPT,Metric Thread
Finish: No Finishing
Window: Temper Glass,Borosilicate Glass(Pyrex Glass)
Glass Thickness: 2mm-5mm
Basic Infomation
Place of Origin: China
Brand Name: grand-mfg
Model Number: 1/2",3/4",1",11/2",11/4",13/4",2"
Payment & Shipping Terms
Packaging Details: exporting packaging
Delivery Time: 45 work days
Payment Terms: T/T
Supply Ability: 100000/month
Product Description

Male NPT thread 1/2" 3/8" 3/4" GM-HDN34 Heavy duty trucks 3d dome oil level sight glass gauge plugs with clear glass 0

Material Body: Brass
O-Ring: Viton,FKM,NBR, Aramid gasket and Copper seal
Glass Thickness: 2mm to 5 mm
Reflectors: Stainless Steel 304 Reflector
(Any type you can chose with reflector or without Reflector, You also can add float ball.)
Glass Type: Natural Glass,Tempered Glass and Borosilicate Glass
Resist Tempreature Range:-30'C to 120'C
Pressure Range: 5-10 Bar(0.5MPa to 1 MPa).
Thread type:NPT,NPTF,UNC,UNF,Metric and BSP(G thread)
Size: Below you will get the size you wanted.Another size is okay.OEM are welcome.
Usage: Pump,Oil Receivers,Gearboxes,Speed Reducer,Compressor and Power Transimission.
 Male NPT thread 1/2" 3/8" 3/4" GM-HDN34 Heavy duty trucks 3d dome oil level sight glass gauge plugs with clear glass 1

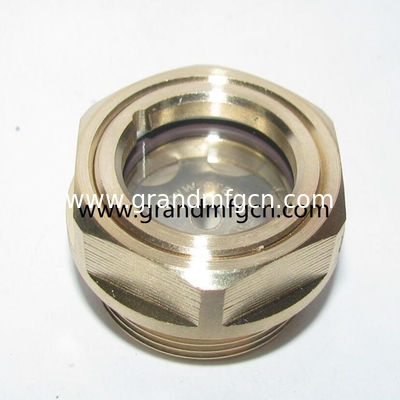

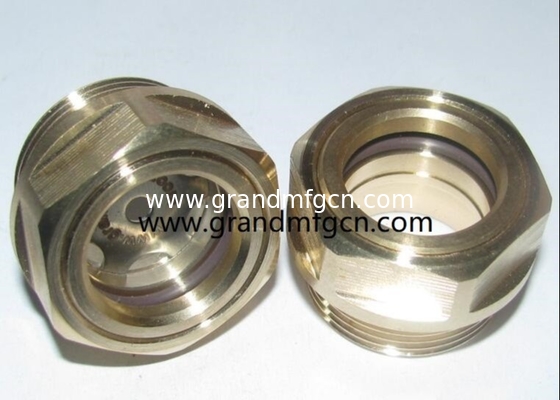

item brass sight glasses
material brass
O-Ring Viton,FKM,NBR, Aramid gasket and Copper seal
window Natural Glass,Tempered Glass and Borosilicate Glass
Glass Thickness 2mm to 5 mm
Reflectors Stainless Steel 304 Reflector
(Any type you can chose with reflector or without Reflector, You also can add float ball.)
Resist Tempreature Range .-30'C TO 120'C
Pressure Range 5-10 Bar(0.5MPa to 1 MPa).
Thread type NPT,NPTF,UNC,UNF,Metric and BSP(G thread)



Male NPT thread 1/2" 3/8" 3/4" GM-HDN34 Heavy duty trucks 3d dome oil level sight glass gauge plugs with clear glass 2Male NPT thread 1/2" 3/8" 3/4" GM-HDN34 Heavy duty trucks 3d dome oil level sight glass gauge plugs with clear glass 3Male NPT thread 1/2" 3/8" 3/4" GM-HDN34 Heavy duty trucks 3d dome oil level sight glass gauge plugs with clear glass 4Male NPT thread 1/2" 3/8" 3/4" GM-HDN34 Heavy duty trucks 3d dome oil level sight glass gauge plugs with clear glass 5Male NPT thread 1/2" 3/8" 3/4" GM-HDN34 Heavy duty trucks 3d dome oil level sight glass gauge plugs with clear glass 6

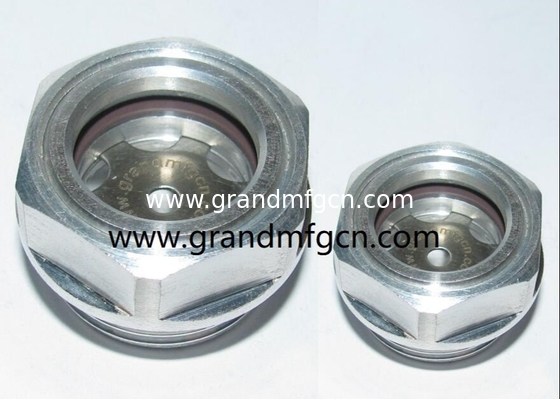

item aluminum sight glasses
material body Aluminum 6061 T6/Aluminum 6063
O-Ring Viton,FKM,NBR, Aramid gasket and Copper seal
window Natural Glass,Tempered Glass and Borosilicate Glass
Glass Thickness 2mm to 5 mm
Reflectors Stainless Steel 304 Reflector
(Any type you can chose with reflector or without Reflector, You also can add float ball.)
Resist Tempreature Range .-30'C TO 120'C
Pressure Range 5-10 Bar(0.5MPa to 1 MPa).
Thread type UNC,UNF,Metric and BSP(G thread)
size Below you will get the size you wanted.Another size is okay.
OEM are welcome.
Usage Pump,Oil Receivers,Gearboxes,Speed Reducer,Compressor and Power Transimission.


Male NPT thread 1/2" 3/8" 3/4" GM-HDN34 Heavy duty trucks 3d dome oil level sight glass gauge plugs with clear glass 7Male NPT thread 1/2" 3/8" 3/4" GM-HDN34 Heavy duty trucks 3d dome oil level sight glass gauge plugs with clear glass 8Male NPT thread 1/2" 3/8" 3/4" GM-HDN34 Heavy duty trucks 3d dome oil level sight glass gauge plugs with clear glass 9Male NPT thread 1/2" 3/8" 3/4" GM-HDN34 Heavy duty trucks 3d dome oil level sight glass gauge plugs with clear glass 10Male NPT thread 1/2" 3/8" 3/4" GM-HDN34 Heavy duty trucks 3d dome oil level sight glass gauge plugs with clear glass 11



item SS sight glasses
material Stainless steel 304,Stainless steel 304L,Stainless Steel 316,
Stainless steel 316L
O-Ring Viton,FKM,NBR, Aramid gasket and Copper seal
window Natural Glass,Tempered Glass and Borosilicate Glass
Glass Thickness 2mm to 5 mm
Reflectors Stainless Steel 304 Reflector
(Any type you can chose with reflector or without Reflector, You also can add float ball.)
Resist Tempreature Range .-30'C TO 120'C
Pressure Range 5-10 Bar(0.5MPa to 1 MPa).
Thread type NPT,NPTF,UNC,UNF,Metric and BSP(G thread)


Male NPT thread 1/2" 3/8" 3/4" GM-HDN34 Heavy duty trucks 3d dome oil level sight glass gauge plugs with clear glass 12Male NPT thread 1/2" 3/8" 3/4" GM-HDN34 Heavy duty trucks 3d dome oil level sight glass gauge plugs with clear glass 13Male NPT thread 1/2" 3/8" 3/4" GM-HDN34 Heavy duty trucks 3d dome oil level sight glass gauge plugs with clear glass 14Male NPT thread 1/2" 3/8" 3/4" GM-HDN34 Heavy duty trucks 3d dome oil level sight glass gauge plugs with clear glass 15Male NPT thread 1/2" 3/8" 3/4" GM-HDN34 Heavy duty trucks 3d dome oil level sight glass gauge plugs with clear glass 16Male NPT thread 1/2" 3/8" 3/4" GM-HDN34 Heavy duty trucks 3d dome oil level sight glass gauge plugs with clear glass 17



item brass breather vent plugs
material brass or aluminum
Thread Type BSP,Metric,NPT
finish Natural and Nickel Plated
size Any Size OEM are welcome.
Work Pressure 0.005 MPa to M 0.03 Mpa
Tempture Range : -30 Cent degree to 130 Cent degree.
Pressure Range 5-10 Bar(0.5MPa to 1 MPa).
Thread type Pump, Thin-wall container, Radiator, Hydraulic reservoir, receivers,
Gearboxes, Speed Reducer, Compressor and Power Transmission.


Male NPT thread 1/2" 3/8" 3/4" GM-HDN34 Heavy duty trucks 3d dome oil level sight glass gauge plugs with clear glass 18Male NPT thread 1/2" 3/8" 3/4" GM-HDN34 Heavy duty trucks 3d dome oil level sight glass gauge plugs with clear glass 19Male NPT thread 1/2" 3/8" 3/4" GM-HDN34 Heavy duty trucks 3d dome oil level sight glass gauge plugs with clear glass 20Male NPT thread 1/2" 3/8" 3/4" GM-HDN34 Heavy duty trucks 3d dome oil level sight glass gauge plugs with clear glass 21Male NPT thread 1/2" 3/8" 3/4" GM-HDN34 Heavy duty trucks 3d dome oil level sight glass gauge plugs with clear glass 22Male NPT thread 1/2" 3/8" 3/4" GM-HDN34 Heavy duty trucks 3d dome oil level sight glass gauge plugs with clear glass 23Male NPT thread 1/2" 3/8" 3/4" GM-HDN34 Heavy duty trucks 3d dome oil level sight glass gauge plugs with clear glass 24



item Radiator Coolant Filler Necks & Cap
material SUS304,Steel,aluminum and brass.
Main area used Various brands of car,truck,etc.
Withstand Max Pressure 0.6MPa,0.9MPa and 1.1MPa
All goods are strictly monitored and inspected from production to delivery.
Transportation: Container Freight & International Multimodal Transport
Packing: General exporting package or according to customers' requirements.

Male NPT thread 1/2" 3/8" 3/4" GM-HDN34 Heavy duty trucks 3d dome oil level sight glass gauge plugs with clear glass 25


item steel plugs
material Carbon Steel and Al 6061
Thread Type BSP,Metric,NPT
finish Steel Zinc plated,Aluminum Natural and Aluminum Anodizing
size Any Size OEM are welcome.
Usage Hydraulic equipements, Gearboxes,Speed Reducer,Cars,Automotive,
Truck,Pump and Power Transimission.
1)Wihtstand hight pressure hydraulic plugs.
2)Covering standards of DIN, SAE, ISO, JIS and BS etc.


Male NPT thread 1/2" 3/8" 3/4" GM-HDN34 Heavy duty trucks 3d dome oil level sight glass gauge plugs with clear glass 26
 Male NPT thread 1/2" 3/8" 3/4" GM-HDN34 Heavy duty trucks 3d dome oil level sight glass gauge plugs with clear glass 27Male NPT thread 1/2" 3/8" 3/4" GM-HDN34 Heavy duty trucks 3d dome oil level sight glass gauge plugs with clear glass 28


Just please contact us for checking our stocks and confirming the specifications.
