BSP G2 inch 2-1/2 Brass oil level sight glass observation sight plug oil level sight glasses OEM service no finishing

200pcs
MOQ
$ 0.8-10 pcs
Price
BSP G2 inch 2-1/2 Brass oil level sight glass observation sight plug oil level sight glasses OEM service no finishing
Features Gallery Product Description Request A Quote
Features
Specifications
Material: Stainless Steel 304 316
Thread: NPT BSP Metric Thread
Packaging: Cartons,pallets
Service: OEM And ODM
Basic Infomation
Place of Origin: China
Brand Name: grand-mfg
Model Number: 1/2",3/4",1",11/2",11/4",13/4",2"
Payment & Shipping Terms
Packaging Details: standard export packaging
Delivery Time: 45 work days
Payment Terms: T/T
Supply Ability: 50000pcs/month
Product Description

Oil level sight glass,Bulls eye Sight Glass,Fluid level Sight Glass,Circular oil sight Glass

Oil level indicator sight glass,oil sight gauge,Oil sight windows,Visual level sight glass

Visual level indicator,Visual level sight gauge,domed shape sight glass.
Material Body: Stainless steel 304,Stainless steel 304L,Stainless Steel 316,Stainless steel 316L
O-Ring: Viton,FKM,NBR, Aramid gasket and Copper seal
Glass Thickness: 2mm to 5 mm
Reflectors: Stainless Steel 304 Reflector

(Any type you can chose with reflector or without Reflector, You also can add float ball.)
Glass Type: Natural Glass,Tempered Glass and Borosilicate Glass
Resist Tempreature Range:-30'C to 220'C
Pressure Range: 5-120 Bar(0.5MPa to 12 MPa).
Thread type:NPT,NPTF,UNC,UNF,Metric and BSP(G thread)
Size: Below you will get the size you wanted.Another size is okay.OEM are welcome.

Usage: Pump,Oil Receivers,Gearboxes,Speed Reducer,Compressor and Power Transimission.





itemSS sight glasses
materialStainless steel 304,Stainless steel 304L,Stainless Steel 316,
Stainless steel 316L
O-RingViton,FKM,NBR, Aramid gasket and Copper seal
windowNatural Glass,Tempered Glass and Borosilicate Glass
Glass Thickness2mm to 5 mm
ReflectorsStainless Steel 304 Reflector
(Any type you can chose with reflector or without Reflector, You also can add float ball.)
Resist Tempreature Range.-30'C TO 120'C
Pressure Range5-10 Bar(0.5MPa to 1 MPa).
Thread typeNPT,NPTF,UNC,UNF,Metric and BSP(G thread)

BSP G2 inch 2-1/2 Brass oil level sight glass observation sight plug oil level sight glasses OEM service no finishing 0

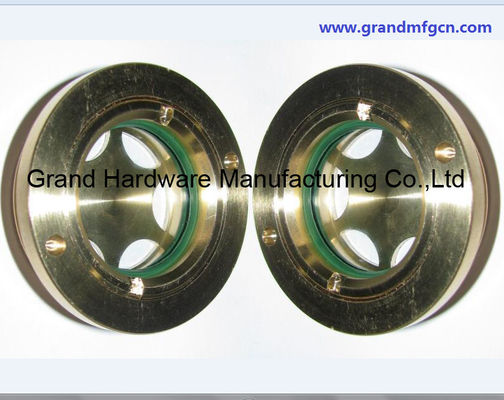

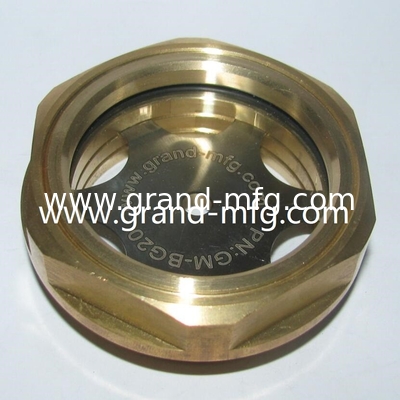

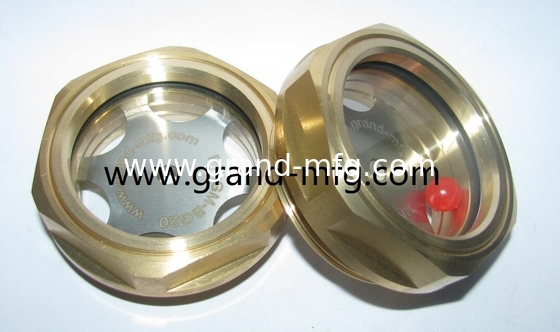

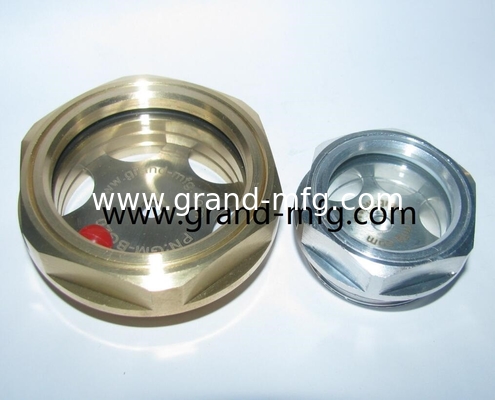

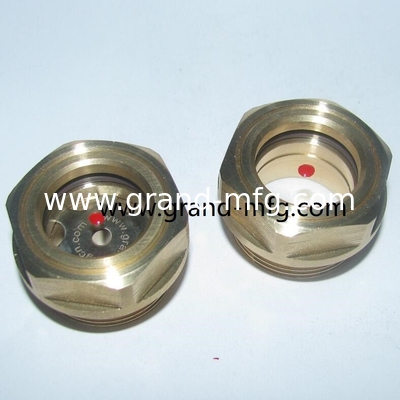

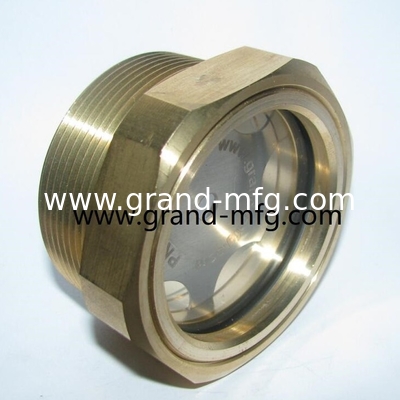

itembrass sight glasses
materialbrass
O-RingViton,FKM,NBR, Aramid gasket and Copper seal
windowNatural Glass,Tempered Glass and Borosilicate Glass
Glass Thickness2mm to 5 mm
ReflectorsStainless Steel 304 Reflector
(Any type you can chose with reflector or without Reflector, You also can add float ball.)
Resist Tempreature Range.-30'C TO 120'C
Pressure Range5-10 Bar(0.5MPa to 1 MPa).
Thread typeNPT,NPTF,UNC,UNF,Metric and BSP(G thread)


BSP G2 inch 2-1/2 Brass oil level sight glass observation sight plug oil level sight glasses OEM service no finishing 1


itemSS machined parts
materialSS304,SS316
finishNatural
serviceOEM and ODM business
Dimension Tolerance:CNC Lathe +/-0.01 mm.
General Lathe +/-0.1 to 0.2 mm



BSP G2 inch 2-1/2 Brass oil level sight glass observation sight plug oil level sight glasses OEM service no finishing 2

BSP G2 inch 2-1/2 Brass oil level sight glass observation sight plug oil level sight glasses OEM service no finishing 3



itemaluminum sight glasses
material bodyAluminum 6061 T6/Aluminum 6063
O-RingViton,FKM,NBR, Aramid gasket and Copper seal
windowNatural Glass,Tempered Glass and Borosilicate Glass
Glass Thickness2mm to 5 mm
ReflectorsStainless Steel 304 Reflector
(Any type you can chose with reflector or without Reflector, You also can add float ball.)
Resist Tempreature Range.-30'C TO 120'C
Pressure Range5-10 Bar(0.5MPa to 1 MPa).
Thread typeUNC,UNF,Metric and BSP(G thread)
sizeBelow you will get the size you wanted.Another size is okay.
OEM are welcome.
UsagePump,Oil Receivers,Gearboxes,Speed Reducer,Compressor and Power Transimission.


BSP G2 inch 2-1/2 Brass oil level sight glass observation sight plug oil level sight glasses OEM service no finishing 4


itemsight glasses,oil gauges
oil drain plugs,steel plugs
breather vent plugs
auto radiator parts
magnetic drain plugs
precision machined parts(brass,steel,stainless steel,aluminum)
hydraulic steel fittings
OEM and ODM business welcome.
