G thread 1 1/4 Brass oil level sight glass Helical gear boxes oil sight glass bulls eye sight plug oil level gauge

PRODUCTS DESCRIPTION:

aluminum oil sight glasses:

Material Body: Aluminum 6061 T6/Aluminum 6063

O-Ring: Viton,FKM,NBR, Aramid gasket and Copper seal

Glass Thickness: 2mm to 5 mm

Reflectors: Stainless Steel 304 Reflector

(Any type you can chose with reflector or without Reflector, You also can add float ball.)

Glass Type: Natural Glass,Tempered Glass and Borosilicate Glass

Resist Tempreature Range:-30'C to 120'C

Pressure Range: 5-10 Bar(0.5MPa to 1 MPa).

Thread type:NPT,NPTF,UNC,UNF,Metric and BSP(G thread)

Size: Below you will get the size you wanted.Another size is okay.OEM are welcome.

Usage: Pump,Oil Receivers,Gearboxes,Speed Reducer,Compressor and Power Transimission.

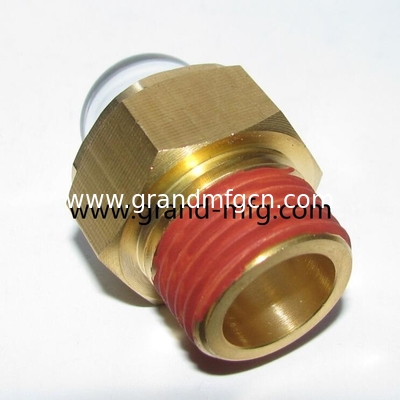

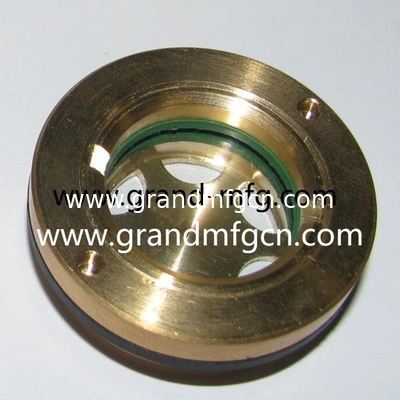

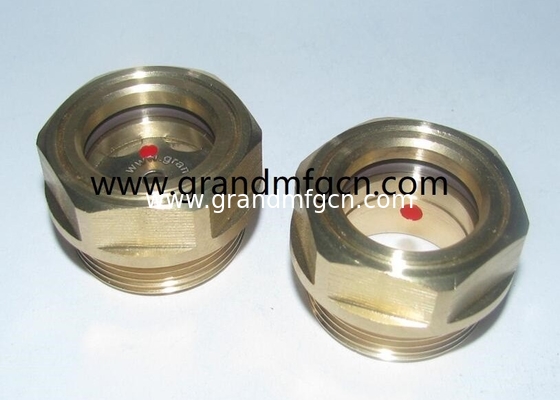

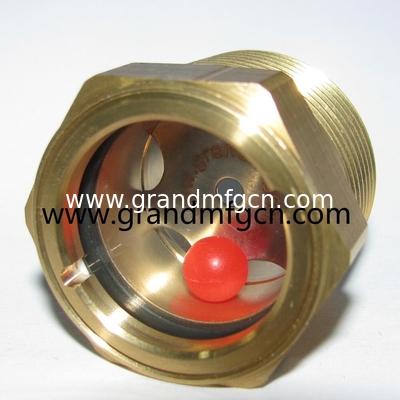

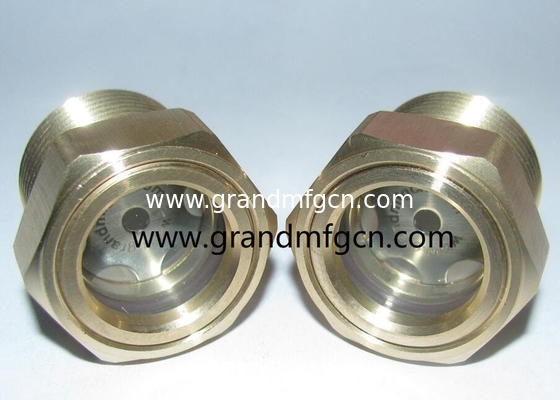

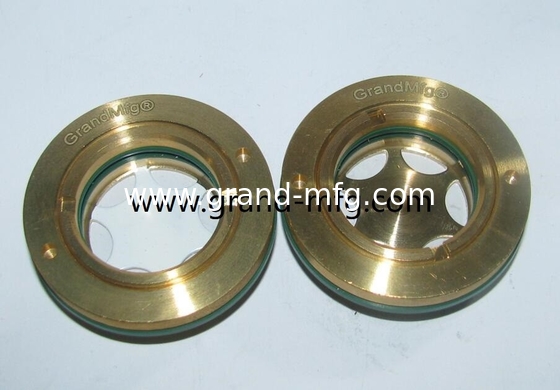

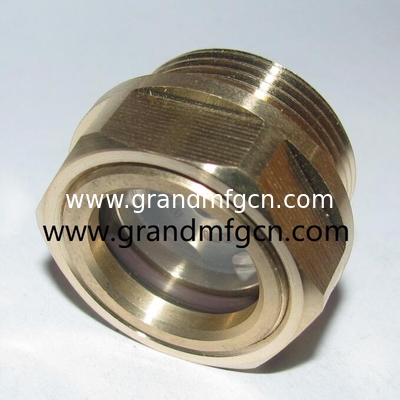

Brass sight glass

Material Body: Brass

O-Ring: Viton,FKM,NBR, Aramid gasket and Copper seal

Glass Thickness: 2mm to 5 mm

Reflectors: Stainless Steel 304 Reflector

(Any type you can chose with reflector or without Reflector, You also can add float ball.)

Glass Type: Natural Glass,Tempered Glass and Borosilicate Glass

Resist Tempreature Range:-30'C to 120'C

Pressure Range: 5-10 Bar(0.5MPa to 1 MPa).

Thread type:NPT,NPTF,UNC,UNF,Metric and BSP(G thread)

Size: Below you will get the size you wanted.Another size is okay.OEM are welcome.

Usage: Pump,Oil Receivers,Gearboxes,Speed Reducer,Compressor and Power Transimission.

FUSED SIGHT GLASS:

• Threaded Fused Window Sights,Fused Sight Glass,Fused level sight gauge,
• Fused Sight windows,Metal Sight Glass

• Service: Compatible gases and liquids.

• Window: nature glass (3mm to 6mm)

• Body: Nickel Plated steet,stainless steel 304 and S.S 316

• Reflector: S.S 304 Customers can chosed Plastic float Ball for oil or other liquid.

• Temperature: -30'C to 260 'C (500 ‘F).
• Max Pressure: 12 MPa(1740Psi)

• Connections: NPT,NPTF,UNC,UNF,Metric and BSP (G thread)
• Size: 1/4" to 2"
• Usage: refrigeration machine, compressor,Hydraulic reservoir,Power Transimission and various machine.
•
•
•

• Item	Fused sight glass
  Material	steel nickel plated
  Window	Natural Glass
  Glass Thickness	2mm to 5 mm
  Working Tempreature	: －40℃～200℃
  Temperature Assaults Date	: －40℃～180℃
  Working Pressure	2.5, 4.0Mpa
  Our products are provided with simple structure, novel appearance, high airproof, well poressure, good anti-cold concussion, marked clearly in the indication of liquid location etc characters, and favor of the spacious domestic and overseas air compressor producer deeply.
