Name: custom male NPT thread 3/4" natural brass oil sight glass level gauge for oil level checing quartz glass tube ODM OEM
Brand: Grand Hardware Manufacturing Co.,Ltd
SKU: 1/4",1/2",M12,M16
Price: Negotiable USD
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Material: Brass

Size: 1/4",1/2",M12,M16

Finishing: Nature

Packaging: Cartons,pallets

Basic Infomation

Place of Origin: China

Brand Name: GM

Model Number: 1/4",1/2",M12,M16

Payment & Shipping Terms

Packaging Details: standard export packaging

Delivery Time: 45days

Payment Terms: T/T

Supply Ability: 50000pcs/month

Gallery

custom male NPT thread 3/4" natural brass oil sight glass level gauge for oil level checing quartz glass tube ODM OEM

Product Description

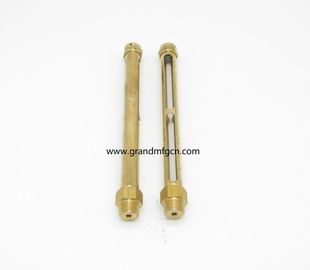

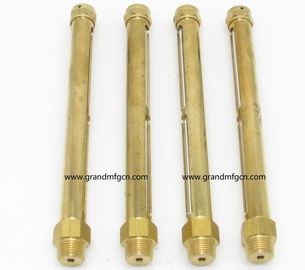

Brass Tube Oil level Indicator/Oil level Gauge with glass tube.Plastic level indicator/gauge

Housing: Brass Tube .

Tube: Real glass tube.

O-Ring and flat gaskets: NBR Rubber.

Thread szie: M10x1, M12x1.5, M14x1.5, M16x1.5, G1/4”, G3/8”, G1/2”, NPT1/4, NPT3/8, NPT1/2”

Temperature resistant: -20’C to 120 ‘C. / 0’F to 260 ‘F

Distance of two bolts: 80mm to 600mm

Usage: Pump, Thin-wall container, Radiator, Hydraulic reservoir, receivers, Gearboxes, Speed Reducer, Compressor and Power Transmission.

custom male NPT thread 3/4" natural brass oil sight glass level gauge for oil level checing quartz glass tube ODM OEM 0

item	brass sight gauges
Housing	brass tube
tube	quartz glass tube
O-Ring and flat gaskets	NBR Rubber
Thread szie	M10x1, M12x1.5, M14x1.5, M16x1.5, G1/4”, G3/8”, G1/2”, NPT1/4, NPT3/8, NPT1/2”
Temperature resistant	: -20’C to 120 ‘C. / 0’F to 260 ‘F
Distance of two bolts	80mm to 600mm

custom male NPT thread 3/4" natural brass oil sight glass level gauge for oil level checing quartz glass tube ODM OEM 1

custom male NPT thread 3/4" natural brass oil sight glass level gauge for oil level checing quartz glass tube ODM OEM 7

item	brass sight glasses
material	brass
O-Ring	Viton,FKM,NBR, Aramid gasket and Copper seal
window	Natural Glass,Tempered Glass and Borosilicate Glass
Glass Thickness	2mm to 5 mm
Reflectors	Stainless Steel 304 Reflector (Any type you can chose with reflector or without Reflector, You also can add float ball.)
Resist Tempreature Range	.-30'C TO 120'C
Pressure Range	5-10 Bar(0.5MPa to 1 MPa).
Thread type	NPT,NPTF,UNC,UNF,Metric and BSP(G thread)

custom male NPT thread 3/4" natural brass oil sight glass level gauge for oil level checing quartz glass tube ODM OEM 9

item	SS sight glasses
material	Stainless steel 304,Stainless steel 304L,Stainless Steel 316, Stainless steel 316L
O-Ring	Viton,FKM,NBR, Aramid gasket and Copper seal
window	Natural Glass,Tempered Glass and Borosilicate Glass
Glass Thickness	2mm to 5 mm
Reflectors	Stainless Steel 304 Reflector (Any type you can chose with reflector or without Reflector, You also can add float ball.)
Resist Tempreature Range	.-30'C TO 120'C
Pressure Range	5-10 Bar(0.5MPa to 1 MPa).
Thread type	NPT,NPTF,UNC,UNF,Metric and BSP(G thread)

custom male NPT thread 3/4" natural brass oil sight glass level gauge for oil level checing quartz glass tube ODM OEM 15

item	steel sight glasses
material	steel
O-Ring	Viton,FKM,NBR, Aramid gasket and Copper seal
window	Natural Glass,Tempered Glass and Borosilicate Glass
Glass Thickness	2mm to 5 mm
Reflectors	Stainless Steel 304 Reflector (Any type you can chose with reflector or without Reflector, You also can add float ball.)
Resist Tempreature Range	.-30'C TO 120'C
Pressure Range	5-10 Bar(0.5MPa to 1 MPa).
Thread type	NPT,NPTF,UNC,UNF,Metric and BSP(G thread)

custom male NPT thread 3/4" natural brass oil sight glass level gauge for oil level checing quartz glass tube ODM OEM 19

item	aluminum machined parts
material	Al 6061,Alloy Alloy,Die castings Aluminum Castings.
finish	Natural,Sandblasted,Anodized and Oxidized Color
Processing	Turning,Machining,Lathing,Milling,moulded,Sand Castings and die castings
Dimension Tolerance:	: +/-0.02mm or +/-0.005 inch(CNC machining and lathing) : +/-0.1mm or +/-0.05 inch (Aluminum Castings)

custom male NPT thread 3/4" natural brass oil sight glass level gauge for oil level checing quartz glass tube ODM OEM 21

Tag:

Tel :	86-139-6762 1509
Fax :	86-576-88327473

custom male NPT thread 3/4" natural brass oil sight glass level gauge for oil level checing quartz glass tube ODM OEM

oil tank gauge

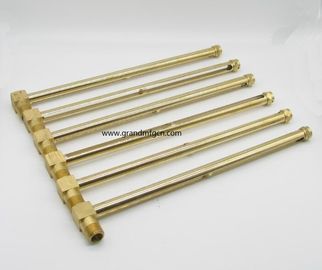

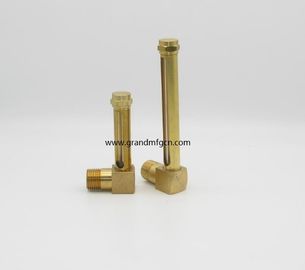

L type brass tube oil level gauge , gear reducer gearboxes brass & aluminum oil level gauge
