Name: Metric thread M18x1.5 M22x1.5 M26x1.5 M27X1.5 M33X2 M60X2 circular oil level sight glass supplier and manufacturer
Brand: grandmfg
SKU: 1/2",3/4",1",11/2",11/4",13/4",2"
Price: 0.8 USD
Availability: InStock
Rating: 4.9 (172 reviews)

Features Gallery Product Description Request A Quote

Features

Specifications

Meterial: Brass

Thread: BSP,NPT,Metric Thread

Service: OEM And ODM Business

Finish: No Finishing Or Sandblast

Basic Infomation

Place of Origin: China

Brand Name: grandmfg

Model Number: 1/2",3/4",1",11/2",11/4",13/4",2"

Payment & Shipping Terms

Packaging Details: exporting packaging

Delivery Time: 45 work days

Payment Terms: T/T

Supply Ability: 100000/month

Gallery

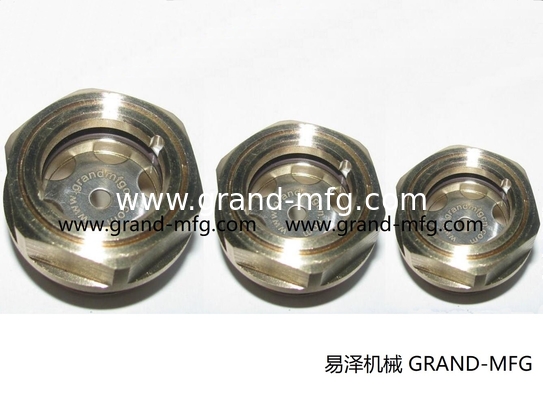

Metric thread M18x1.5 M22x1.5 M26x1.5 M27X1.5 M33X2 M60X2 circular oil level sight glass supplier and manufacturer

Product Description

Material Body: Brass

O-Ring: Viton,FKM,NBR, Aramid gasket and Copper seal

Glass Thickness: 2mm to 5 mm

Reflectors: Stainless Steel 304 Reflector

(Any type you can chose with reflector or without Reflector, You also can add float ball.)

Glass Type: Natural Glass,Tempered Glass and Borosilicate Glass

Resist Tempreature Range:-30'C to 120'C

Pressure Range: 5-10 Bar(0.5MPa to 1 MPa).

Thread type:NPT,NPTF,UNC,UNF,Metric and BSP(G thread)

Size: Below you will get the size you wanted.Another size is okay.OEM are welcome.

Usage: Pump,Oil Receivers,Gearboxes,Speed Reducer,Compressor and Power Transimission.

item	brass sight glasses
material	brass
O-Ring	Viton,FKM,NBR, Aramid gasket and Copper seal
window	Natural Glass,Tempered Glass and Borosilicate Glass
Glass Thickness	2mm to 5 mm
Reflectors	Stainless Steel 304 Reflector (Any type you can chose with reflector or without Reflector, You also can add float ball.)
Resist Tempreature Range	.-30'C TO 120'C
Pressure Range	5-10 Bar(0.5MPa to 1 MPa).
Thread type	NPT,NPTF,UNC,UNF,Metric and BSP(G thread)

Metric thread M18x1.5 M22x1.5 M26x1.5 M27X1.5 M33X2 M60X2 circular oil level sight glass supplier and manufacturer 0

item	aluminum sight glasses
material body	Aluminum 6061 T6/Aluminum 6063
O-Ring	Viton,FKM,NBR, Aramid gasket and Copper seal
window	Natural Glass,Tempered Glass and Borosilicate Glass
Glass Thickness	2mm to 5 mm
Reflectors	Stainless Steel 304 Reflector (Any type you can chose with reflector or without Reflector, You also can add float ball.)
Resist Tempreature Range	.-30'C TO 120'C
Pressure Range	5-10 Bar(0.5MPa to 1 MPa).
Thread type	UNC,UNF,Metric and BSP(G thread)
size	Below you will get the size you wanted.Another size is okay. OEM are welcome.
Usage	Pump,Oil Receivers,Gearboxes,Speed Reducer,Compressor and Power Transimission.

Metric thread M18x1.5 M22x1.5 M26x1.5 M27X1.5 M33X2 M60X2 circular oil level sight glass supplier and manufacturer 1

Item	Fused sight glass
Material	steel nickel plated
Window	Natural Glass
Glass Thickness	2mm to 5 mm
Working Tempreature	: －40℃～200℃
Temperature Assaults Date	: －40℃～180℃
Working Pressure	2.5, 4.0Mpa
Our products are provided with simple structure, novel appearance, high airproof, well poressure, good anti-cold concussion, marked clearly in the indication of liquid location etc characters, and favor of the spacious domestic and overseas air compressor producer deeply.

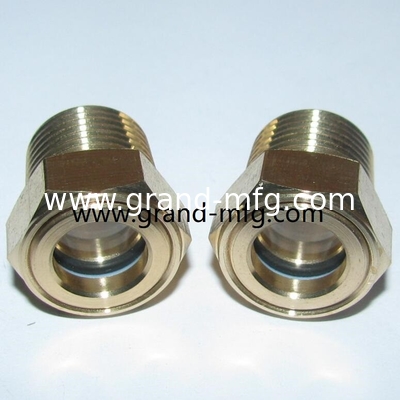

Metric thread M18x1.5 M22x1.5 M26x1.5 M27X1.5 M33X2 M60X2 circular oil level sight glass supplier and manufacturer 2

item	brass sight gauges
Housing	brass tube
tube	quartz glass tube
O-Ring and flat gaskets	NBR Rubber
Thread szie	M10x1, M12x1.5, M14x1.5, M16x1.5, G1/4”, G3/8”, G1/2”, NPT1/4, NPT3/8, NPT1/2”
Temperature resistant	: -20’C to 120 ‘C. / 0’F to 260 ‘F
Distance of two bolts	80mm to 600mm

Metric thread M18x1.5 M22x1.5 M26x1.5 M27X1.5 M33X2 M60X2 circular oil level sight glass supplier and manufacturer 4

item	Hydraulic oil level indicator
Housing	Aluminum alloy housing and inside thermoplastic (PC)
O-Ring and flat gaskets	NBR Rubber
Reflector	aluminum with printed white
Bolt	M10 Hexagon nut and washer in galvanized steel
Temperature resistant	: -20’C to 100 ‘C. / 0’F to 220 ‘F
Distance of two bolts	50mm to 500mm
Usage	Thin-wall container, Radiator, Hydraulic reservoir and receivers.

Metric thread M18x1.5 M22x1.5 M26x1.5 M27X1.5 M33X2 M60X2 circular oil level sight glass supplier and manufacturer 5

item	sight glasses,oil gauges
	oil drain plugs,steel plugs
	breather vent plugs
	auto radiator parts
	magnetic drain plugs
	precision machined parts(brass,steel,stainless steel,aluminum) hydraulic steel fittings OEM and ODM business welcome.
