Name: NPT / BSP / G thread 1/4“，1/2",3/4" Oil liquid level gauges for oil tanks
Brand: Grand Hardware Manufacturing Co.,Ltd
SKU: 1/2", 3/8",3/4"
Price: 4.80 USD
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Material: Brass Hpb57-3

Thread: BSP,NPT,Metric Thread

Finish: No Finishing

Window: Natural Glass

Glass Thickness: 2mm-5mm

Basic Infomation

Place of Origin: China

Brand Name: grandmfg

Model Number: 1/2", 3/8",3/4"

Payment & Shipping Terms

Packaging Details: exporting packaging

Delivery Time: 45 work days

Payment Terms: T/T

Supply Ability: 50000/month

Gallery

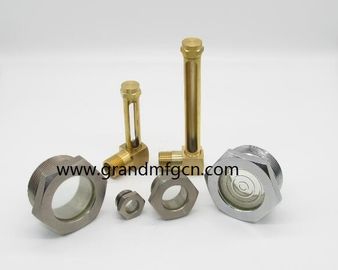

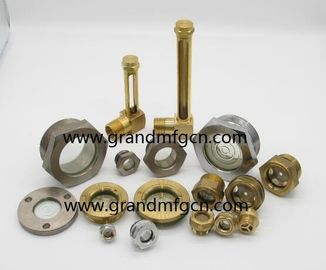

NPT / BSP / G thread 1/4“，1/2",3/4" Oil liquid level gauges for oil tanks

Product Description

Housing: Brass Tube .

Tube: Real glass tube.

O-Ring and flat gaskets: NBR Rubber.

Thread szie: M10x1, M12x1.5, M14x1.5, M16x1.5, G1/4”, G3/8”, G1/2”, NPT1/4, NPT3/8, NPT1/2”

Temperature resistant: -20’C to 120 ‘C. / 0’F to 260 ‘F

Distance of two bolts: 80mm to 600mm

Usage: Pump, Thin-wall container, Radiator, Hydraulic reservoir, receivers, Gearboxes, Speed Reducer, Compressor and Power Transmission.

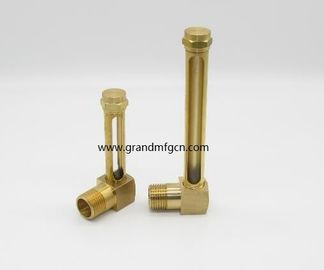

item	brass sight gauges
Housing	brass tube
tube	quartz glass tube
O-Ring and flat gaskets	NBR Rubber
Thread szie	M10x1, M12x1.5, M14x1.5, M16x1.5, G1/4”, G3/8”, G1/2”, NPT1/4, NPT3/8, NPT1/2”
Temperature resistant	: -20’C to 120 ‘C. / 0’F to 260 ‘F
Distance of two bolts	80mm to 600mm

NPT / BSP / G thread 1/4“，1/2",3/4" Oil liquid level gauges for oil tanks 0

NPT / BSP / G thread 1/4“，1/2",3/4" Oil liquid level gauges for oil tanks 4

item	plastic sight glasses
material	plastic
seal	NBR
Reflectors	Plastic PMMA
Resist Tempreature Range	: -30'C to 70'C
Pressure Range	5-10 Bar(0.5MPa to 1 MPa).
Thread type	Metric and BSP(G thread)

NPT / BSP / G thread 1/4“，1/2",3/4" Oil liquid level gauges for oil tanks 5

item	Hydraulic oil level indicator
Housing	Aluminum alloy housing and inside thermoplastic (PC)
O-Ring and flat gaskets	NBR Rubber
Reflector	aluminum with printed white
Bolt	M10 Hexagon nut and washer in galvanized steel
Temperature resistant	: -20’C to 100 ‘C. / 0’F to 220 ‘F
Distance of two bolts	50mm to 500mm
Usage	Thin-wall container, Radiator, Hydraulic reservoir and receivers.

NPT / BSP / G thread 1/4“，1/2",3/4" Oil liquid level gauges for oil tanks 6

item	brass sight glasses
material	brass
O-Ring	Viton,FKM,NBR, Aramid gasket and Copper seal
window	Natural Glass,Tempered Glass and Borosilicate Glass
Glass Thickness	2mm to 5 mm
Reflectors	Stainless Steel 304 Reflector (Any type you can chose with reflector or without Reflector, You also can add float ball.)
Resist Tempreature Range	.-30'C TO 120'C
Pressure Range	5-10 Bar(0.5MPa to 1 MPa).
Thread type	NPT,NPTF,UNC,UNF,Metric and BSP(G thread)

NPT / BSP / G thread 1/4“，1/2",3/4" Oil liquid level gauges for oil tanks 7
