Npt 1/2 inch,3/4 inch,1 inch,1-1/4 inch,1-1/2 inch compressor brass oil level peep sights with FKM O-ring

1000pcs
MOQ
$ 0.8-10 pcs
Price
Npt 1/2 inch,3/4 inch,1 inch,1-1/4 inch,1-1/2 inch compressor brass oil level peep sights with FKM O-ring
Features Gallery Product Description Request A Quote
Features
Specifications
Material: Brass Hpb57-3
Connection: Thread
O-ring: Viton,FKM
Finish: Natural
Window: Borosilicate Glass(Pyrex Glass)
Basic Infomation
Place of Origin: China
Brand Name: grandmfg
Model Number: 1/2",3/4",1",11/2",11/4",13/4",2"
Payment & Shipping Terms
Packaging Details: exporting packaging or as required.
Delivery Time: 45 work days
Payment Terms: T/T
Supply Ability: 100000/month
Product Description

Material Body: Brass

O-Ring: Viton,FKM,NBR, Aramid gasket and Copper seal

Glass Thickness: 2mm to 5 mm

Reflectors: Stainless Steel 304 Reflector

(Any type you can chose with reflector or without Reflector, You also can add float ball.)

Glass Type: Natural Glass,Tempered Glass and Borosilicate Glass

Resist Tempreature Range:-30'C to 120'C

Pressure Range: 5-10 Bar(0.5MPa to 1 MPa).

Thread type:NPT,NPTF,UNC,UNF,Metric and BSP(G thread) are available.



SIZE: 3/8" 1/2" 3/4" 1" 1;1/4" 1;1/2" 2" other special sizes customized NPT pipe thread



Npt 1/2 inch,3/4 inch,1 inch,1-1/4 inch,1-1/2 inch compressor brass oil level peep sights with FKM O-ring 0

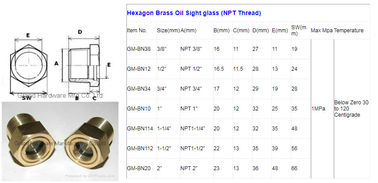

Size: Below you will get the size you wanted.Another size is okay.OEM are welcome.

Usage: Pump,Oil Receivers,Gearboxes,Speed Reducer,Compressor and Power Transimission.
