Home /Products/Brass Oil Sight Glass/male NPT pipe threads 1/2 inch oil sites with Pyrex glass for truck radiators with natural glass window Brass Oil Sight Glass for Pump Gearboxes Compressor and Power Transmission

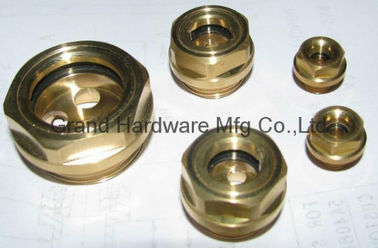

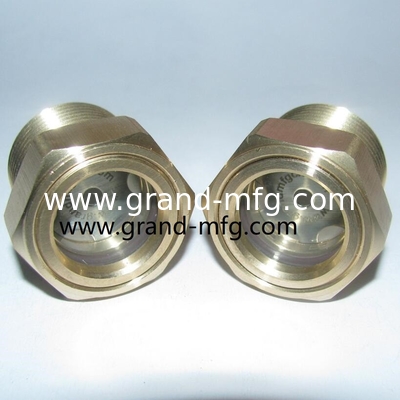

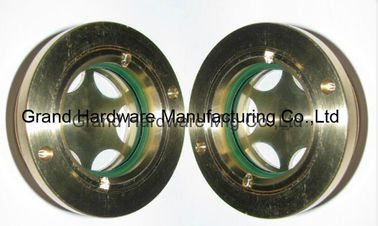

male NPT pipe threads 1/2 inch oil sites with Pyrex glass for truck radiators with natural glass window Brass Oil Sight Glass for Pump Gearboxes Compressor and Power Transmission

1000pcs
MOQ
$ 0.8-10 pcs
Price
male NPT pipe threads 1/2 inch oil sites with Pyrex glass for truck radiators with natural glass window Brass Oil Sight Glass for Pump Gearboxes Compressor and Power Transmission
Features Gallery Product Description Request A Quote
Features
Specifications
Material: Brass Hpb57-3
Thread: BSP,NPT,Metric Thread
Finish: Natural
Window: Borosilicate Glass(Pyrex Glass)
Glass Thickness: 2mm-5mm
Basic Infomation
Place of Origin: China
Brand Name: grand-mfg
Model Number: 1/2",3/4",1",11/2",11/4",13/4",2"
Payment & Shipping Terms
Packaging Details: exporting packaging
Delivery Time: 45 work days
Payment Terms: T/T
Supply Ability: 100000/month
Product Description

Material Body: Brass

O-Ring: Viton,FKM,NBR, Aramid gasket and Copper seal

Glass Thickness: 2mm to 5 mm

Reflectors: Stainless Steel 304 Reflector

(Any type you can chose with reflector or without Reflector, You also can add float ball.)

Glass Type: Natural Glass,Tempered Glass and Borosilicate Glass

Resist Tempreature Range:-30'C to 120'C

Pressure Range: 5-10 Bar(0.5MPa to 1 MPa).

Thread type:NPT,NPTF,UNC,UNF,Metric and BSP(G thread)

Size: Below you will get the size you wanted.Another size is okay.OEM are welcome.

Usage: Pump,Oil Receivers,Gearboxes,Speed Reducer,Compressor and Power Transimission.

male NPT pipe threads 1/2 inch oil sites with Pyrex glass for truck radiators with natural glass window Brass Oil Sight Glass for Pump Gearboxes Compressor and Power Transmission 0



item brass sight glasses
material brass
O-Ring Viton,FKM,NBR, Aramid gasket and Copper seal
window Natural Glass,Tempered Glass and Borosilicate Glass
Glass Thickness 2mm to 5 mm
Reflectors Stainless Steel 304 Reflector

(Any type you can chose with reflector or without Reflector, You also can add float ball.)
Resist Tempreature Range .-30'C TO 120'C
Pressure Range 5-10 Bar(0.5MPa to 1 MPa).
Thread type NPT,NPTF,UNC,UNF,Metric and BSP(G thread)



male NPT pipe threads 1/2 inch oil sites with Pyrex glass for truck radiators with natural glass window Brass Oil Sight Glass for Pump Gearboxes Compressor and Power Transmission 1



item SS sight glasses
material Stainless steel 304,Stainless steel 304L,Stainless Steel 316,
Stainless steel 316L
O-Ring Viton,FKM,NBR, Aramid gasket and Copper seal
window Natural Glass,Tempered Glass and Borosilicate Glass
Glass Thickness 2mm to 5 mm
Reflectors Stainless Steel 304 Reflector

(Any type you can chose with reflector or without Reflector, You also can add float ball.)
Resist Tempreature Range .-30'C TO 120'C
Pressure Range 5-10 Bar(0.5MPa to 1 MPa).
Thread type NPT,NPTF,UNC,UNF,Metric and BSP(G thread)



male NPT pipe threads 1/2 inch oil sites with Pyrex glass for truck radiators with natural glass window Brass Oil Sight Glass for Pump Gearboxes Compressor and Power Transmission 2



item aluminum sight glasses
material body Aluminum 6061 T6/Aluminum 6063
O-Ring Viton,FKM,NBR, Aramid gasket and Copper seal
window Natural Glass,Tempered Glass and Borosilicate Glass
Glass Thickness 2mm to 5 mm
Reflectors Stainless Steel 304 Reflector
(Any type you can chose with reflector or without Reflector, You also can add float ball.)
Resist Tempreature Range .-30'C TO 120'C
Pressure Range 5-10 Bar(0.5MPa to 1 MPa).
Thread type UNC,UNF,Metric and BSP(G thread)
size Below you will get the size you wanted.Another size is okay.
OEM are welcome.
Usage Pump,Oil Receivers,Gearboxes,Speed Reducer,Compressor and Power Transimission.



male NPT pipe threads 1/2 inch oil sites with Pyrex glass for truck radiators with natural glass window Brass Oil Sight Glass for Pump Gearboxes Compressor and Power Transmission 3



item brass sight gauges
Housing brass tube
tube quartz glass tube
O-Ring and flat gaskets NBR Rubber
Thread szie M10x1, M12x1.5, M14x1.5, M16x1.5, G1/4”, G3/8”,
G1/2”, NPT1/4, NPT3/8, NPT1/2”
Temperature resistant : -20’C to 120 ‘C. / 0’F to 260 ‘F
Distance of two bolts 80mm to 600mm



male NPT pipe threads 1/2 inch oil sites with Pyrex glass for truck radiators with natural glass window Brass Oil Sight Glass for Pump Gearboxes Compressor and Power Transmission 4male NPT pipe threads 1/2 inch oil sites with Pyrex glass for truck radiators with natural glass window Brass Oil Sight Glass for Pump Gearboxes Compressor and Power Transmission 5



Just please contact us for checking our stocks and confirming the specifications.
