Name: male NPT pipe thread 1/4 inch high pressure brass flow indicators oil level check sight glasses radiators
Brand: grandmfg
SKU: 1/2",3/4",1",11/2",11/4",13/4",2"
Price: 0.8 USD
Availability: InStock
Rating: 4.8 (112 reviews)

Features Gallery Product Description Request A Quote

Features

Specifications

Material: Brass Hpb57-3

Thread: BSP,NPT,Metric Thread

Finish: No Finishing

Window: Temper Glass,Borosilicate Glass(Pyrex Glass)

Glass Thickness: 2mm-5mm

Basic Infomation

Place of Origin: China

Brand Name: grandmfg

Model Number: 1/2",3/4",1",11/2",11/4",13/4",2"

Payment & Shipping Terms

Packaging Details: exporting packaging

Delivery Time: 45 work days

Payment Terms: T/T

Supply Ability: 100000/month

Gallery

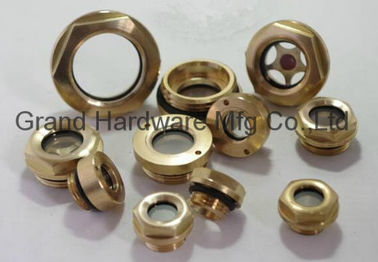

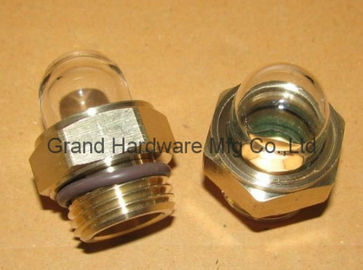

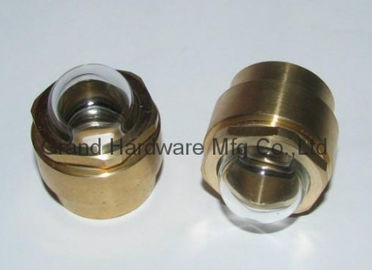

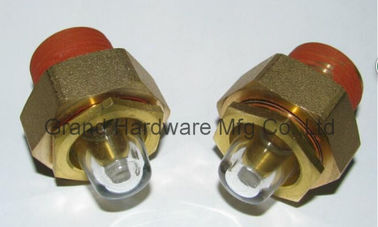

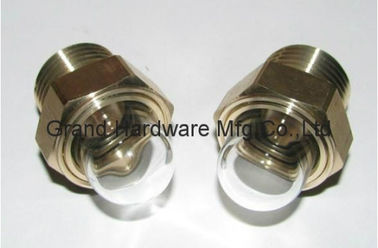

male NPT pipe thread 1/4 inch high pressure brass flow indicators oil level check sight glasses radiators

Product Description

Material Body: Brass
O-Ring: Viton,FKM,NBR, Aramid gasket and Copper seal
Glass Thickness: 2mm to 5 mm
Reflectors: Stainless Steel 304 Reflector
(Any type you can chose with reflector or without Reflector, You also can add float ball.)
Glass Type: Natural Glass,Tempered Glass and Borosilicate Glass
Resist Tempreature Range:-30'C to 120'C
Pressure Range: 5-10 Bar(0.5MPa to 1 MPa).
Thread type:NPT,NPTF,UNC,UNF,Metric and BSP(G thread)
Size: Below you will get the size you wanted.Another size is okay.OEM are welcome.
Usage: Pump,Oil Receivers,Gearboxes,Speed Reducer,Compressor and Power Transimission.

item	brass sight glasses
material	brass
O-Ring	Viton,FKM,NBR, Aramid gasket and Copper seal
window	Natural Glass,Tempered Glass and Borosilicate Glass
Glass Thickness	2mm to 5 mm
Reflectors	Stainless Steel 304 Reflector (Any type you can chose with reflector or without Reflector, You also can add float ball.)
Resist Tempreature Range	.-30'C TO 120'C
Pressure Range	5-10 Bar(0.5MPa to 1 MPa).
Thread type	NPT,NPTF,UNC,UNF,Metric and BSP(G thread)

male NPT pipe thread 1/4 inch high pressure brass flow indicators oil level check sight glasses radiators 0

item	aluminum sight glasses
material body	Aluminum 6061 T6/Aluminum 6063
O-Ring	Viton,FKM,NBR, Aramid gasket and Copper seal
window	Natural Glass,Tempered Glass and Borosilicate Glass
Glass Thickness	2mm to 5 mm
Reflectors	Stainless Steel 304 Reflector (Any type you can chose with reflector or without Reflector, You also can add float ball.)
Resist Tempreature Range	.-30'C TO 120'C
Pressure Range	5-10 Bar(0.5MPa to 1 MPa).
Thread type	UNC,UNF,Metric and BSP(G thread)
size	Below you will get the size you wanted.Another size is okay. OEM are welcome.
Usage	Pump,Oil Receivers,Gearboxes,Speed Reducer,Compressor and Power Transimission.

male NPT pipe thread 1/4 inch high pressure brass flow indicators oil level check sight glasses radiators 3

item	SS sight glasses
material	Stainless steel 304,Stainless steel 304L,Stainless Steel 316, Stainless steel 316L
O-Ring	Viton,FKM,NBR, Aramid gasket and Copper seal
window	Natural Glass,Tempered Glass and Borosilicate Glass
Glass Thickness	2mm to 5 mm
Reflectors	Stainless Steel 304 Reflector (Any type you can chose with reflector or without Reflector, You also can add float ball.)
Resist Tempreature Range	.-30'C TO 120'C
Pressure Range	5-10 Bar(0.5MPa to 1 MPa).
Thread type	NPT,NPTF,UNC,UNF,Metric and BSP(G thread)

male NPT pipe thread 1/4 inch high pressure brass flow indicators oil level check sight glasses radiators 5

item	brass sight gauges
Housing	brass tube
tube	quartz glass tube
O-Ring and flat gaskets	NBR Rubber
Thread szie	M10x1, M12x1.5, M14x1.5, M16x1.5, G1/4”, G3/8”, G1/2”, NPT1/4, NPT3/8, NPT1/2”
Temperature resistant	: -20’C to 120 ‘C. / 0’F to 260 ‘F
Distance of two bolts	80mm to 600mm

male NPT pipe thread 1/4 inch high pressure brass flow indicators oil level check sight glasses radiators 6

item	Hydraulic oil level indicator
Housing	Aluminum alloy housing and inside thermoplastic (PC)
O-Ring and flat gaskets	NBR Rubber
Reflector	aluminum with printed white
Bolt	M10 Hexagon nut and washer in galvanized steel
Temperature resistant	: -20’C to 100 ‘C. / 0’F to 220 ‘F
Distance of two bolts	50mm to 500mm
Usage	Thin-wall container, Radiator, Hydraulic reservoir and receivers.

male NPT pipe thread 1/4 inch high pressure brass flow indicators oil level check sight glasses radiators 7

item	plastic sight glasses
material	plastic
seal	NBR
Reflectors	Plastic PMMA
Resist Tempreature Range	: -30'C to 70'C
Pressure Range	5-10 Bar(0.5MPa to 1 MPa).
Thread type	Metric and BSP(G thread)

male NPT pipe thread 1/4 inch high pressure brass flow indicators oil level check sight glasses radiators 8

Please contact us for checking our stocks and confirming the specifications.
