Home /Products/Brass Oil Sight Glass/Male NPT Thread 1/4 Inch Radiator Brass Sight Windows With Natural Glass Window Brass Oil Sight Glass for Pump Gearboxes and More Brass Material Various Glass Types and Custom Sizes Availabl

Male NPT Thread 1/4 Inch Radiator Brass Sight Windows With Natural Glass Window Brass Oil Sight Glass for Pump Gearboxes and More Brass Material Various Glass Types and Custom Sizes Availabl

1000pcs
MOQ
$ 0.8-10 pcs
Price
Male NPT Thread 1/4 Inch Radiator Brass Sight Windows With Natural Glass Window Brass Oil Sight Glass for Pump Gearboxes and More Brass Material Various Glass Types and Custom Sizes Availabl
Features Gallery Product Description Request A Quote
Features
Specifications
Material: Brass Hpb57-3
Thread: BSP,NPT,Metric Thread
Finish: Natural
Window: Natural Glass
Glass Thickness: 2mm-5mm
Basic Infomation
Place of Origin: China
Brand Name: grand-mfg
Model Number: 1/2",3/4",1",11/2",11/4",13/4",2"
Payment & Shipping Terms
Packaging Details: exporting packaging
Delivery Time: 45 work days
Payment Terms: T/T
Supply Ability: 100000/month
Product Description



Material Body: Brass

O-Ring: Viton,FKM,NBR, Aramid gasket and Copper seal

Glass Thickness: 2mm to 5 mm

Reflectors: Stainless Steel 304 Reflector

(Any type you can chose with reflector or without Reflector, You also can add float ball.)

Glass Type: Natural Glass,Tempered Glass and Borosilicate Glass

Resist Tempreature Range:-30'C to 120'C

Pressure Range: 5-10 Bar(0.5MPa to 1 MPa).

Thread type:NPT,NPTF,UNC,UNF,Metric and BSP(G thread)

Size: Below you will get the size you wanted.Another size is okay.OEM are welcome.

Usage: Pump,Oil Receivers,Gearboxes,Speed Reducer,Compressor and Power Transimission.



item brass sight glasses
material brass
O-Ring Viton,FKM,NBR, Aramid gasket and Copper seal
window Natural Glass,Tempered Glass and Borosilicate Glass
Glass Thickness 2mm to 5 mm
Reflectors Stainless Steel 304 Reflector

(Any type you can chose with reflector or without Reflector, You also can add float ball.)
Resist Tempreature Range .-30'C TO 120'C
Pressure Range 5-10 Bar(0.5MPa to 1 MPa).
Thread type NPT,NPTF,UNC,UNF,Metric and BSP(G thread)

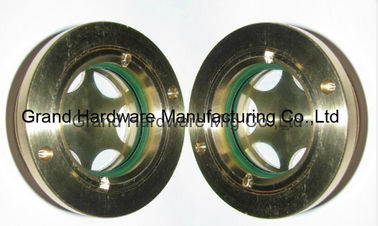

Male NPT Thread 1/4 Inch Radiator Brass Sight Windows With Natural Glass Window Brass Oil Sight Glass for Pump Gearboxes and More Brass Material Various Glass Types and Custom Sizes Availabl 0



other products supplied:



  brass machined parts
material Brass,Copper and Bronze.
finish Natural,Polished,Nickel plated and Chrome Plated
Processing Brass Hot Forged,Bronze Sand Castings,CNC machining, CNC turning or CNC Lathing,Milling,Sandblasted
Dimension Tolerance: CNC Lathe +/-0.01 mm.
General Lathe +/-0.1 to 0.2 mm

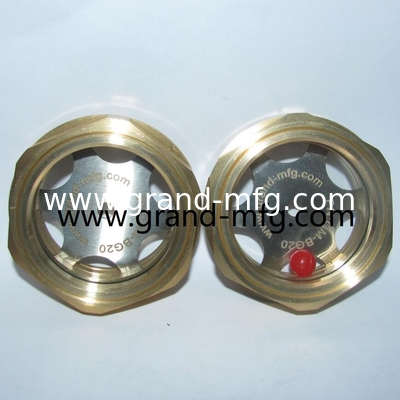

Male NPT Thread 1/4 Inch Radiator Brass Sight Windows With Natural Glass Window Brass Oil Sight Glass for Pump Gearboxes and More Brass Material Various Glass Types and Custom Sizes Availabl 1

item aluminum sight glasses
material body Aluminum 6061 T6/Aluminum 6063
O-Ring Viton,FKM,NBR, Aramid gasket and Copper seal
window Natural Glass,Tempered Glass and Borosilicate Glass
Glass Thickness 2mm to 5 mm
Reflectors Stainless Steel 304 Reflector
(Any type you can chose with reflector or without Reflector, You also can add float ball.)
Resist Tempreature Range .-30'C TO 120'C
Pressure Range 5-10 Bar(0.5MPa to 1 MPa).
Thread type UNC,UNF,Metric and BSP(G thread)
size Below you will get the size you wanted.Another size is okay.
OEM are welcome.
Usage Pump,Oil Receivers,Gearboxes,Speed Reducer,Compressor and Power Transimission.

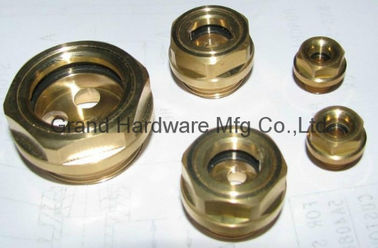

Male NPT Thread 1/4 Inch Radiator Brass Sight Windows With Natural Glass Window Brass Oil Sight Glass for Pump Gearboxes and More Brass Material Various Glass Types and Custom Sizes Availabl 2

item SS sight glasses
material Stainless steel 304,Stainless steel 304L,Stainless Steel 316,
Stainless steel 316L
O-Ring Viton,FKM,NBR, Aramid gasket and Copper seal
window Natural Glass,Tempered Glass and Borosilicate Glass
Glass Thickness 2mm to 5 mm
Reflectors Stainless Steel 304 Reflector

(Any type you can chose with reflector or without Reflector, You also can add float ball.)
Resist Tempreature Range .-30'C TO 120'C
Pressure Range 5-10 Bar(0.5MPa to 1 MPa).
Thread type NPT,NPTF,UNC,UNF,Metric and BSP(G thread)

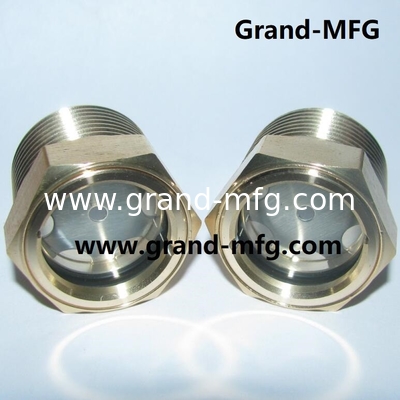

Male NPT Thread 1/4 Inch Radiator Brass Sight Windows With Natural Glass Window Brass Oil Sight Glass for Pump Gearboxes and More Brass Material Various Glass Types and Custom Sizes Availabl 3

item Radiator Coolant Filler Necks & Cap
material SUS304,Steel,aluminum and brass.
Main area used Various brands of car,truck,etc.
Withstand Max Pressure 0.6MPa,0.9MPa and 1.1MPa
All goods are strictly monitored and inspected from production to delivery.
Transportation: Container Freight & International Multimodal Transport
Packing: General exporting package or according to customers' requirements.



Just please contact us for checking our stocks and confirming the specification.
