NPT,BSP,G thread,Metric thread1/4“，1/2",3/4", 1", 11/4",11/2",2" Oil liquid level gauges

1000pcs
MOQ
$ 0.8-10 pcs
Price
NPT,BSP,G thread,Metric thread1/4“，1/2",3/4", 1", 11/4",11/2",2" Oil liquid level gauges
Features Gallery Product Description Request A Quote
Features
Specifications
Material: Brass Hpb57-3
Thread: BSP,NPT,Metric Thread
Finish: No Finishing
Window: Natural Glass
Glass Thickness: 2mm-5mm
Basic Infomation
Place of Origin: China
Brand Name: grandmfg
Model Number: 1/2",3/4",1",11/2",11/4",13/4",2"
Payment & Shipping Terms
Packaging Details: exporting packaging
Delivery Time: 45 work days
Payment Terms: T/T
Supply Ability: 50000/month
Product Description

Housing: Brass Tube .

Tube: Real glass tube.

O-Ring and flat gaskets: NBR Rubber.

Thread szie: M10x1, M12x1.5, M14x1.5, M16x1.5, G1/4”, G3/8”, G1/2”, NPT1/4, NPT3/8, NPT1/2”

Temperature resistant: -20’C to 120 ‘C. / 0’F to 260 ‘F

Distance of two bolts: 80mm to 600mm

Usage: Pump, Thin-wall container, Radiator, Hydraulic reservoir, receivers, Gearboxes, Speed Reducer, Compressor and Power Transmission.

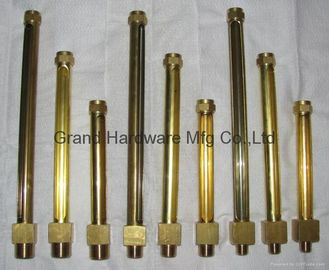

item brass sight gauges
Housing brass tube
tube quartz glass tube
O-Ring and flat gaskets NBR Rubber
Thread szie M10x1, M12x1.5, M14x1.5, M16x1.5, G1/4”, G3/8”,
G1/2”, NPT1/4, NPT3/8, NPT1/2”
Temperature resistant : -20’C to 120 ‘C. / 0’F to 260 ‘F
Distance of two bolts 80mm to 600mm



NPT,BSP,G thread,Metric thread1/4“，1/2",3/4", 1", 11/4",11/2",2" Oil liquid level gauges 0

item plastic sight glasses
material plastic
seal NBR
Reflectors Plastic PMMA
Resist Tempreature Range : -30'C to 70'C
Pressure Range 5-10 Bar(0.5MPa to 1 MPa).
Thread type Metric and BSP(G thread)

NPT,BSP,G thread,Metric thread1/4“，1/2",3/4", 1", 11/4",11/2",2" Oil liquid level gauges 1

item Hydraulic oil level indicator
Housing Aluminum alloy housing and inside thermoplastic (PC)
O-Ring and flat gaskets NBR Rubber
Reflector aluminum with printed white
Bolt M10 Hexagon nut and washer in galvanized steel
Temperature resistant : -20’C to 100 ‘C. / 0’F to 220 ‘F
Distance of two bolts 50mm to 500mm
Usage Thin-wall container, Radiator, Hydraulic reservoir and receivers.

NPT,BSP,G thread,Metric thread1/4“，1/2",3/4", 1", 11/4",11/2",2" Oil liquid level gauges 2



item brass sight glasses
material brass
O-Ring Viton,FKM,NBR, Aramid gasket and Copper seal
window Natural Glass,Tempered Glass and Borosilicate Glass
Glass Thickness 2mm to 5 mm
Reflectors Stainless Steel 304 Reflector

(Any type you can chose with reflector or without Reflector, You also can add float ball.)
Resist Tempreature Range .-30'C TO 120'C
Pressure Range 5-10 Bar(0.5MPa to 1 MPa).
Thread type NPT,NPTF,UNC,UNF,Metric and BSP(G thread)



NPT,BSP,G thread,Metric thread1/4“，1/2",3/4", 1", 11/4",11/2",2" Oil liquid level gauges 3NPT,BSP,G thread,Metric thread1/4“，1/2",3/4", 1", 11/4",11/2",2" Oil liquid level gauges 4NPT,BSP,G thread,Metric thread1/4“，1/2",3/4", 1", 11/4",11/2",2" Oil liquid level gauges 5
