Home /Products/Plastic oil sight Glass/BSP,G thread,Metric thread 1/2",3/4",1",11/4",11/2"13/4" Hexagon Plastic Visual level sight glass

BSP,G thread,Metric thread 1/2",3/4",1",11/4",11/2"13/4" Hexagon Plastic Visual level sight glass

1000pcs
MOQ
$ 0.8-10 pcs
Price
BSP,G thread,Metric thread 1/2",3/4",1",11/4",11/2"13/4" Hexagon Plastic Visual level sight glass
Features Gallery Product Description Request A Quote
Features
Specifications
Material: Plastic
Thread: BSP,Metric Thread
Window: Natural Glass
Glass Thickness: 2mm-5mm
Service: OEM And ODM Business
Basic Infomation
Place of Origin: China
Brand Name: grandmfg
Model Number: 1/2",3/4",1",11/2",11/4",13/4",2"
Payment & Shipping Terms
Packaging Details: exporting packaging
Delivery Time: 45 work days
Payment Terms: T/T
Supply Ability: 100000/month
Product Description

Material Body: Plastic PMMA

Seal: NBR

Reflectors: Plastic PMMA


Resist Tempreature Range:-30'C to 70'C

Pressure Range: 1-5 Bar(0.1MPa to 0.5 MPa).

Thread type:,Metric and BSP(G thread)

Size: Below you will get the size you wanted.Another size is okay.OEM are welcome.

Usage: Pump,Oil Receivers,Gearboxes,Speed Reducer,Compressor and Power Transimission.

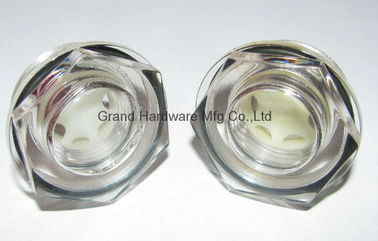

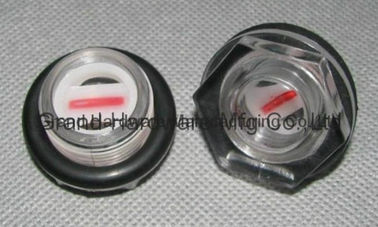

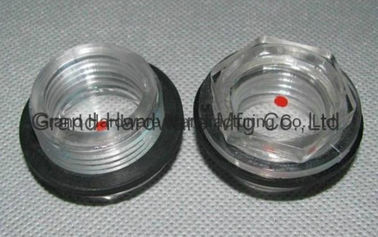

Item plastic sight glasses
Material Plastic PMMA
Window plastic
Reflectors Plastic PMMA
Resist Tempreature Range :-30'C to 70'C
Pressure Range 1-5 Bar(0.1MPa to 0.5 MPa).
Size Below you will get the size you wanted.Another size is okay.OEM are welcome.
Usage Pump,Oil Receivers,Gearboxes,Speed Reducer,Compressor and Power Transimission.



BSP,G thread,Metric thread 1/2",3/4",1",11/4",11/2"13/4" Hexagon Plastic Visual level sight glass 0BSP,G thread,Metric thread 1/2",3/4",1",11/4",11/2"13/4" Hexagon Plastic Visual level sight glass 1BSP,G thread,Metric thread 1/2",3/4",1",11/4",11/2"13/4" Hexagon Plastic Visual level sight glass 2

Item Fused sight glass
Material steel nickel plated
Window Natural Glass
Glass Thickness 2mm to 5 mm
Working Tempreature : －40℃～200℃
Temperature Assaults Date : －40℃～180℃
Working Pressure 2.5, 4.0Mpa
Our products are provided with simple structure, novel appearance, high airproof,
well poressure, good anti-cold concussion, marked clearly in the indication of
liquid location etc characters, and favor of the spacious domestic and overseas
air compressor producer deeply.



BSP,G thread,Metric thread 1/2",3/4",1",11/4",11/2"13/4" Hexagon Plastic Visual level sight glass 3BSP,G thread,Metric thread 1/2",3/4",1",11/4",11/2"13/4" Hexagon Plastic Visual level sight glass 4

Item Flat flange sight glass
Material steel nickel plated
Window Natural Glass
Glass Thickness 2mm to 5 mm
Working Tempreature : －40℃～200℃
Temperature Assaults Date : －40℃～180℃
Working Pressure 2.5, 4.0Mpa
Our products are provided with simple structure, novel appearance, high airproof,
well poressure, good anti-cold concussion, marked clearly in the indication of
liquid location etc characters, and favor of the spacious domestic and overseas
air compressor producer deeply.



BSP,G thread,Metric thread 1/2",3/4",1",11/4",11/2"13/4" Hexagon Plastic Visual level sight glass 5BSP,G thread,Metric thread 1/2",3/4",1",11/4",11/2"13/4" Hexagon Plastic Visual level sight glass 6

item SS sight glasses
material Stainless steel 304,Stainless steel 304L,Stainless Steel 316,
Stainless steel 316L
O-Ring Viton,FKM,NBR, Aramid gasket and Copper seal
window Natural Glass,Tempered Glass and Borosilicate Glass
Glass Thickness 2mm to 5 mm
Reflectors Stainless Steel 304 Reflector

(Any type you can chose with reflector or without Reflector, You also can add float ball.)
Resist Tempreature Range .-30'C TO 120'C
Pressure Range 5-10 Bar(0.5MPa to 1 MPa).
Thread type NPT,NPTF,UNC,UNF,Metric and BSP(G thread)



BSP,G thread,Metric thread 1/2",3/4",1",11/4",11/2"13/4" Hexagon Plastic Visual level sight glass 7BSP,G thread,Metric thread 1/2",3/4",1",11/4",11/2"13/4" Hexagon Plastic Visual level sight glass 8

item steel sight glasses
material steel
O-Ring Viton,FKM,NBR, Aramid gasket and Copper seal
window Natural Glass,Tempered Glass and Borosilicate Glass
Glass Thickness 2mm to 5 mm
Reflectors Stainless Steel 304 Reflector

(Any type you can chose with reflector or without Reflector, You also can add float ball.)
Resist Tempreature Range .-30'C TO 120'C
Pressure Range 5-10 Bar(0.5MPa to 1 MPa).
Thread type NPT,NPTF,UNC,UNF,Metric and BSP(G thread)



BSP,G thread,Metric thread 1/2",3/4",1",11/4",11/2"13/4" Hexagon Plastic Visual level sight glass 9BSP,G thread,Metric thread 1/2",3/4",1",11/4",11/2"13/4" Hexagon Plastic Visual level sight glass 10
