Home /Products/Brass Oil Sight Glass/oil circulation sights (brass and natural glass window)NPT,BSP,Metric thread

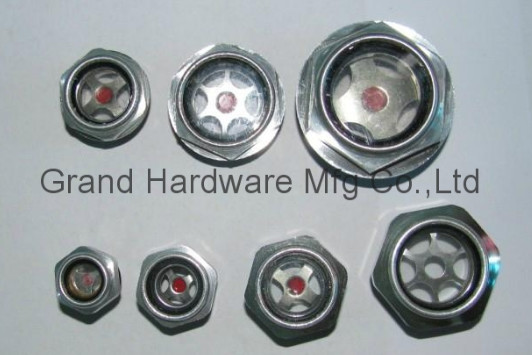

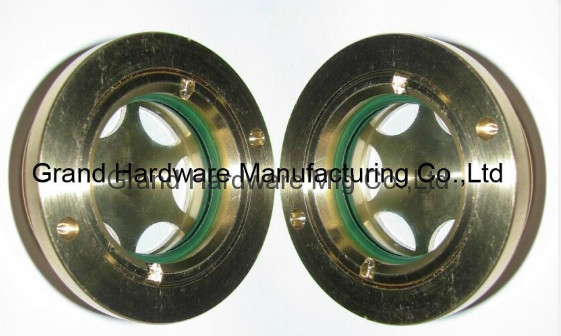

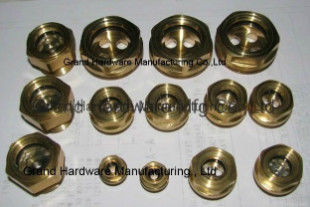

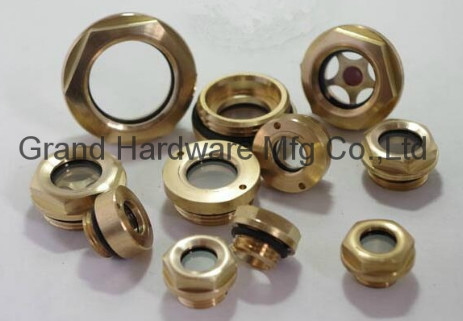

oil circulation sights (brass and natural glass window)NPT,BSP,Metric thread

1000pcs
MOQ
$ 0.8-10 pcs
Price
oil circulation sights (brass and natural glass window)NPT,BSP,Metric thread
Features Gallery Product Description Request A Quote
Features
Specifications
Material: Brass And Natural Glass Window
Size: 1/2",3/8"1/4,1",11/4",11/2",13/4",2"
Thread: BSP,NPT,Metric Thread
Service: OEM And ODM Business
Glass Thickness: 2mm-5mm
Basic Infomation
Place of Origin: China
Brand Name: grandmfg
Model Number: 1/2",3/4",1",11/2",11/4",13/4",2"
Payment & Shipping Terms
Packaging Details: exporting packaging
Delivery Time: 45 work days
Payment Terms: T/T
Supply Ability: 100000/month
Product Description

Material Body: Brass

O-Ring: Viton,FKM,NBR, Aramid gasket and Copper seal

Glass Thickness: 2mm to 5 mm

Reflectors: Stainless Steel 304 Reflector

(Any type you can chose with reflector or without Reflector, You also can add float ball.)

Glass Type: Natural Glass,Tempered Glass and Borosilicate Glass

Resist Tempreature Range:-30'C to 120'C

Pressure Range: 5-10 Bar(0.5MPa to 1 MPa).

Thread type:NPT,NPTF,UNC,UNF,Metric and BSP(G thread)

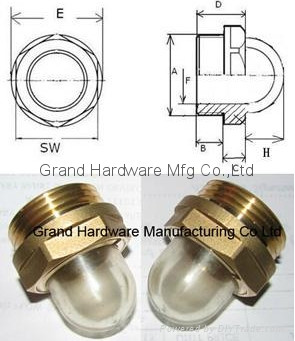

Size: Below you will get the size you wanted.Another size is okay.OEM are welcome.

Usage: Pump,Oil Receivers,Gearboxes,Speed Reducer,Compressor and Power Transimission.





item brass sight glasses
material brass
O-Ring Viton,FKM,NBR, Aramid gasket and Copper seal
window Natural Glass,Tempered Glass and Borosilicate Glass
Glass Thickness 2mm to 5 mm
Reflectors Stainless Steel 304 Reflector

(Any type you can chose with reflector or without Reflector, You also can add float ball.)
Resist Tempreature Range .-30'C TO 120'C
Pressure Range 5-10 Bar(0.5MPa to 1 MPa).
Thread type NPT,NPTF,UNC,UNF,Metric and BSP(G thread)



oil circulation sights (brass and natural glass window)NPT,BSP,Metric thread 0oil circulation sights (brass and natural glass window)NPT,BSP,Metric thread 1oil circulation sights (brass and natural glass window)NPT,BSP,Metric thread 2

oil circulation sights (brass and natural glass window)NPT,BSP,Metric thread 3

oil circulation sights (brass and natural glass window)NPT,BSP,Metric thread 4oil circulation sights (brass and natural glass window)NPT,BSP,Metric thread 4



Retail is available for some items in stock.Any more details please contact us.
