Home /Products/Brass Oil Sight Glass/Male Thread Tempered Glass Brass Bulls Eye Level Glass Gauge in NPT BSP Metric Thread 1 INCH,2 INCH,M42,M60X2 Brass Oil Sight Glass GM-BM42 GM-BM60

Male Thread Tempered Glass Brass Bulls Eye Level Glass Gauge in NPT BSP Metric Thread 1 INCH,2 INCH,M42,M60X2 Brass Oil Sight Glass GM-BM42 GM-BM60

1000pcs
MOQ
$ 0.8-10 pcs
Price
Male Thread Tempered Glass Brass Bulls Eye Level Glass Gauge in NPT BSP Metric Thread 1 INCH,2 INCH,M42,M60X2 Brass Oil Sight Glass GM-BM42 GM-BM60
Features Gallery Product Description Request A Quote
Features
Specifications
Material: Brass Hpb57-3 Or Customized
Glass: Natural Glass
Glass Thickness: 2mm-5mm
Basic Infomation
Place of Origin: China
Brand Name: grand-mfg
Certification: ISO9001
Model Number: 1/2",3/4",1",11/2",11/4",13/4",2"
Payment & Shipping Terms
Packaging Details: exporting packaging
Delivery Time: 45 work days
Payment Terms: T/T
Supply Ability: 100000/month
Product Description

Material Body: Brass

O-Ring: Viton,FKM,NBR, Aramid gasket and Copper seal

Glass Thickness: 2mm to 5 mm

Reflectors: Stainless Steel 304 Reflector

(Any type you can chose with reflector or without Reflector, You also can add float ball.)

Glass Type: Natural Glass,Tempered Glass and Borosilicate Glass

Resist Tempreature Range:-30'C to 120'C

Pressure Range: 5-10 Bar(0.5MPa to 1 MPa).

Thread type:NPT,NPTF,UNC,UNF,Metric and BSP(G thread)

Size: Below you will get the size you wanted.Another size is okay.OEM are welcome.

Usage: Pump,Oil Receivers,Gearboxes,Speed Reducer,Compressor and Power Transimission.

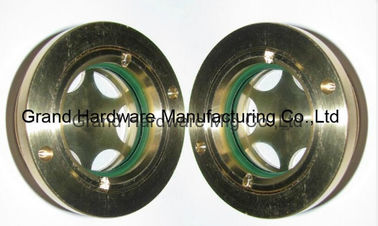

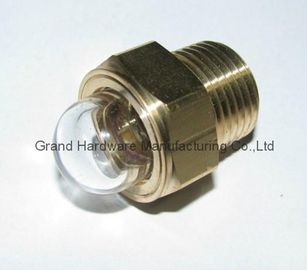

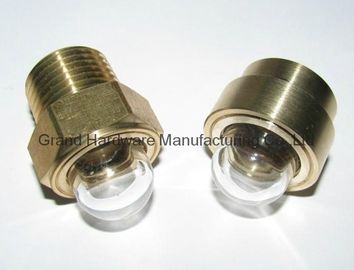

item brass sight glasses
material brass
O-Ring Viton,FKM,NBR, Aramid gasket and Copper seal
window Natural Glass,Tempered Glass and Borosilicate Glass
Glass Thickness 2mm to 5 mm
Reflectors Stainless Steel 304 Reflector

(Any type you can chose with reflector or without Reflector, You also can add float ball.)
Resist Tempreature Range .-30'C TO 120'C
Pressure Range 5-10 Bar(0.5MPa to 1 MPa).
Thread type NPT,NPTF,UNC,UNF,Metric and BSP(G thread)
item brass machined parts
material Brass,Copper and Bronze.
finish Natural,Polished,Nickel plated and Chrome Plated
Processing Brass Hot Forged,Bronze Sand Castings,CNC machining, CNC turning or CNC Lathing,Milling,Sandblasted
Dimension Tolerance: CNC Lathe +/-0.01 mm.
General Lathe +/-0.1 to 0.2 mm



Male Thread Tempered Glass Brass Bulls Eye Level Glass Gauge in NPT BSP Metric Thread 1 INCH,2 INCH,M42,M60X2 Brass Oil Sight Glass GM-BM42 GM-BM60 0



item brass sight gauges
Housing brass tube
tube quartz glass tube
O-Ring and flat gaskets NBR Rubber
Thread szie M10x1, M12x1.5, M14x1.5, M16x1.5, G1/4”, G3/8”,
G1/2”, NPT1/4, NPT3/8, NPT1/2”
Temperature resistant : -20’C to 120 ‘C. / 0’F to 260 ‘F
Distance of two bolts 80mm to 600mm
　 　
item Hydraulic oil level indicator
Housing Aluminum alloy housing and inside thermoplastic (PC)
O-Ring and flat gaskets NBR Rubber
Reflector aluminum with printed white
Bolt M10 Hexagon nut and washer in galvanized steel
Temperature resistant : -20’C to 100 ‘C. / 0’F to 220 ‘F
Distance of two bolts 50mm to 500mm
Usage Thin-wall container, Radiator, Hydraulic reservoir and receivers.
　 　
item plastic sight glasses
material plastic
seal NBR
Reflectors Plastic PMMA
Resist Tempreature Range : -30'C to 70'C
Pressure Range 5-10 Bar(0.5MPa to 1 MPa).
Thread type Metric and BSP(G thread)



Male Thread Tempered Glass Brass Bulls Eye Level Glass Gauge in NPT BSP Metric Thread 1 INCH,2 INCH,M42,M60X2 Brass Oil Sight Glass GM-BM42 GM-BM60 1Male Thread Tempered Glass Brass Bulls Eye Level Glass Gauge in NPT BSP Metric Thread 1 INCH,2 INCH,M42,M60X2 Brass Oil Sight Glass GM-BM42 GM-BM60 2



item Radiator Coolant Filler Necks & Cap
material SUS304,Steel,aluminum and brass.
Main area used Various brands of car,truck,etc.
Withstand Max Pressure 0.6MPa,0.9MPa and 1.1MPa
All goods are strictly monitored and inspected from production to delivery.
Transportation: Container Freight & International Multimodal Transport
Packing: General exporting package or according to customers' requirements.



Male Thread Tempered Glass Brass Bulls Eye Level Glass Gauge in NPT BSP Metric Thread 1 INCH,2 INCH,M42,M60X2 Brass Oil Sight Glass GM-BM42 GM-BM60 3
