Name: male NPT thread 11/4" natural brass Oil level indicator sight glass with borosilicate glass and natural glass
Brand: grandmfg
SKU: NPT1-1/4"
Rating: 4.8 (109 reviews)

Features Gallery Product Description Request A Quote

Features

Specifications

Material: Brass

Surface Treatment: No Finishing

Thread: NPT

Size: 1/2",3/8"1/4,1",1-1/4",1-1/2",1-3/4",2"

Basic Infomation

Place of Origin: China

Brand Name: grandmfg

Model Number: NPT1-1/4"

Payment & Shipping Terms

Packaging Details: exporting packaging

Delivery Time: 45 work days

Payment Terms: T/T, Western Union

Supply Ability: 100000/month

Gallery

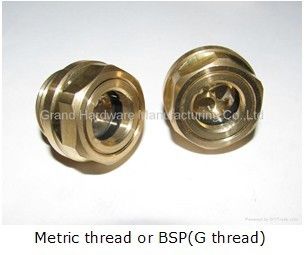

male NPT thread 11/4" natural brass Oil level indicator sight glass with borosilicate glass and natural glass

Product Description

male NPT thread 11/4" natural brass Oil level indicator sight glass with borosilicate glass and natural glass 0

Material Body: Brass

O-Ring: Viton,FKM,NBR, Aramid gasket and Copper seal

Glass Thickness: 2mm to 5 mm

Reflectors: Stainless Steel 304 Reflector

(Any type you can chose with reflector or without Reflector, You also can add float ball.)

Glass Type: Natural Glass,Tempered Glass and Borosilicate Glass

Resist Tempreature Range:-30'C to 120'C

Pressure Range: 5-10 Bar(0.5MPa to 1 MPa).

Thread type:NPT,NPTF,UNC,UNF,Metric and BSP(G thread)

Size: Below you will get the size you wanted.Another size is okay.OEM are welcome.

Usage: Pump,Oil Receivers,Gearboxes,Speed Reducer,Compressor and Power Transimission.

item	brass sight glasses
material	brass
O-Ring	Viton,FKM,NBR, Aramid gasket and Copper seal
window	Natural Glass,Tempered Glass and Borosilicate Glass
Glass Thickness	2mm to 5 mm
Reflectors	Stainless Steel 304 Reflector (Any type you can chose with reflector or without Reflector, You also can add float ball.)
Resist Tempreature Range	.-30'C TO 120'C
Pressure Range	5-10 Bar(0.5MPa to 1 MPa).
Thread type	NPT,NPTF,UNC,UNF,Metric and BSP(G thread)

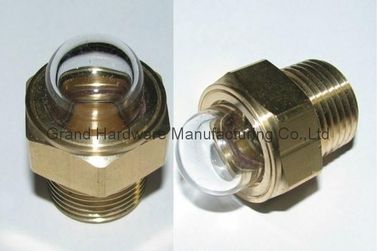

male NPT thread 11/4" natural brass Oil level indicator sight glass with borosilicate glass and natural glass 1

item	sight glasses,oil gauges
	oil drain plugs,steel plugs
	breather vent plugs
	auto radiator parts
	magnetic drain plugs
	precision machined parts(brass,steel,stainless steel,aluminum) hydraulic steel fittings OEM and ODM business welcome.
website	www.grandmfgcn.com
sales department	Grace
Email	grandmfg@vip.126.com

Item	Fused sight glass
Material	steel nickel plated
Window	Natural Glass
Glass Thickness	2mm to 5 mm
Working Tempreature	: －40℃～200℃
Temperature Assaults Date	: －40℃～180℃
Working Pressure	2.5, 4.0Mpa
Our products are provided with simple structure, novel appearance, high airproof, well poressure, good anti-cold concussion, marked clearly in the indication of liquid location etc characters, and favor of the spacious domestic and overseas air compressor producer deeply.

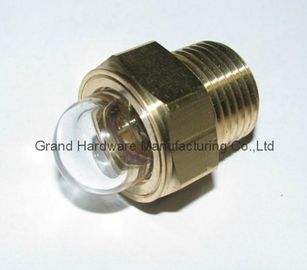

male NPT thread 11/4" natural brass Oil level indicator sight glass with borosilicate glass and natural glass 3

male NPT thread 11/4" natural brass Oil level indicator sight glass with borosilicate glass and natural glass 4

item	brass breather vent plugs
material	brass or aluminum
Thread Type	BSP,Metric,NPT
finish	Natural and Nickel Plated
size	Any Size OEM are welcome.
Work Pressure	0.005 MPa to M 0.03 Mpa
Tempture Range	: -30 Cent degree to 130 Cent degree.
Pressure Range	5-10 Bar(0.5MPa to 1 MPa).
Thread type	Pump, Thin-wall container, Radiator, Hydraulic reservoir, receivers, Gearboxes, Speed Reducer, Compressor and Power Transmission.

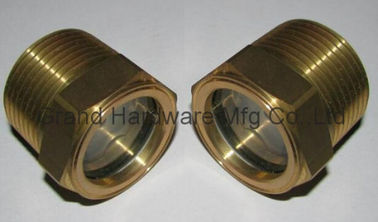

male NPT thread 11/4" natural brass Oil level indicator sight glass with borosilicate glass and natural glass 5

item	steel sight glasses
material	steel
O-Ring	Viton,FKM,NBR, Aramid gasket and Copper seal
window	Natural Glass,Tempered Glass and Borosilicate Glass
Glass Thickness	2mm to 5 mm
Reflectors	Stainless Steel 304 Reflector (Any type you can chose with reflector or without Reflector, You also can add float ball.)
Resist Tempreature Range	.-30'C TO 120'C
Pressure Range	5-10 Bar(0.5MPa to 1 MPa).
Thread type	NPT,NPTF,UNC,UNF,Metric and BSP(G thread)

male NPT thread 11/4" natural brass Oil level indicator sight glass with borosilicate glass and natural glass 6
