Circular oil sight glass, oil sight gage, site glass, oil level indicator, liquid sight glass,
oil sight window, view ports, male thread sight glass, visual level sight gauge,
visual level sight glass, visual level indicator, domed shaped oil sight glass,
oil sight plugs
Body material: aluminum, brass, PC, PPMA and steel
Glass: Real glass 2 mm to 5 mm thickness.
O Ring: Viton O rings
Size: M10 to M42, 1/2 inch to 2 inch
Thread Type: NPTF, NPT, UNC, UNF, Metric and BSP (G thread)
Operate Temperature: -20 Celsius degree to 120 Celsius degree
Operate Pressure: 5-10 Bar or 0.5MPa to 1 MPa.
MOQ: 2000 Pcs each size
Delivery time: 20 days.
Payment: T/T
Usage: Pump, Thin-wall container, Radiator, Hydraulic reservoir, receivers, Gearboxes,
Speed Reducer, Compressor and Power Transmission.
Different company have different requirements, OEM Service is welcome.

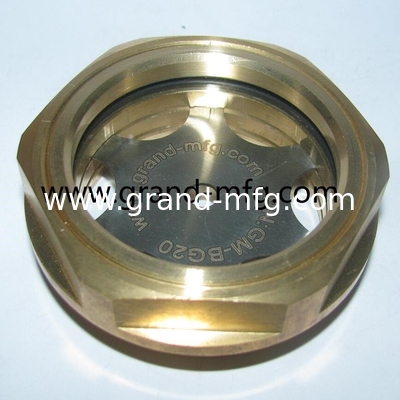

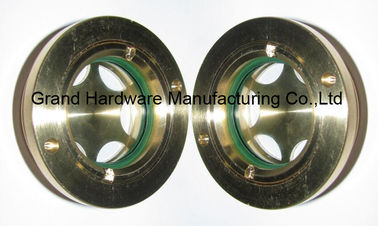

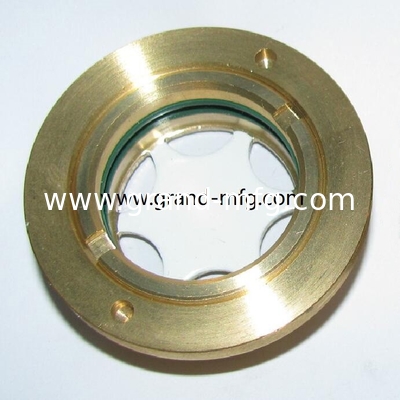

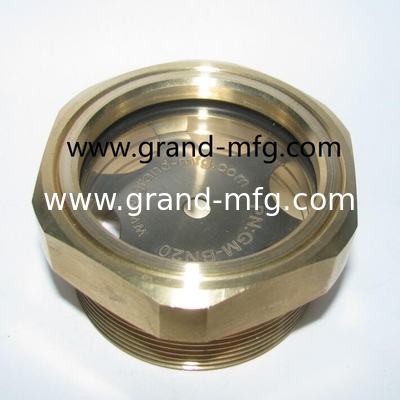

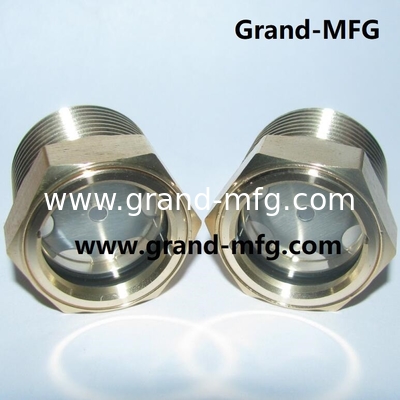

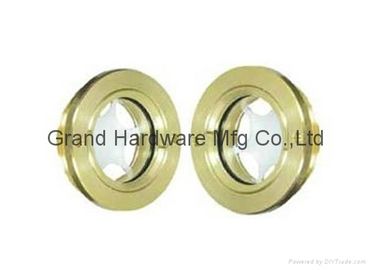

| item |
brass sight glasses |
| material |
brass |
| O-Ring |
Viton,FKM,NBR, Aramid gasket and Copper seal |
| window |
Natural Glass,Tempered Glass and Borosilicate Glass |
| Glass Thickness |
2mm to 5 mm |
| Reflectors |
Stainless Steel 304 Reflector
(Any type you can chose with reflector or without Reflector, You also can add float ball.) |
| Resist Tempreature Range |
.-30'C TO 120'C |
| Pressure Range |
5-10 Bar(0.5MPa to 1 MPa). |
| Thread type |
NPT,NPTF,UNC,UNF,Metric and BSP(G thread) |
| item |
aluminum sight glasses |
| material body |
Aluminum 6061 T6/Aluminum 6063 |
| O-Ring |
Viton,FKM,NBR, Aramid gasket and Copper seal |
| window |
Natural Glass,Tempered Glass and Borosilicate Glass |
| Glass Thickness |
2mm to 5 mm |
| Reflectors |
Stainless Steel 304 Reflector
(Any type you can chose with reflector or without Reflector, You also can add float ball.) |
| Resist Tempreature Range |
.-30'C TO 120'C |
| Pressure Range |
5-10 Bar(0.5MPa to 1 MPa). |
| Thread type |
UNC,UNF,Metric and BSP(G thread) |
| size |
Below you will get the size you wanted.Another size is okay.
OEM are welcome. |
| Usage |
Pump,Oil Receivers,Gearboxes,Speed Reducer,Compressor and Power Transimission. |
| item |
SS sight glasses |
| material |
Stainless steel 304,Stainless steel 304L,Stainless Steel 316,
Stainless steel 316L |
| O-Ring |
Viton,FKM,NBR, Aramid gasket and Copper seal |
| window |
Natural Glass,Tempered Glass and Borosilicate Glass |
| Glass Thickness |
2mm to 5 mm |
| Reflectors |
Stainless Steel 304 Reflector
(Any type you can chose with reflector or without Reflector, You also can add float ball.) |
| Resist Tempreature Range |
.-30'C TO 120'C |
| Pressure Range |
5-10 Bar(0.5MPa to 1 MPa). |
| Thread type |
NPT,NPTF,UNC,UNF,Metric and BSP(G thread) |
