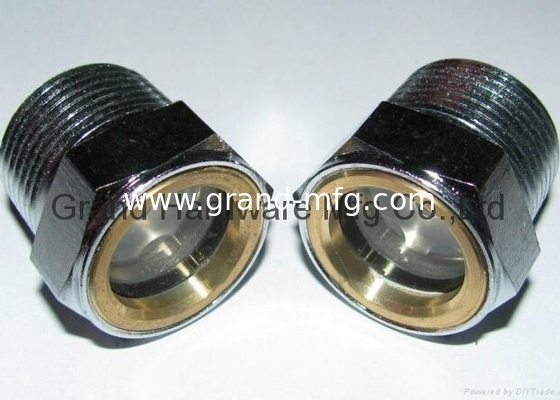

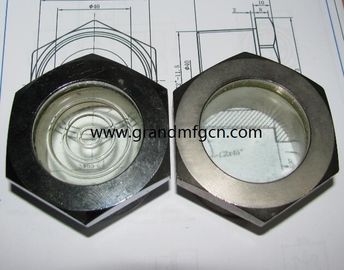

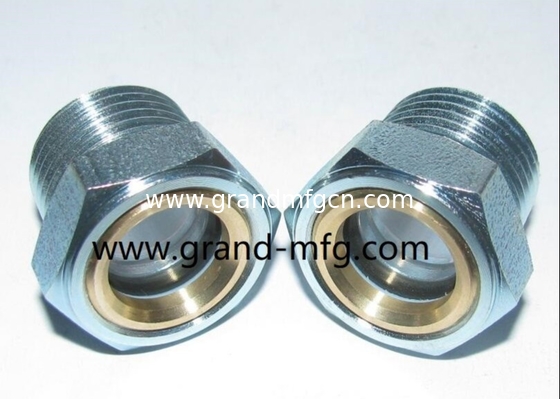

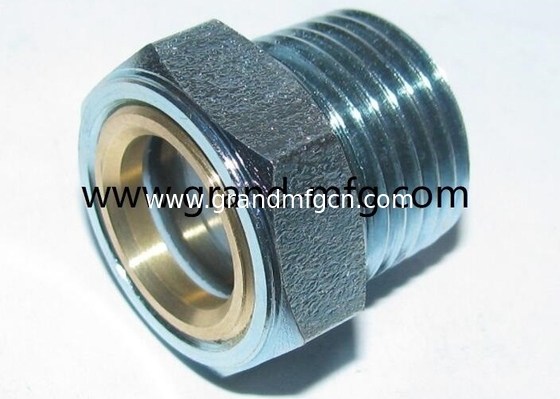

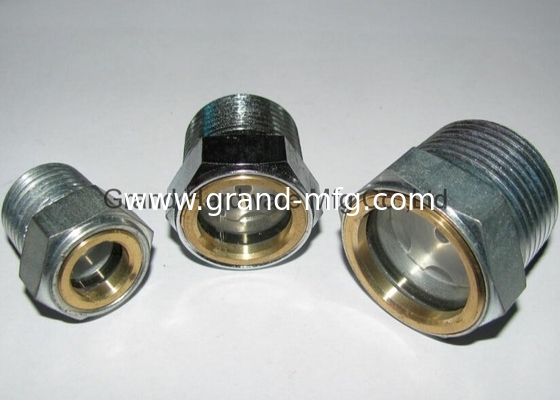

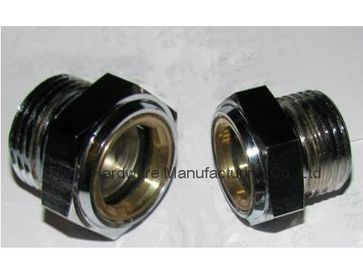

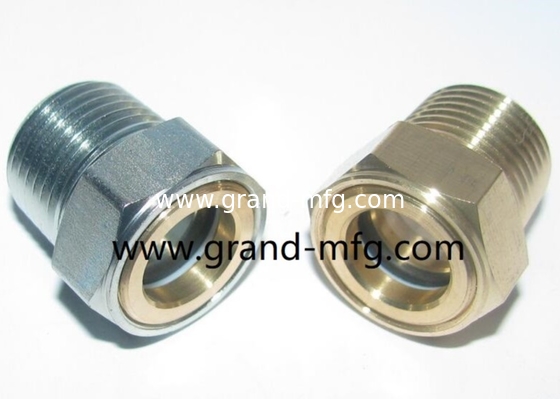

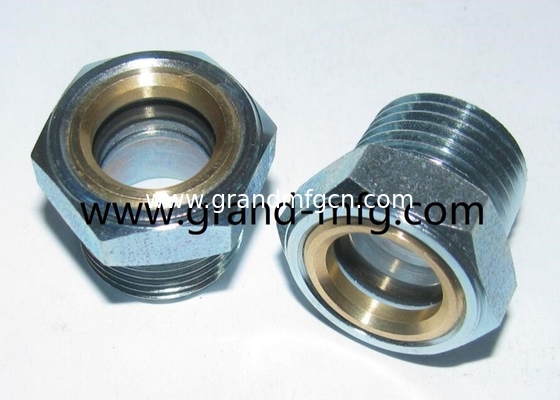

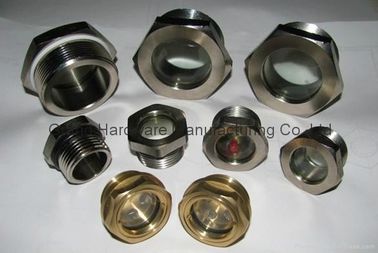

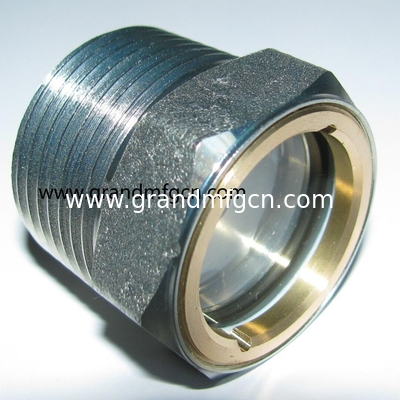

Steel Oil level Sight glass, oil sight gauge, oil sight gage, oil level indicator, liquid sight glass, sight window, view ports,
male thread sight glasses, domed sight glass plug
Material
Body: Aluminum, Steel, PMMA, Plastic and Brass
O-Ring: Viton and NBR
Glass: Natural Glass
Glass Thickness: 2mm to 5 mm
Glass Type: General Glass, Tempered Glass and Borosilicate Glass
Resist Temperature Range: -30 Cent degrees to 120 Cent degrees.
Pressure Range: 5-10 Bar or 0.5MPa to 1 MPa.
Connections: NPTF, NPT, UNC, UNF, Metric and BSP (G thread)
Size:M10X1, M16X1.5,M20X1.5, ,M27X1.5,M33X1.5,
G 3/8,G 1/2,G 3/4,G 1 NPT 3/8, NPT 1/2,NPT 3/4,NPT 1
MOQ: 2000 Pcs each size
Delivery time: 20 days.
Usage: Pump, Thin-wall container, Radiator, Hydraulic reservoir, receivers, Gearboxes, Speed Reducer, Compressor
and Power Transmission.
item | steel sight glasses |
material | steel |
O-Ring | Viton,FKM,NBR, Aramid gasket and Copper seal |
window | Natural Glass,Tempered Glass and Borosilicate Glass |
Glass Thickness | 2mm to 5 mm |
Reflectors | Stainless Steel 304 Reflector (Any type you can chose with reflector or without Reflector, You also can add float ball.) |
Resist Tempreature Range | .-30'C TO 120'C |
Pressure Range | 5-10 Bar(0.5MPa to 1 MPa). |
Thread type | NPT,NPTF,UNC,UNF,Metric and BSP(G thread) |

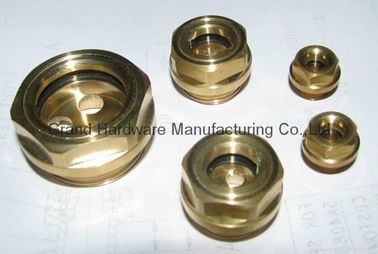

item | brass sight glasses |
material | brass |
O-Ring | Viton,FKM,NBR, Aramid gasket and Copper seal |
window | Natural Glass,Tempered Glass and Borosilicate Glass |
Glass Thickness | 2mm to 5 mm |
Reflectors | Stainless Steel 304 Reflector (Any type you can chose with reflector or without Reflector, You also can add float ball.) |
Resist Tempreature Range | .-30'C TO 120'C |
Pressure Range | 5-10 Bar(0.5MPa to 1 MPa). |
Thread type | NPT,NPTF,UNC,UNF,Metric and BSP(G thread) |
Grand Hardware Manufacturing Co., Ltd
& Yuhuan Yize Machinery Factory is a precision metal parts supplier.
--Professional OEM metal parts supplier in many categories.such as CNC machining parts,CNC turning parts,precision metal parts,stamping parts and punching parts.
--Especially professional in oil level sight glass,fused windows sights,breather vent plugs,wheel bolts,hydraulic adapters and hydraulic steel oil drain plugs.
--We focus on the below business:
1.High gloss cutting drill, high speed CNC and digital control processing.
2. Both metal and plastic piece parts laser radium carving.
3. Exterior parts stamping, processing and other piece parts machining.
4. Pieces of exterior anoding, wiring drawing and printing and other surface treatments
5.+/-0.01mm tolerance will be controlled.
--We supply the metal parts in compliance with customized designs by material of:
Stainless steel, mid steel, Aluminum alloy, Copper and brass, Bronze, Hardened metal.
--Finish parts surface treatment: Zinc plating, Zinc-Nickel plating, Anodising and Etc.
--We can realize the customers' idea and design perfectly by our experienced work and keep confidentially meanwhile.
--Customized drawing are welcome.
--OEM metal work is welcome.
--Both the delivery time and service will exceed your expectation.
Any more qustion,Please contact us for more details about our production capacity which you concern!
