Home /Products/Fused Sight Glass window/1 inch Fused Glass Window Sights(UNF Thread) for refrigeration equipment

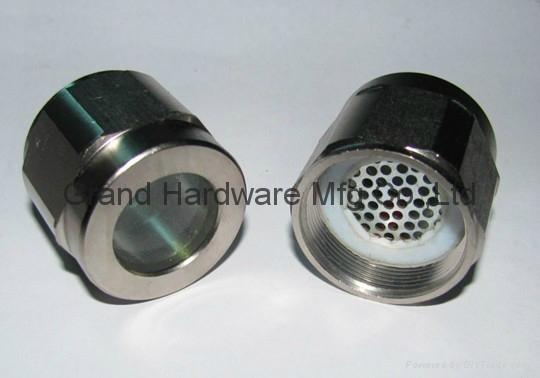

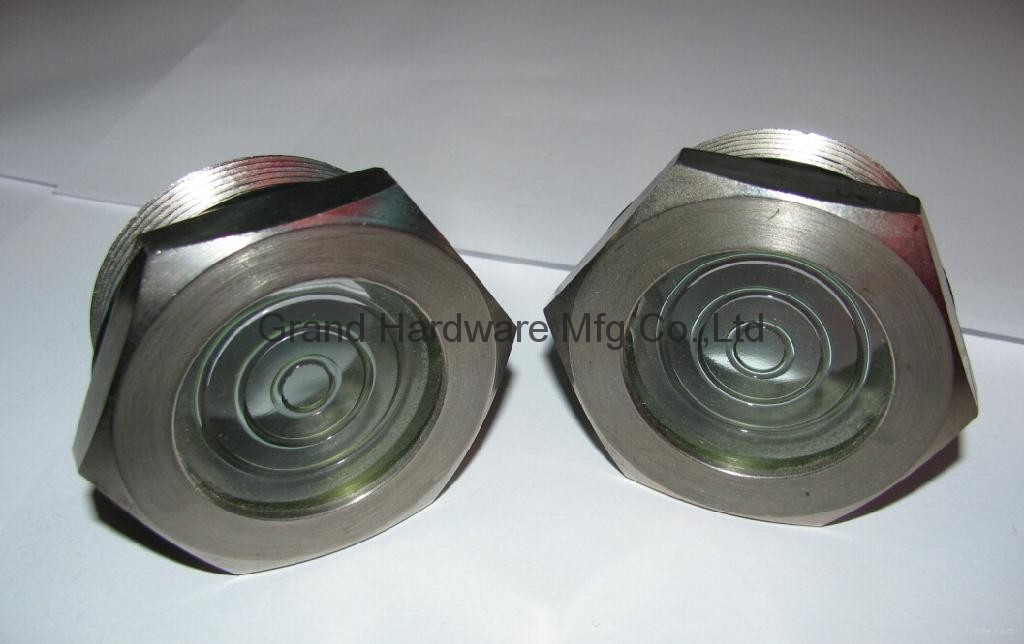

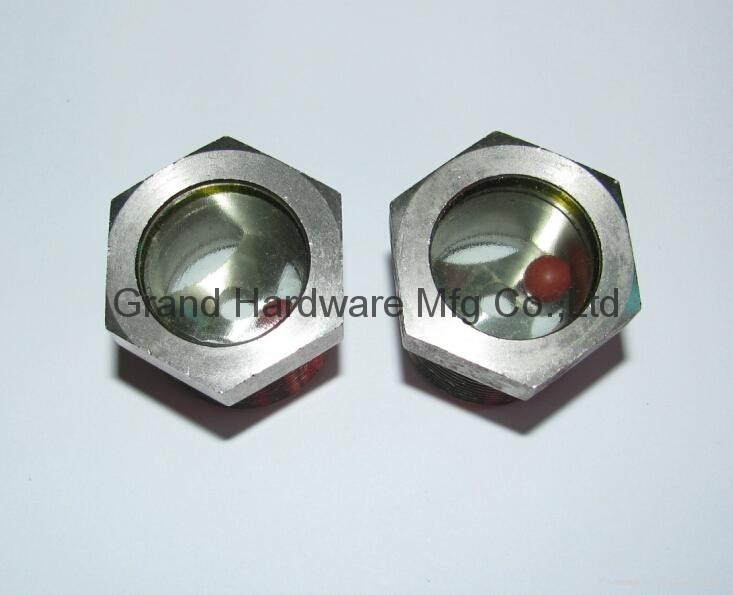

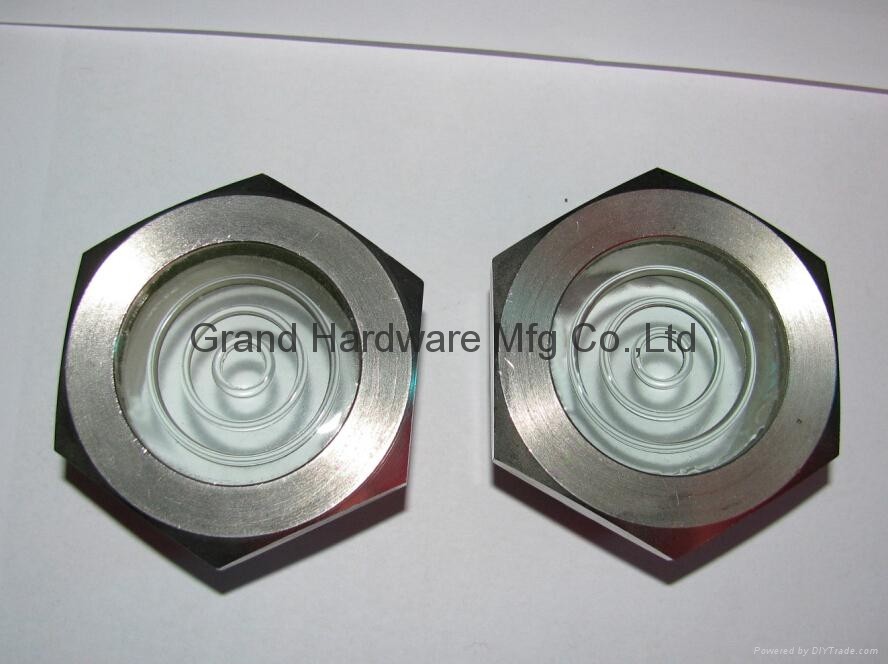

1 inch Fused Glass Window Sights(UNF Thread) for refrigeration equipment

100
MOQ
$ 0.8-10 pcs
Price
1 inch Fused Glass Window Sights(UNF Thread) for refrigeration equipment
Features Gallery Product Description Request A Quote
Features
Specifications
Material: Steel
Finish: Nickel Plated
Window: Natural Glass
Thread: BSP,NPT,Metric Thread
Basic Infomation
Place of Origin: China
Brand Name: Grand
Certification: ISO9001
Model Number: 1/2",3/4",1",11/2",11/4",13/4",2"
Payment & Shipping Terms
Packaging Details: exporting packaging or as required.
Delivery Time: 45 work days
Payment Terms: T/T
Supply Ability: 100000/month
Product Description

Steel Fused window sights nickel plated, Steel fused sight windows nickel plated, Steel Flange fused glass oil sight glass nickel plated, stainless steel fused sight glass,Fused glass style sight windows

Feature glass to metal bond for utmost reliability.

Plated steel bodies have convenient hex wrench surface.

Connection are Standard NPT, UNC, UNF and BSP (G thread) from 1/4" to 2".

Windows are clear, ripple free, and flush with the front face,

Having no recess on which dirt might collect.

Specifications:

Service: Compatible gases and liquids.

Window: nature glass.

Body: plated steed and stainless steel 304, SS316

Temperature: -30'C to 260 'C (500 F).

Pressure: 125 psig (8.6bar)

Connections: NPTF, NPT, UNC, UNF, Metric and BSP (G thread)

Size: 1/4" to 2"

MOQ: 1000 Pcs each size

Delivery time: 20 days.

Usage: Pump, Thin-wall container, Radiator, Hydraulic reservoir, receivers, Gearboxes, Speed Reducer, Compressor and Power Transmission.

1 inch Fused Glass Window Sights(UNF Thread) for refrigeration equipment 0

Item Fused sight glass
Material steel nickel plated
Window Natural Glass
Glass Thickness 2mm to 5 mm
Working Tempreature : －40℃～200℃
Temperature Assaults Date : －40℃～180℃
Working Pressure 2.5, 4.0Mpa
Our products are provided with simple structure, novel appearance, high airproof,
well poressure, good anti-cold concussion, marked clearly in the indication of
liquid location etc characters, and favor of the spacious domestic and overseas
air compressor producer deeply.



1 inch Fused Glass Window Sights(UNF Thread) for refrigeration equipment 11 inch Fused Glass Window Sights(UNF Thread) for refrigeration equipment 21 inch Fused Glass Window Sights(UNF Thread) for refrigeration equipment 31 inch Fused Glass Window Sights(UNF Thread) for refrigeration equipment 41 inch Fused Glass Window Sights(UNF Thread) for refrigeration equipment 51 inch Fused Glass Window Sights(UNF Thread) for refrigeration equipment 61 inch Fused Glass Window Sights(UNF Thread) for refrigeration equipment 71 inch Fused Glass Window Sights(UNF Thread) for refrigeration equipment 8
