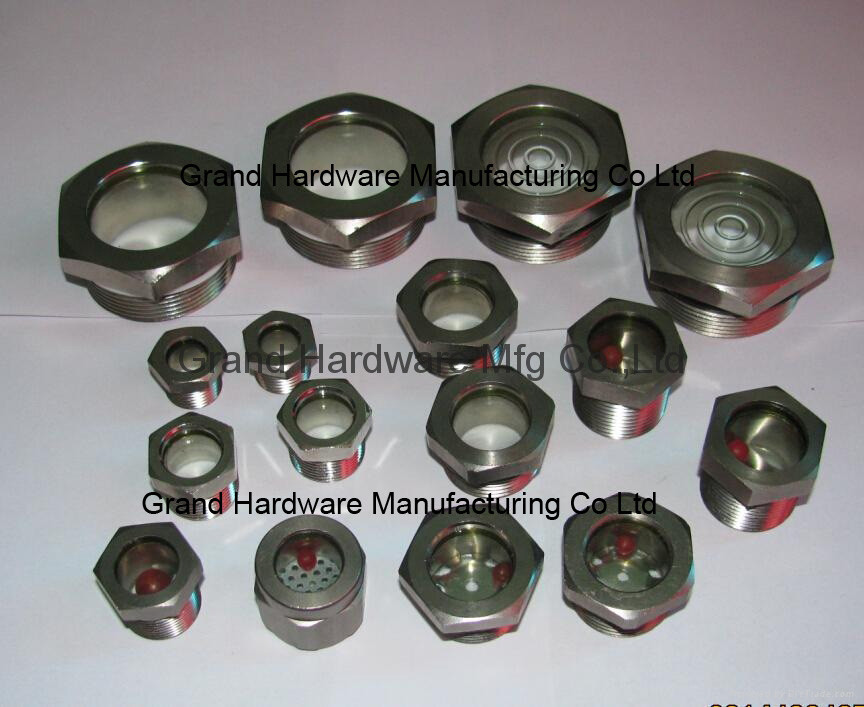

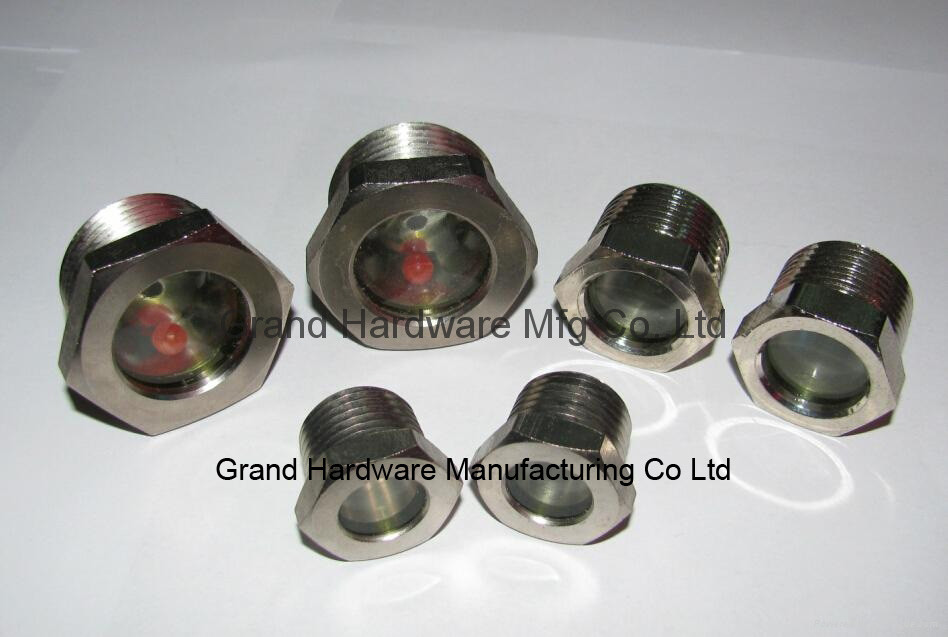

Steel Sintered Sight Glass Nickel plated, Steel Fused window sights nickel plated, Steel fused sight windows nickel plated, Steel Flange fused glass oil sight glass nickel plated, stainless steel fused sight glass,Fused glass style sight windows
Feature glass to metal bond for utmost reliability.
Plated steel bodies have convenient hex wrench surface.
Connection are Standard NPT, UNC, UNF and BSP (G thread) from 1/4" to 2".
Windows are clear, ripple free, and flush with the front face,
Having no recess on which dirt might collect.
Specifications:
Service: Compatible gases and liquids.
Window: nature glass.
Body: plated steed and stainless steel 304, SS316
Temperature: -30'C to 260 'C (500 F).
Pressure: 125 psig (8.6bar)
Connections: NPTF, NPT, UNC, UNF, Metric and BSP (G thread)
Size: 1/4" to 2"
MOQ: 1000 Pcs each size
Delivery time: 20 days.
Usage: Pump, Thin-wall container, Radiator, Hydraulic reservoir, receivers, Gearboxes, Speed Reducer, Compressor and Power Transmission.
| Item |

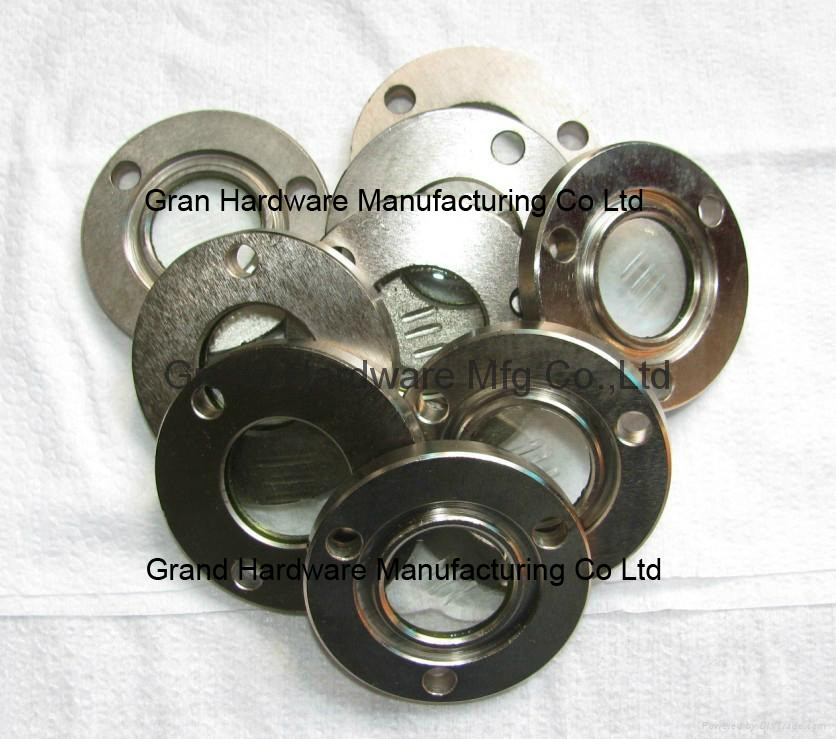

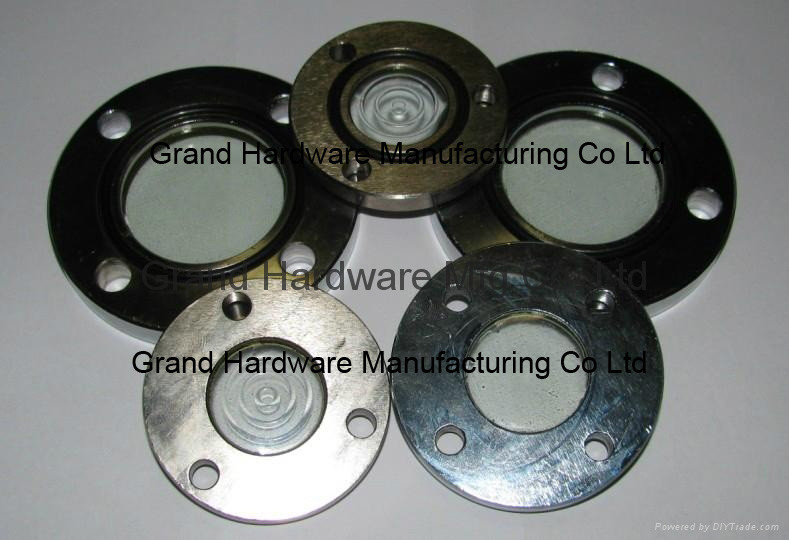

Flat flange sight glass |
| Material |
steel nickel plated |
| Window |
Natural Glass |
| Glass Thickness |
2mm to 5 mm |
| Working Tempreature |
: －40℃～200℃ |
| Temperature Assaults Date |
: －40℃～180℃ |
| Working Pressure |
2.5, 4.0Mpa |
Our products are provided with simple structure, novel appearance, high airproof,
well poressure, good anti-cold concussion, marked clearly in the indication of
liquid location etc characters, and favor of the spacious domestic and overseas
air compressor producer deeply. |
