Brass Machined parts,BSP NPT Metric thread,OEM and ODM business

1000pcs
MOQ
$ 0.8-10 pcs
Price
Brass Machined parts,BSP NPT Metric thread,OEM and ODM business
Features Gallery Product Description Request A Quote
Features
Specifications
Material: Brass Hpb57-3
Finish: As Requirements
Connection: Thread
Highlight:

machining parts

,

brass parts

,

brass forged parts
Basic Infomation
Place of Origin: China
Brand Name: grandmfg
Certification: ISO9001
Model Number: general purpose
Payment & Shipping Terms
Packaging Details: exporting packaging or as required.
Delivery Time: 45 work days
Payment Terms: T/T
Supply Ability: 100000/month
Product Description

Machining parts, machinery parts, metal spare parts, turning parts
1). Material: Stainless steel, carbon steel, alloy steel, aluminum, brass
2). Very strict tolerance, can reach0.02mm.
3). Equipments: Normal lathe, CNC lathe, CNC center machine, milling, drilling, and grinding machines.
4). Surface finish: Zinc / nickel / chrome plating, hot galvanized, painting, PVC, Powder coating, decrement plating.
5) Used for machinery parts, engine parts and Valves
6) Packing: PV bag or bubble bag or as per customer request
7)High quality, professional service, reasonable price



Brass Machined parts,BSP NPT Metric thread,OEM and ODM business 0Brass Machined parts,BSP NPT Metric thread,OEM and ODM business 1Brass Machined parts,BSP NPT Metric thread,OEM and ODM business 2Brass Machined parts,BSP NPT Metric thread,OEM and ODM business 3Brass Machined parts,BSP NPT Metric thread,OEM and ODM business 4Brass Machined parts,BSP NPT Metric thread,OEM and ODM business 5Brass Machined parts,BSP NPT Metric thread,OEM and ODM business 6

Brass Machined parts,BSP NPT Metric thread,OEM and ODM business 7Brass Machined parts,BSP NPT Metric thread,OEM and ODM business 8

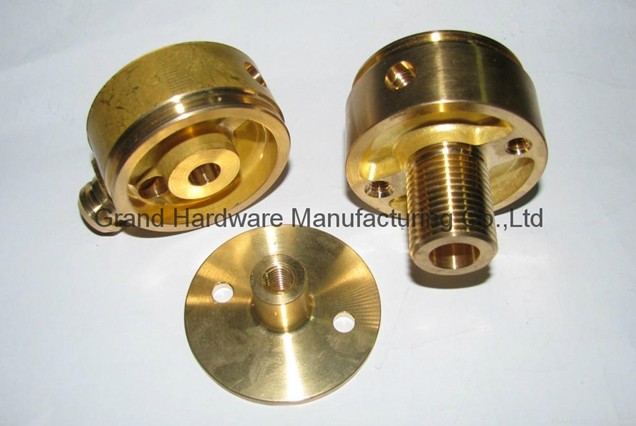

item brass machined parts
material Brass,Copper and Bronze.
finish Natural,Polished,Nickel plated and Chrome Plated
Processing Brass Hot Forged,Bronze Sand Castings,CNC machining, CNC turning or CNC Lathing,Milling,Sandblasted
Dimension Tolerance: CNC Lathe +/-0.01 mm.
General Lathe +/-0.1 to 0.2 mm





item sight glasses,oil gauges
oil drain plugs,steel plugs
breather vent plugs
auto radiator parts
magnetic drain plugs
precision machined parts(brass,steel,stainless steel,aluminum)
hydraulic steel fittings
OEM and ODM business welcome.
website www.grandmfgcn.com
sales department Grace
Email grandmfg@vip.126.com



Brass Machined parts,BSP NPT Metric thread,OEM and ODM business 9Brass Machined parts,BSP NPT Metric thread,OEM and ODM business 10Brass Machined parts,BSP NPT Metric thread,OEM and ODM business 11

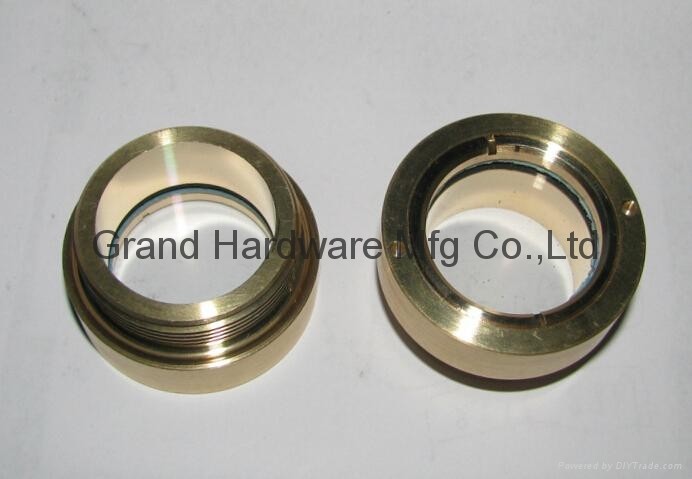

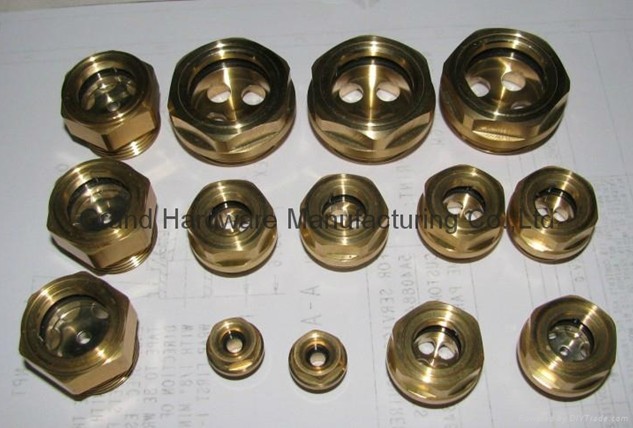

item brass sight glasses
material brass
O-Ring Viton,FKM,NBR, Aramid gasket and Copper seal
window Natural Glass,Tempered Glass and Borosilicate Glass
Glass Thickness 2mm to 5 mm
Reflectors Stainless Steel 304 Reflector

(Any type you can chose with reflector or without Reflector, You also can add float ball.)
Resist Tempreature Range .-30'C TO 120'C
Pressure Range 5-10 Bar(0.5MPa to 1 MPa).
Thread type NPT,NPTF,UNC,UNF,Metric and BSP(G thread)



Brass Machined parts,BSP NPT Metric thread,OEM and ODM business 12Brass Machined parts,BSP NPT Metric thread,OEM and ODM business 13



item brass sight gauges
Housing brass tube
tube quartz glass tube
O-Ring and flat gaskets NBR Rubber
Thread szie M10x1, M12x1.5, M14x1.5, M16x1.5, G1/4”, G3/8”,
G1/2”, NPT1/4, NPT3/8, NPT1/2”
Temperature resistant : -20’C to 120 ‘C. / 0’F to 260 ‘F
Distance of two bolts 80mm to 600mm



Brass Machined parts,BSP NPT Metric thread,OEM and ODM business 14

item Hydraulic oil level indicator
Housing Aluminum alloy housing and inside thermoplastic (PC)
O-Ring and flat gaskets NBR Rubber
Reflector aluminum with printed white
Bolt M10 Hexagon nut and washer in galvanized steel
Temperature resistant : -20’C to 100 ‘C. / 0’F to 220 ‘F
Distance of two bolts 50mm to 500mm
Usage Thin-wall container, Radiator, Hydraulic reservoir and receivers.



Brass Machined parts,BSP NPT Metric thread,OEM and ODM business 15

item plastic sight glasses
material plastic
seal NBR
Reflectors Plastic PMMA
Resist Tempreature Range : -30'C to 70'C
Pressure Range 5-10 Bar(0.5MPa to 1 MPa).
Thread type Metric and BSP(G thread)
