Home /Products/Aluminum Oil level Sight Glass/Male BSP thead 3/8" 1/2" 3/4" Quality Hexagon Aluminum Oil level sight glass, air compressor aluminum oil levels CUSTOM

Male BSP thead 3/8" 1/2" 3/4" Quality Hexagon Aluminum Oil level sight glass, air compressor aluminum oil levels CUSTOM

500pcs
MOQ
$ 0.8-10 pcs
Price
Male BSP thead 3/8" 1/2" 3/4" Quality Hexagon Aluminum Oil level sight glass, air compressor aluminum oil levels CUSTOM
Features Gallery Product Description Request A Quote
Features
Specifications
Material: Aluminium
Connection: Male Thread
Finish: No Finishing
Highlight:

sight glass

,

oil level indicator

,

liquid sight glass
Basic Infomation
Place of Origin: China
Brand Name: grand-mfg
Certification: ISO9001
Model Number: 3/8",1/2",3/4",1",11/2",11/4",13/4",2"
Payment & Shipping Terms
Packaging Details: exporting packaging or as required.
Delivery Time: 45 work days
Payment Terms: T/T
Supply Ability: 100000/month
Product Description


GrandMfg® Aluminum Oil level sight glass gauge
Sight glass, oil level indicator, liquid sight glass, sight window, viewports
Body material: aluminum, brass and steel
Glass: Real glass 2 mm to 5 mm thickness.
O Ring: Viton O rings
Size: M10 to M42, 1/2 inch to 2 inch
Thread Type: Meter thread, BSP, NPT
Operate Temperature: -20 cent degree to 120 cent degree
Operate Pressure: 125 PSIG
MOQ: 2000 Pecs each size
Delivery time: 20 days.
Payment: T/T

Different company have different requirements, OEM Service is welcome.
Any information, please call me or sand me mail: grandmfgcn at yahoo dot com.

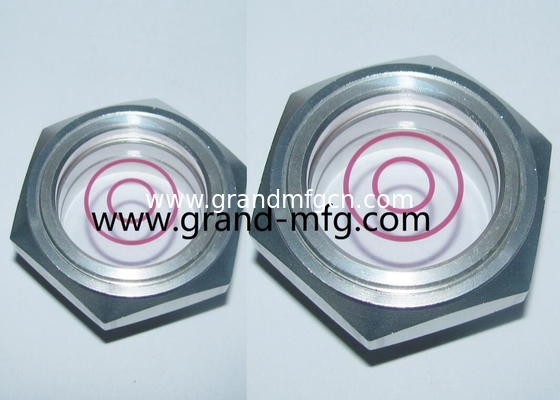

item aluminum sight glasses
material body Aluminum 6061 T6/Aluminum 6063
O-Ring Viton,FKM,NBR, Aramid gasket and Copper seal
window Natural Glass,Tempered Glass and Borosilicate Glass
Glass Thickness 2mm to 5 mm
Reflectors Stainless Steel 304 Reflector
(Any type you can chose with reflector or without Reflector, You also can add float ball.)
Resist Tempreature Range .-30'C TO 120'C
Pressure Range 5-10 Bar(0.5MPa to 1 MPa).
Thread type UNC,UNF,Metric and BSP(G thread)
size Below you will get the size you wanted.Another size is okay.
OEM are welcome.
Usage Pump,Oil Receivers,Gearboxes,Speed Reducer,Compressor and Power Transimission.


Male BSP thead 3/8" 1/2" 3/4" Quality Hexagon Aluminum Oil level sight glass, air compressor aluminum oil levels CUSTOM 0Male BSP thead 3/8" 1/2" 3/4" Quality Hexagon Aluminum Oil level sight glass, air compressor aluminum oil levels CUSTOM 1

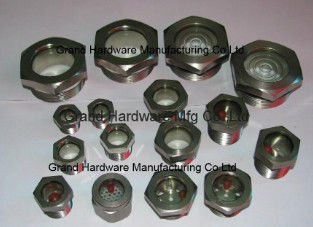

item SS sight glasses
material Stainless steel 304,Stainless steel 304L,Stainless Steel 316,
Stainless steel 316L
O-Ring Viton,FKM,NBR, Aramid gasket and Copper seal
window Natural Glass,Tempered Glass and Borosilicate Glass
Glass Thickness 2mm to 5 mm
Reflectors Stainless Steel 304 Reflector
(Any type you can chose with reflector or without Reflector, You also can add float ball.)
Resist Tempreature Range .-30'C TO 120'C
Pressure Range 5-10 Bar(0.5MPa to 1 MPa).
Thread type NPT,NPTF,UNC,UNF,Metric and BSP(G thread)



Male BSP thead 3/8" 1/2" 3/4" Quality Hexagon Aluminum Oil level sight glass, air compressor aluminum oil levels CUSTOM 2Male BSP thead 3/8" 1/2" 3/4" Quality Hexagon Aluminum Oil level sight glass, air compressor aluminum oil levels CUSTOM 3
Male BSP thead 3/8" 1/2" 3/4" Quality Hexagon Aluminum Oil level sight glass, air compressor aluminum oil levels CUSTOM 4

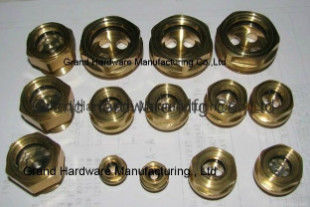

item brass sight glasses
material brass
O-Ring Viton,FKM,NBR, Aramid gasket and Copper seal
window Natural Glass,Tempered Glass and Borosilicate Glass
Glass Thickness 2mm to 5 mm
Reflectors Stainless Steel 304 Reflector
(Any type you can chose with reflector or without Reflector, You also can add float ball.)
Resist Tempreature Range .-30'C TO 120'C
Pressure Range 5-10 Bar(0.5MPa to 1 MPa).
Thread type NPT,NPTF,UNC,UNF,Metric and BSP(G thread)



Male BSP thead 3/8" 1/2" 3/4" Quality Hexagon Aluminum Oil level sight glass, air compressor aluminum oil levels CUSTOM 5Male BSP thead 3/8" 1/2" 3/4" Quality Hexagon Aluminum Oil level sight glass, air compressor aluminum oil levels CUSTOM 6Male BSP thead 3/8" 1/2" 3/4" Quality Hexagon Aluminum Oil level sight glass, air compressor aluminum oil levels CUSTOM 7Male BSP thead 3/8" 1/2" 3/4" Quality Hexagon Aluminum Oil level sight glass, air compressor aluminum oil levels CUSTOM 8


item steel sight glasses
material steel
O-Ring Viton,FKM,NBR, Aramid gasket and Copper seal
window Natural Glass,Tempered Glass and Borosilicate Glass
Glass Thickness 2mm to 5 mm
Reflectors Stainless Steel 304 Reflector
(Any type you can chose with reflector or without Reflector, You also can add float ball.)
Resist Tempreature Range .-30'C TO 120'C
Pressure Range 5-10 Bar(0.5MPa to 1 MPa).
Thread type NPT,NPTF,UNC,UNF,Metric and BSP(G thread)


Male BSP thead 3/8" 1/2" 3/4" Quality Hexagon Aluminum Oil level sight glass, air compressor aluminum oil levels CUSTOM 9
