Nickel plated steel fused window sights,fused sight windows,fused sight glass,custom available

200pcs
MOQ
$ 0.8-2 pcs
Price
Nickel plated steel fused window sights,fused sight windows,fused sight glass,custom available
Features Gallery Product Description Request A Quote
Features
Specifications
Material: Steel
Finishing: Nickel Plated
Packaging: Cartons,pallets
Basic Infomation
Place of Origin: China
Brand Name: grand-mfg
Payment & Shipping Terms
Packaging Details: standard export packaging
Delivery Time: 45days
Payment Terms: T/T
Supply Ability: 50000pcs/month
Product Description

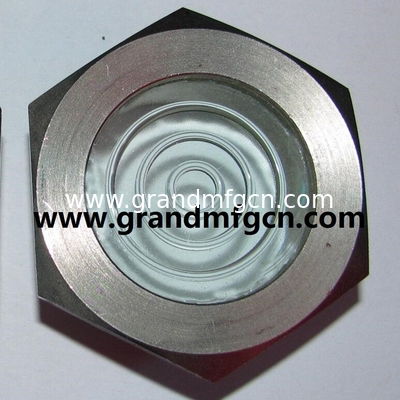

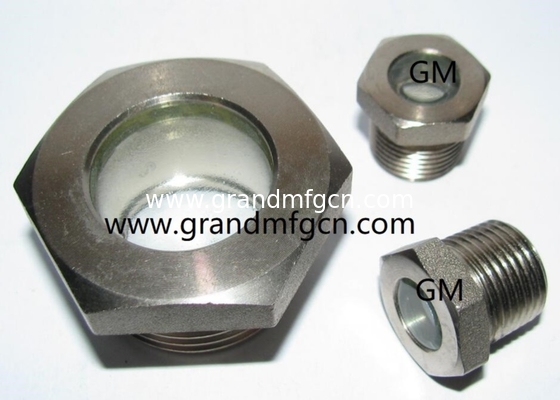

Fused window sights, fused sight windows, Flange fused glass oil sight glass

Fused glass style sight windows

Feature glass to metal bond for utmost reliability.

Plated steel bodies have convenient hex wrench surface.

Connection are Standard NPT, UNC, UNF and BSP (G thread) from 1/4" to 2".

Windows are clear, ripple free, and flush with the front face,

Having no recess on which dirt might collect.

Specifications:

Service: Compatible gases and liquids.

Window: nature glass.

Body: plated steed and stainless steel.

Temperature: -30'C to 260 'C (500 F).

Pressure: 125 psig (8.6bar)

Connections: NPTF, NPT, UNC, UNF, Metric and BSP (G thread)

Size: 1/4" to 2"

MOQ: 1000 Pcs each size

Delivery time: 20 days.

Usage: Pump, Thin-wall container, Radiator, Hydraulic reservoir, receivers, Gearboxes, Speed Reducer,

Compressor and Power Transmission.



Nickel plated steel fused window sights,fused sight windows,fused sight glass,custom available 0Nickel plated steel fused window sights,fused sight windows,fused sight glass,custom available 1Nickel plated steel fused window sights,fused sight windows,fused sight glass,custom available 2Nickel plated steel fused window sights,fused sight windows,fused sight glass,custom available 3Nickel plated steel fused window sights,fused sight windows,fused sight glass,custom available 4

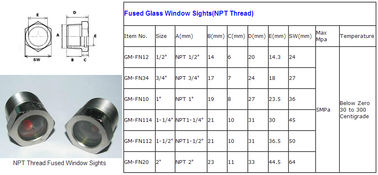

Item Fused sight glass
Material steel nickel plated
Window Natural Glass
Glass Thickness 2mm to 5 mm
Working Tempreature : －40℃～200℃
Temperature Assaults Date : －40℃～180℃
Working Pressure 2.5, 4.0Mpa
Our products are provided with simple structure, novel appearance, high airproof,
well poressure, good anti-cold concussion, marked clearly in the indication of
liquid location etc characters, and favor of the spacious domestic and overseas
air compressor producer deeply.

Nickel plated steel fused window sights,fused sight windows,fused sight glass,custom available 5

Item Flat flange sight glass
Material steel nickel plated
Window Natural Glass
Glass Thickness 2mm to 5 mm
Working Tempreature : －40℃～200℃
Temperature Assaults Date : －40℃～180℃
Working Pressure 2.5, 4.0Mpa
Our products are provided with simple structure, novel appearance, high airproof,
well poressure, good anti-cold concussion, marked clearly in the indication of
liquid location etc characters, and favor of the spacious domestic and overseas
air compressor producer deeply.





Nickel plated steel fused window sights,fused sight windows,fused sight glass,custom available 6Nickel plated steel fused window sights,fused sight windows,fused sight glass,custom available 7

item brass sight glasses
material brass
O-Ring Viton,FKM,NBR, Aramid gasket and Copper seal
window Natural Glass,Tempered Glass and Borosilicate Glass
Glass Thickness 2mm to 5 mm
Reflectors Stainless Steel 304 Reflector

(Any type you can chose with reflector or without Reflector, You also can add float ball.)
Resist Tempreature Range .-30'C TO 120'C
Pressure Range 5-10 Bar(0.5MPa to 1 MPa).
Thread type NPT,NPTF,UNC,UNF,Metric and BSP(G thread)



Nickel plated steel fused window sights,fused sight windows,fused sight glass,custom available 8Nickel plated steel fused window sights,fused sight windows,fused sight glass,custom available 9Nickel plated steel fused window sights,fused sight windows,fused sight glass,custom available 10Nickel plated steel fused window sights,fused sight windows,fused sight glass,custom available 11

item Magnetic oil drain plugs
material Steel and Aluminum
Magnet Material NdFeb magnets and Ferrite magnets
Thread Type BSP,Metric
finish Steel Zinc plated, Aluminum Natural and Aluminum Oxidized Color.
size Metric thread,NPT Thread and BSP thread. OEM is welcome.
Usage Auto engineer,gearbox,pump,oil tank and speed reducer.





item steel plugs
material Carbon Steel and Al 6061
Thread Type BSP,Metric,NPT
finish Steel Zinc plated,Aluminum Natural and Aluminum Anodizing
size Any Size OEM are welcome.
Usage Hydraulic equipements, Gearboxes,Speed Reducer,Cars,Automotive,
Truck,Pump and Power Transimission.
1)Wihtstand hight pressure hydraulic plugs.

2)Covering standards of DIN, SAE, ISO, JIS and BS etc.
