Name: male BSP G thread 1/2",3/4",1" Brass Oil Sight Glass(BSP & Metric Thread) with natural glass
Brand: Grand
SKU: 1/2",3/4",1",11/2",11/4",13/4",2"
Price: 0.8 USD
Availability: InStock
Rating: 4.9 (104 reviews)

male BSP G thread 1/2",3/4",1" Brass Oil Sight Glass(BSP & Metric Thread) with natural glass

1000pcs

MOQ

$ 0.8-10 pcs

Price

Features Gallery Product Description Request A Quote

Features

Specifications

Material: Brass Hpb57-3

Finish: Sandblasting,natural

Connection: Thread

Highlight:

sight glass

liquid sight glass

oil level indicator

Basic Infomation

Place of Origin: China

Brand Name: Grand

Certification: ISO9001

Model Number: 1/2",3/4",1",11/2",11/4",13/4",2"

Payment & Shipping Terms

Packaging Details: exporting packaging or as required.

Delivery Time: 45 work days

Payment Terms: T/T

Supply Ability: 100000/month

Gallery

male BSP G thread 1/2",3/4",1" Brass Oil Sight Glass(BSP & Metric Thread) with natural glass

Product Description

Web: www grandmfgcn com

Sight glass, Oil level sight glass, liquid Sight Glass, Oil level indicator, Viewport
Material
Body: Aluminum, Steel and Brass
O-Ring: Viton and NBR
Glass: Real Glass
Glass Thickness: 2mm to 5 mm
Glass Type: General Glass, Tempered Glass and Borosilicate Glass
Resist Temperature Range:-30' to 120'

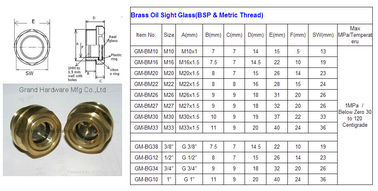

Size:
M10X1,M12X1.5,M14X1.5,M16X1.5,M20X1.5,M24X1.5,M27X1.5,M42X2,
G 3/8,G 1/2,G 3/4,G 1 NPT 3/8, NPT 1/2,NPT 3/4,NPT 1
Usage: Pump Gearboxes, Speed Reducer, Compressor and Power Transmission.

More information, please feel free to contact me: grandmfgcn at yahoo dot com

item	brass sight glasses
material	brass
O-Ring	Viton,FKM,NBR, Aramid gasket and Copper seal
window	Natural Glass,Tempered Glass and Borosilicate Glass
Glass Thickness	2mm to 5 mm
Reflectors	Stainless Steel 304 Reflector (Any type you can chose with reflector or without Reflector, You also can add float ball.)
Resist Tempreature Range	.-30'C TO 120'C
Pressure Range	5-10 Bar(0.5MPa to 1 MPa).
Thread type	NPT,NPTF,UNC,UNF,Metric and BSP(G thread)
