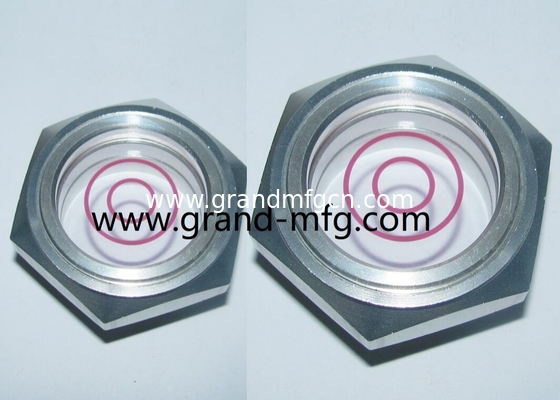

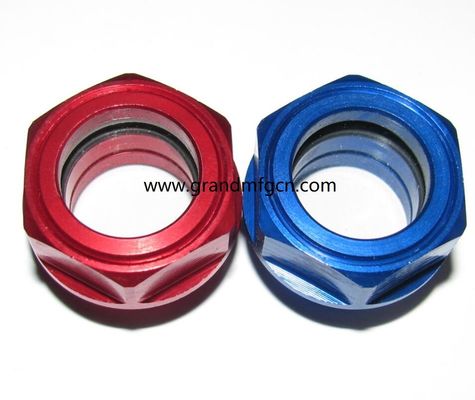

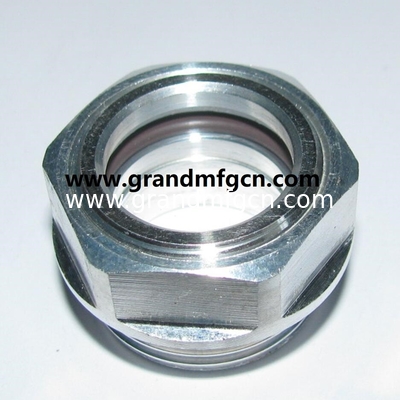

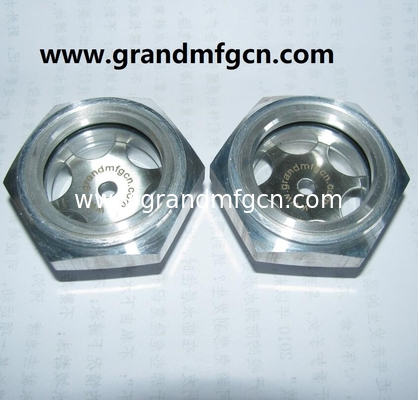

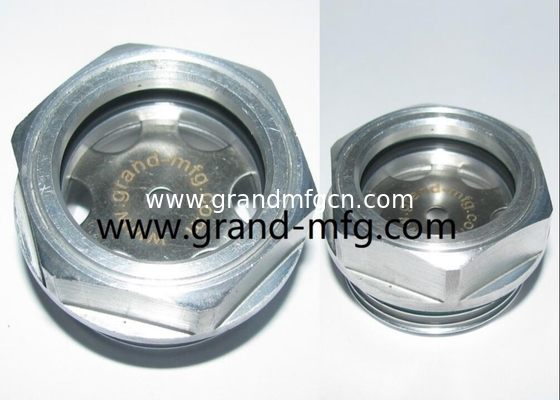

Aluminum Oil level sight glass
Material Body: Aluminum 6061 T6/Aluminum 6063
Finish: aluminum natural and aluminum oxidized color/ Anodizing color.
O-Ring: Viton,FKM,FPM,NBR, Aramid gasket and Copper seal
Glass Thickness: 2mm to 5 mm
Reflectors: Stainless Steel 304 Reflector
(Any type you can chose with reflector or without Reflector, You also can add float ball.)
Glass Type: Natural Glass,Tempered Glass and Borosilicate Glass
Resist Tempreature Range:-30'C to 120'C
Pressure Range: 5-10 Bar(0.5MPa to 1 MPa).
Thread type:NPT,NPTF,UNC,UNF,Metric and BSP(G thread)
Size: Below you will get the size you wanted.Another size is okay.OEM are welcome.
Usage: Pump,Oil Receivers,Gearboxes,Speed Reducer,Compressor and Power Transimission.
--------------------------------------------------------------------------------------------------

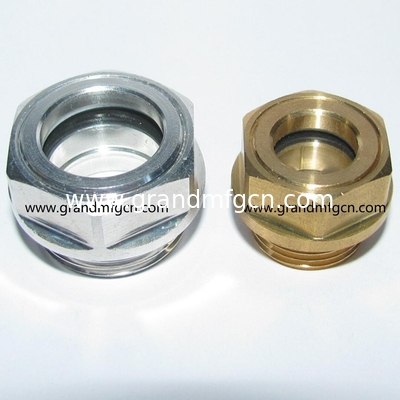

Brass Oil level sight glass
Material Body: Brass
O-Ring: Viton,FKM,FPM,NBR, Aramid gasket and Copper seal
Glass Thickness: 2mm to 5 mm
Reflectors: Stainless Steel 304 Reflector
(Any type you can chose with reflector or without Reflector, You also can add float ball.)
Glass Type: Natural Glass,Tempered Glass and Borosilicate Glass
Resist Tempreature Range:-30'C to 120'C
Pressure Range: 5-10 Bar(0.5MPa to 1 MPa).
Thread type:NPT,NPTF,UNC,UNF,Metric and BSP(G thread)
Size: Below you will get the size you wanted.Another size is okay.OEM are welcome.
Usage: Pump,Oil Receivers,Gearboxes,Speed Reducer,Compressor and Power Transimission.
Stainless Steel Oil level sight glass
Material Body: Stainless steel 304,Stainless steel 304L,Stainless Steel 316,Stainless steel 316L
O-Ring: Viton,FKM,FPM,NBR, Aramid gasket,Silicone Rubber,and Copper seal
Glass Thickness: 2mm to 5 mm
Reflectors: Stainless Steel 304 Reflector
(Any type you can chose with reflector or without Reflector, You also can add float ball.)
Glass Type: Natural Glass,Tempered Glass and Borosilicate Glass
Resist Tempreature Range:-30'C to 220'C
Pressure Range: 5-120 Bar(0.5MPa to 12 MPa).
Thread type:NPT,NPTF,UNC,UNF,Metric and BSP(G thread)
Size: Below you will get the size you wanted.Another size is okay.OEM are welcome.
Usage: Pump,Oil Receivers,Gearboxes,Speed Reducer,Compressor and Power Transimission.
| FAQ |
| 1.What is your MOQ, Delivery time? Ship from which port? |
| Our MOQ from 20-1000 Pcs different according items.The retail orders from ultimate customers are available if the item in stock. We usually ship bulk goods within 45 days from Ningbo port. |
| 2.Can I get sample for quality checking before order? |
| Yes. Although we have a complete product quality inspection systerm, we also hope to confirm the new project before order.We could offer sample for free but do not pay the express charge. |
| 3.Can you customize products for your customers? |
| Yes. Customized service is a part of our business. Any special requirements,just please contact us. |
| 4.Do you have products in stock? |
| Yes. Many common sizes of products in stock. We hope that it is helpful for our customers' urgent small order. |
| 5.If we get quality problem or wrong sizes, how to solve? |
Please check the goods once you get.
If we ship wrong products (for example :wrong sizes) or you get quality problem, don't worry, just please contact us immediately, we will take our responsibility. About some items, we sure that our products' sevice life as same as your equipments' service life. You will get what you pay for. |
| 6.How to contact Yuhuan Yize Machinery Factory ( Grand Hardware Manufacturing Co.,Ltd.)? |
| Please visit our website: www.grand-mfg.com . |
