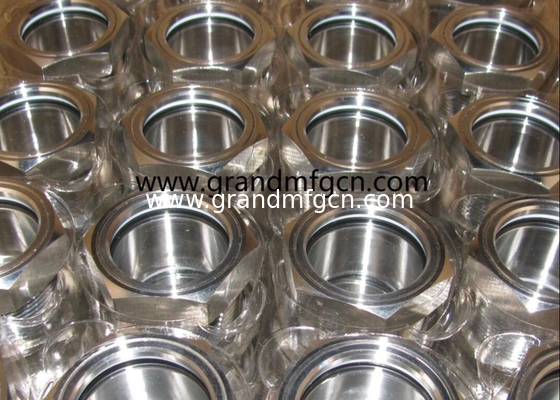

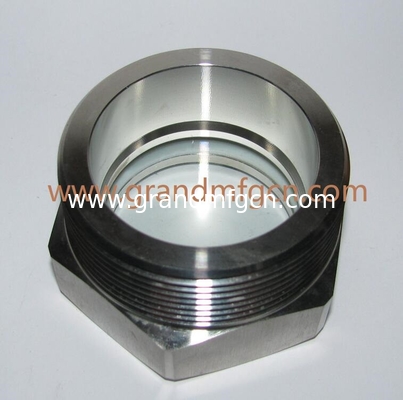

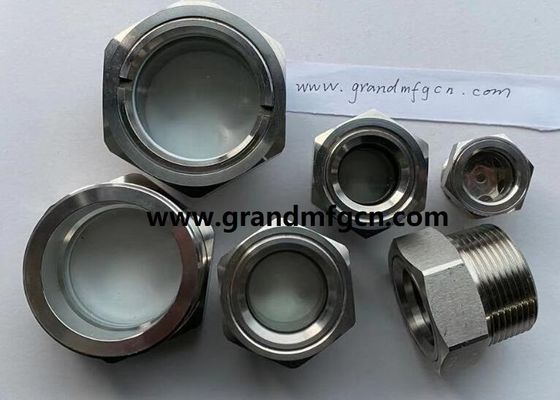

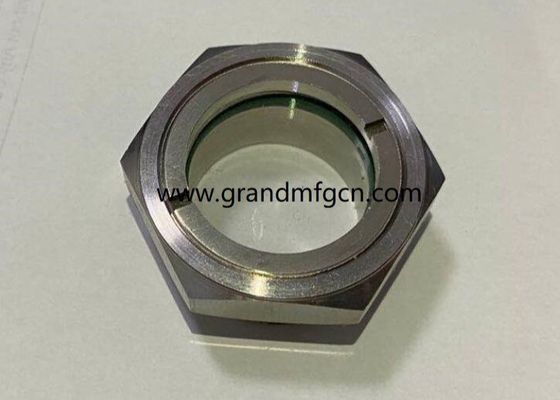

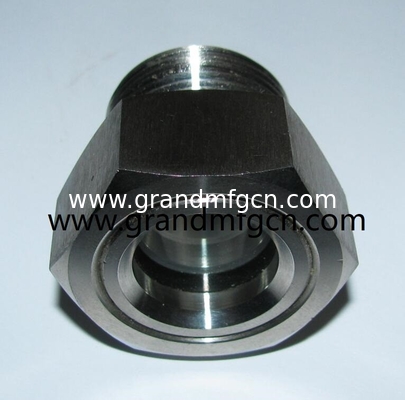

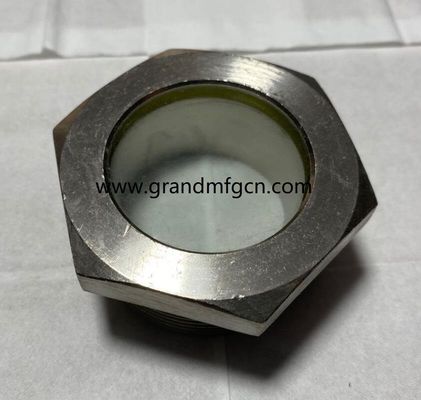

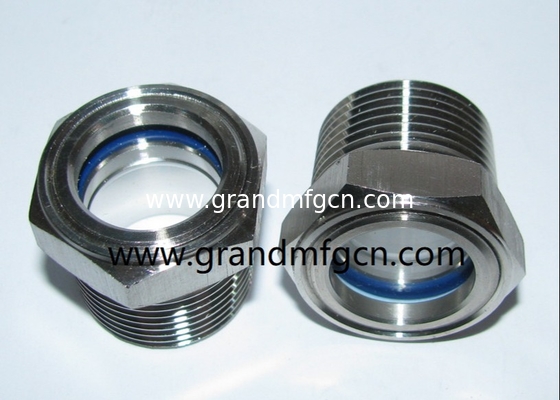

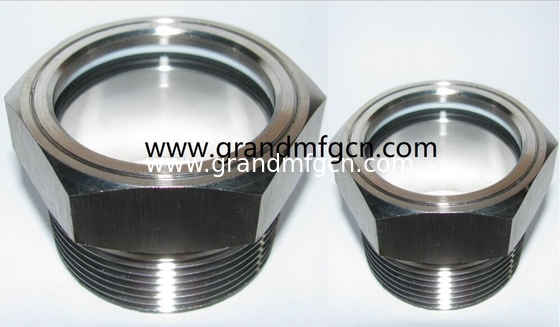

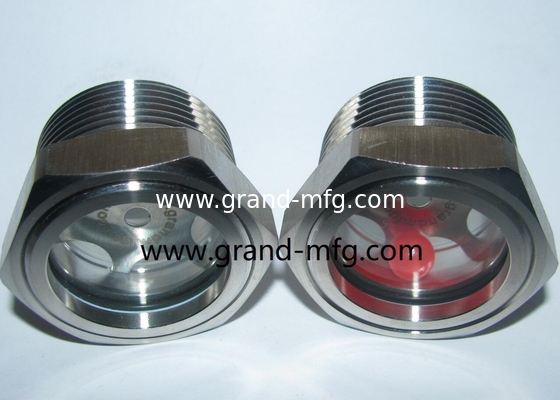

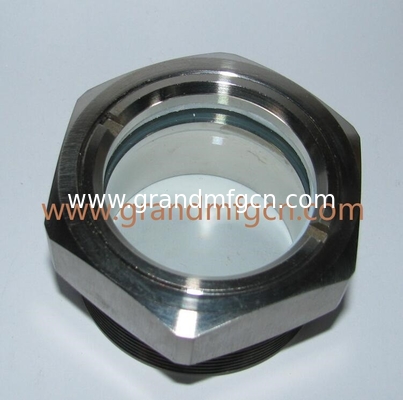

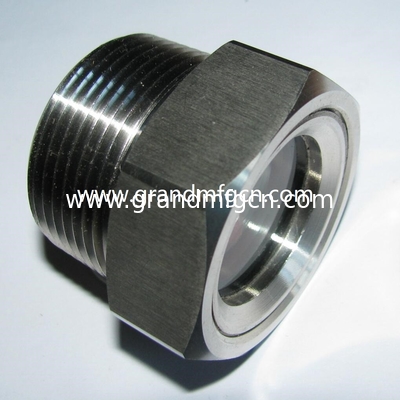

Stainless Steel Oil level sight glass
Material Body: Stainless steel 304,Stainless steel 304L,Stainless Steel 316,Stainless steel 316L
O-Ring: Viton,FKM,FPM,NBR, Aramid gasket,Silicone Rubber,and Copper seal
Glass Thickness: 2mm to 5 mm
Reflectors: Stainless Steel 304 Reflector

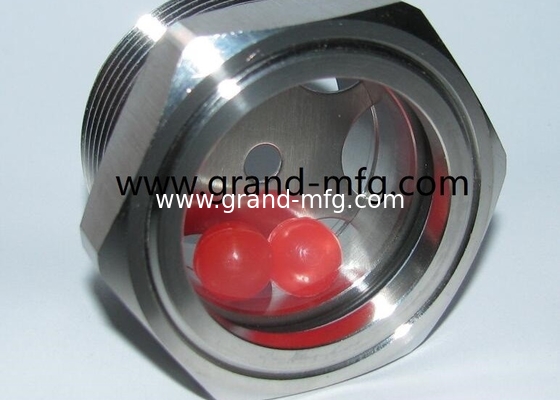

(Any type you can chose with reflector or without Reflector, You also can add float ball.)
Glass Type: Natural Glass,Tempered Glass and Borosilicate Glass
Resist Tempreature Range:-30'C to 220'C
Pressure Range: 5-120 Bar(0.5MPa to 12 MPa).
Thread type:NPT,NPTF,UNC,UNF,Metric and BSP(G thread)
Size: Below you will get the size you wanted.Another size is okay.OEM are welcome.
Usage: Pump,Oil Receivers,Gearboxes,Speed Reducer,Compressor and Power Transimission.
| item |
SS sight glasses |
| material |
Stainless steel 304,Stainless steel 304L,Stainless Steel 316,
Stainless steel 316L |
| O-Ring |
Viton,FKM,NBR, Aramid gasket and Copper seal |
| window |
Natural Glass,Tempered Glass and Borosilicate Glass |
| Glass Thickness |
2mm to 5 mm |
| Reflectors |
Stainless Steel 304 Reflector
(Any type you can chose with reflector or without Reflector, You also can add float ball.) |
| Resist Tempreature Range |
.-30'C TO 120'C |
| Pressure Range |
5-10 Bar(0.5MPa to 1 MPa). |
| Thread type |
NPT,NPTF,UNC,UNF,Metric and BSP(G thread) |
Material Body: Stainless steel 304,Stainless steel 304L,Stainless Steel 316,Stainless steel 316L
O-Ring: Viton,FKM,NBR, Aramid gasket,Silicone Rubber,and Copper seal
Glass Thickness: 2mm to 5 mm
Reflectors: Stainless Steel 304 Reflector
(Any type you can chose with reflector or without Reflector, You also can add float ball.)
Glass Type: Natural Glass,Tempered Glass and Borosilicate Glass
Resist Tempreature Range:-30'C to 220'C
Pressure Range: 5-120 Bar(0.5MPa to 12 MPa).
Thread type:NPT,NPTF,UNC,UNF,Metric and BSP(G thread)
-------------------------------------------------------------------------------------------------------------------------
aluminum oil sight glasses:
Aluminum Oil level sight glass
Material Body: Aluminum 6061 T6/Aluminum 6063
Finish: aluminum natural and aluminum oxidized color/ Anodizing color.
O-Ring: Viton,FKM,FPM,NBR, Aramid gasket and Copper seal
Glass Thickness: 2mm to 5 mm
Reflectors: Stainless Steel 304 Reflector
(Any type you can chose with reflector or without Reflector, You also can add float ball.)
Glass Type: Natural Glass,Tempered Glass and Borosilicate Glass
Resist Tempreature Range:-30'C to 120'C
Pressure Range: 5-10 Bar(0.5MPa to 1 MPa).
Thread type:NPT,NPTF,UNC,UNF,Metric and BSP(G thread)
Size: Below you will get the size you wanted.Another size is okay.OEM are welcome.
Usage: Pump,Oil Receivers,Gearboxes,Speed Reducer,Compressor and Power Transimission.
| item |
aluminum sight glasses |
| material body |
Aluminum 6061 T6/Aluminum 6063 |
| O-Ring |
Viton,FKM,NBR, Aramid gasket and Copper seal |
| window |
Natural Glass,Tempered Glass and Borosilicate Glass |
| Glass Thickness |
2mm to 5 mm |
| Reflectors |
Stainless Steel 304 Reflector
(Any type you can chose with reflector or without Reflector, You also can add float ball.) |
| Resist Tempreature Range |
.-30'C TO 120'C |
| Pressure Range |
5-10 Bar(0.5MPa to 1 MPa). |
| Thread type |
UNC,UNF,Metric and BSP(G thread) |
| size |
Below you will get the size you wanted.Another size is okay.
OEM are welcome. |
| Usage |
Pump,Oil Receivers,Gearboxes,Speed Reducer,Compressor and Power Transimission. |
PRODUCTS DESCRIPTION:
aluminum oil sight glasses:
Material Body: Aluminum 6061 T6/Aluminum 6063
O-Ring: Viton,FKM,NBR, Aramid gasket and Copper seal
Glass Thickness: 2mm to 5 mm
Reflectors: Stainless Steel 304 Reflector
(Any type you can chose with reflector or without Reflector, You also can add float ball.)
Glass Type: Natural Glass,Tempered Glass and Borosilicate Glass
Resist Tempreature Range:-30'C to 120'C
Pressure Range: 5-10 Bar(0.5MPa to 1 MPa).
Thread type:NPT,NPTF,UNC,UNF,Metric and BSP(G thread)
Size: Below you will get the size you wanted.Another size is okay.OEM are welcome.
Usage: Pump,Oil Receivers,Gearboxes,Speed Reducer,Compressor and Power Transimission.
Brass sight glass
Material Body: Brass
O-Ring: Viton,FKM,NBR, Aramid gasket and Copper seal
Glass Thickness: 2mm to 5 mm
Reflectors: Stainless Steel 304 Reflector
(Any type you can chose with reflector or without Reflector, You also can add float ball.)
Glass Type: Natural Glass,Tempered Glass and Borosilicate Glass
Resist Tempreature Range:-30'C to 120'C
Pressure Range: 5-10 Bar(0.5MPa to 1 MPa).
Thread type:NPT,NPTF,UNC,UNF,Metric and BSP(G thread)
Size: Below you will get the size you wanted.Another size is okay.OEM are welcome.
Usage: Pump,Oil Receivers,Gearboxes,Speed Reducer,Compressor and Power Transimission.
| item |
brass sight glasses |
| material |
brass |
| O-Ring |
Viton,FKM,NBR, Aramid gasket and Copper seal |
| window |
Natural Glass,Tempered Glass and Borosilicate Glass |
| Glass Thickness |
2mm to 5 mm |
| Reflectors |
Stainless Steel 304 Reflector
(Any type you can chose with reflector or without Reflector, You also can add float ball.) |
| Resist Tempreature Range |
.-30'C TO 120'C |
| Pressure Range |
5-10 Bar(0.5MPa to 1 MPa). |
| Thread type |
NPT,NPTF,UNC,UNF,Metric and BSP(G thread) |
FUSED SIGHT GLASS:
- Threaded Fused Window Sights,Fused Sight Glass,Fused level sight gauge,Fused Sight windows,Metal Sight Glass
- Service: Compatible gases and liquids.
- Window: nature glass (3mm to 6mm)
- Body: Nickel Plated steet,stainless steel 304 and S.S 316
- Reflector: S.S 304 Customers can chosed Plastic float Ball for oil or other liquid.
- Temperature: -30'C to 260 'C (500 ‘F).
- Max Pressure: 12 MPa(1740Psi)
- Connections: NPT,NPTF,UNC,UNF,Metric and BSP (G thread)
- Size: 1/4" to 2"
- Usage: refrigeration machine, compressor,Hydraulic reservoir,Power Transimission and various machine.
-
| Item |
Fused sight glass |
| Material |
steel nickel plated |
| Window |
Natural Glass |
| Glass Thickness |
2mm to 5 mm |
| Working Tempreature |
: －40℃～200℃ |
| Temperature Assaults Date |
: －40℃～180℃ |
| Working Pressure |
2.5, 4.0Mpa |
Our products are provided with simple structure, novel appearance, high airproof,
well poressure, good anti-cold concussion, marked clearly in the indication of
liquid location etc characters, and favor of the spacious domestic and overseas
air compressor producer deeply. |
| item |
brass breather vent plugs |
| material |
brass or aluminum |
| Thread Type |
BSP,Metric,NPT |
| finish |
Natural and Nickel Plated |
| size |
Any Size OEM are welcome. |
| Work Pressure |
0.005 MPa to M 0.03 Mpa |
| Tempture Range |
: -30 Cent degree to 130 Cent degree. |
| Pressure Range |
5-10 Bar(0.5MPa to 1 MPa). |
| Thread type |
Pump, Thin-wall container, Radiator, Hydraulic reservoir, receivers,
Gearboxes, Speed Reducer, Compressor and Power Transmission. |
| item |
Magnetic oil drain plugs |
| material |
Steel and Aluminum |
| Magnet Material |
NdFeb magnets and Ferrite magnets |
| Thread Type |
BSP,Metric |
| finish |
Steel Zinc plated, Aluminum Natural and Aluminum Oxidized Color. |
| size |
Metric thread,NPT Thread and BSP thread. OEM is welcome. |
| Usage |
Auto engineer,gearbox,pump,oil tank and speed reducer. |
| item |
steel plugs |
| material |
Carbon Steel and Al 6061 |
| Thread Type |
BSP,Metric,NPT |
| finish |
Steel Zinc plated,Aluminum Natural and Aluminum Anodizing |
| size |
Any Size OEM are welcome. |
| Usage |
Hydraulic equipements, Gearboxes,Speed Reducer,Cars,Automotive,
Truck,Pump and Power Transimission. |
1)Wihtstand hight pressure hydraulic plugs.
2)Covering standards of DIN, SAE, ISO, JIS and BS etc. |
| item |
brass sight gauges |
| Housing |
brass tube |
| tube |
quartz glass tube |
| O-Ring and flat gaskets |
NBR Rubber |
| Thread szie |
M10x1, M12x1.5, M14x1.5, M16x1.5, G1/4”, G3/8”,
G1/2”, NPT1/4, NPT3/8, NPT1/2” |
| Temperature resistant |
: -20’C to 120 ‘C. / 0’F to 260 ‘F |
| Distance of two bolts |
80mm to 600mm |
