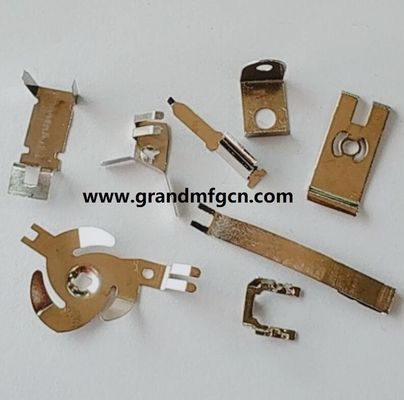

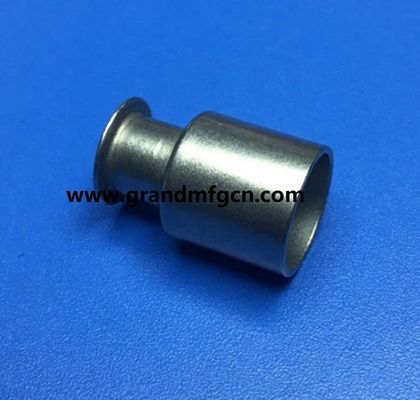

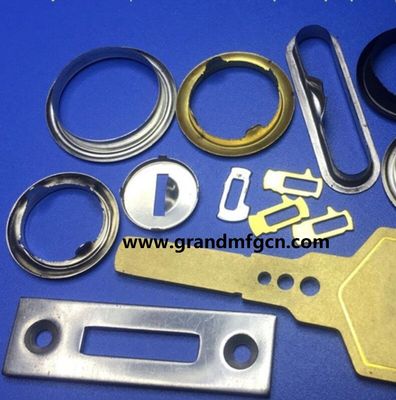

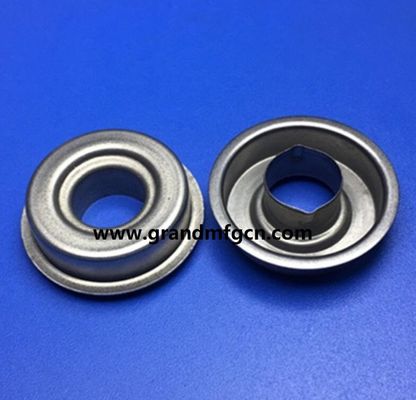

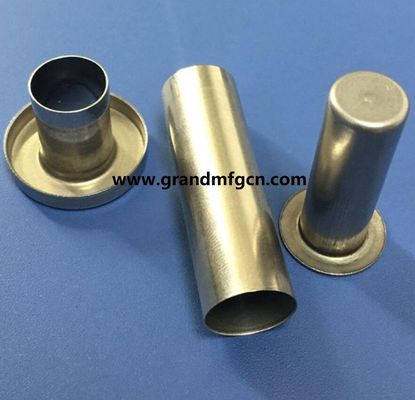

Custom Metal Punching Parts
Idea and designs from customers can be realized into new products here confidentially.
Any OEM metalwork is welcomed!
We will deliver products and services that both anticipate and meet or exceed customer expectation.
Metal: Aluminum,steel and stainless steel.
Material Body: Brass
O-Ring: Viton,FKM,NBR, Aramid gasket and Copper seal
Glass Thickness: 2mm to 5 mm
Reflectors: Stainless Steel 304 Reflector
(Any type you can chose with reflector or without Reflector, You also can add float ball.)
Glass Type: Natural Glass,Tempered Glass and Borosilicate Glass
Resist Tempreature Range:-30'C to 120'C
Pressure Range: 5-10 Bar(0.5MPa to 1 MPa).
Thread type:NPT,NPTF,UNC,UNF,Metric and BSP(G thread)
Size: Below you will get the size you wanted.Another size is okay.OEM are welcome.
Usage: Pump,Oil Receivers,Gearboxes,Speed Reducer,Compressor and Power Transimission.
| item | brass sight glasses |
| material | brass |
| O-Ring | Viton,FKM,NBR, Aramid gasket and Copper seal |
| window | Natural Glass,Tempered Glass and Borosilicate Glass |
| Glass Thickness | 2mm to 5 mm |
| Reflectors | Stainless Steel 304 Reflector (Any type you can chose with reflector or without Reflector, You also can add float ball.) |
| Resist Tempreature Range | .-30'C TO 120'C |
| Pressure Range | 5-10 Bar(0.5MPa to 1 MPa). |
| Thread type | NPT,NPTF,UNC,UNF,Metric and BSP(G thread) |
| item | aluminum sight glasses |
| material body | Aluminum 6061 T6/Aluminum 6063 |
| O-Ring | Viton,FKM,NBR, Aramid gasket and Copper seal |
| window | Natural Glass,Tempered Glass and Borosilicate Glass |
| Glass Thickness | 2mm to 5 mm |
| Reflectors | Stainless Steel 304 Reflector (Any type you can chose with reflector or without Reflector, You also can add float ball.) |
| Resist Tempreature Range | .-30'C TO 120'C |
| Pressure Range | 5-10 Bar(0.5MPa to 1 MPa). |
| Thread type | UNC,UNF,Metric and BSP(G thread) |
| size | Below you will get the size you wanted.Another size is okay. OEM are welcome. |
| Usage | Pump,Oil Receivers,Gearboxes,Speed Reducer,Compressor and Power Transimission. |
| item | SS sight glasses |
| material | Stainless steel 304,Stainless steel 304L,Stainless Steel 316, Stainless steel 316L |
| O-Ring | Viton,FKM,NBR, Aramid gasket and Copper seal |
| window | Natural Glass,Tempered Glass and Borosilicate Glass |
| Glass Thickness | 2mm to 5 mm |
| Reflectors | Stainless Steel 304 Reflector (Any type you can chose with reflector or without Reflector, You also can add float ball.) |
| Resist Tempreature Range | .-30'C TO 120'C |
| Pressure Range | 5-10 Bar(0.5MPa to 1 MPa). |
| Thread type | NPT,NPTF,UNC,UNF,Metric and BSP(G thread) |
| item | brass breather vent plugs |
| material | brass or aluminum |
| Thread Type | BSP,Metric,NPT |
| finish | Natural and Nickel Plated |
| size | Any Size OEM are welcome. |
| Work Pressure | 0.005 MPa to M 0.03 Mpa |
| Tempture Range | : -30 Cent degree to 130 Cent degree. |
| Pressure Range | 5-10 Bar(0.5MPa to 1 MPa). |
| Thread type | Pump, Thin-wall container, Radiator, Hydraulic reservoir, receivers, Gearboxes, Speed Reducer, Compressor and Power Transmission. |
| item | Radiator Coolant Filler Necks & Cap |
| material | SUS304,Steel,aluminum and brass. |
| Main area used | Various brands of car,truck,etc. |
| Withstand Max Pressure | 0.6MPa,0.9MPa and 1.1MPa |
| All goods are strictly monitored and inspected from production to delivery. | |
| Transportation: Container Freight & International Multimodal Transport | |
| Packing: General exporting package or according to customers' requirements. | |
| item | steel plugs |
| material | Carbon Steel and Al 6061 |
| Thread Type | BSP,Metric,NPT |
| finish | Steel Zinc plated,Aluminum Natural and Aluminum Anodizing |
| size | Any Size OEM are welcome. |
| Usage | Hydraulic equipements, Gearboxes,Speed Reducer,Cars,Automotive, Truck,Pump and Power Transimission. |
| 1)Wihtstand hight pressure hydraulic plugs. 2)Covering standards of DIN, SAE, ISO, JIS and BS etc. |
|
Just please contact us for checking our stocks and confirming the specifications.
