Name: Metric thread M42 M36 M33 M30 quality stainless steel bulls eye hexagon sight glasse for industrial PUMPS
Brand: grandmfg
SKU: 1/2",3/4",1",11/2",11/4",13/4",2"
Price: 0.8 USD
Availability: InStock
Rating: 4.9 (171 reviews)

Features Gallery Product Description Request A Quote

Features

Specifications

Material: Ss304, Ss316

Thread: BSP,NPT,Metric Thread

Finish: Natural

Window: Borosilicate Glass(Pyrex Glass)

Glass Thickness: 2mm-5mm

Basic Infomation

Place of Origin: China

Brand Name: grandmfg

Certification: ISO9001

Model Number: 1/2",3/4",1",11/2",11/4",13/4",2"

Payment & Shipping Terms

Packaging Details: exporting packaging

Delivery Time: 45 work days

Payment Terms: T/T

Supply Ability: 100000/month

Gallery

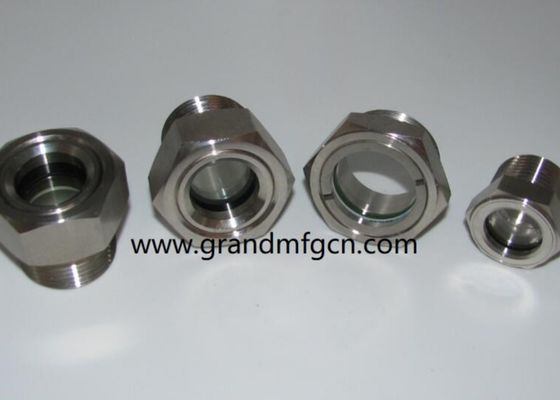

Metric thread M42 M36 M33 M30 quality stainless steel bulls eye hexagon sight glasse for industrial PUMPS

Product Description

Material Body: Stainless steel 304,Stainless steel 304L,Stainless Steel 316,Stainless steel 316L
O-Ring: Viton,FKM,NBR, Aramid gasket and Copper seal
Glass Thickness: 2mm to 5 mm
Reflectors: Stainless Steel 304 Reflector
(Any type you can chose with reflector or without Reflector, You also can add float ball.)
Glass Type: Natural Glass,Tempered Glass and Borosilicate Glass
Resist Tempreature Range:-30'C to 120'C
Pressure Range: 5-10 Bar(0.5MPa to 1 MPa).
Thread type:NPT,NPTF,UNC,UNF,Metric and BSP(G thread)
Size: Below you will get the size you wanted.Another size is okay.OEM are welcome.
Usage: Pump,Oil Receivers,Gearboxes,Speed Reducer,Compressor and Power Transimission.

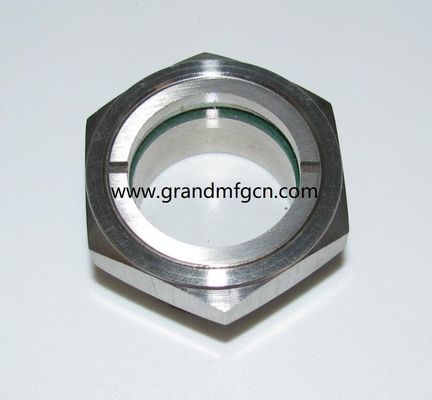

Metric thread M42 M36 M33 M30 quality stainless steel bulls eye hexagon sight glasse for industrial PUMPS 0

item	SS sight glasses
material	Stainless steel 304,Stainless steel 304L,Stainless Steel 316, Stainless steel 316L
O-Ring	Viton,FKM,NBR, Aramid gasket and Copper seal
window	Natural Glass,Tempered Glass and Borosilicate Glass
Glass Thickness	2mm to 5 mm
Reflectors	Stainless Steel 304 Reflector (Any type you can chose with reflector or without Reflector, You also can add float ball.)
Resist Tempreature Range	.-30'C TO 120'C
Pressure Range	5-10 Bar(0.5MPa to 1 MPa).
Thread type	NPT,NPTF,UNC,UNF,Metric and BSP(G thread)

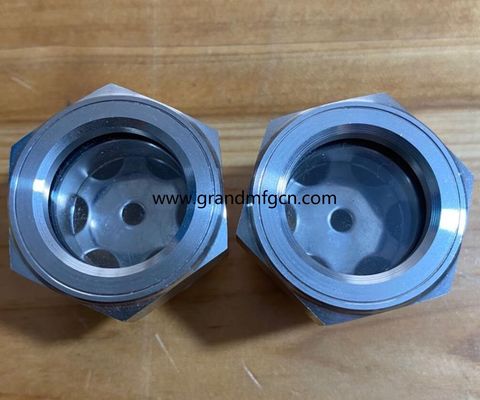

Metric thread M42 M36 M33 M30 quality stainless steel bulls eye hexagon sight glasse for industrial PUMPS 3

item	brass sight glasses
material	brass
O-Ring	Viton,FKM,NBR, Aramid gasket and Copper seal
window	Natural Glass,Tempered Glass and Borosilicate Glass
Glass Thickness	2mm to 5 mm
Reflectors	Stainless Steel 304 Reflector (Any type you can chose with reflector or without Reflector, You also can add float ball.)
Resist Tempreature Range	.-30'C TO 120'C
Pressure Range	5-10 Bar(0.5MPa to 1 MPa).
Thread type	NPT,NPTF,UNC,UNF,Metric and BSP(G thread)

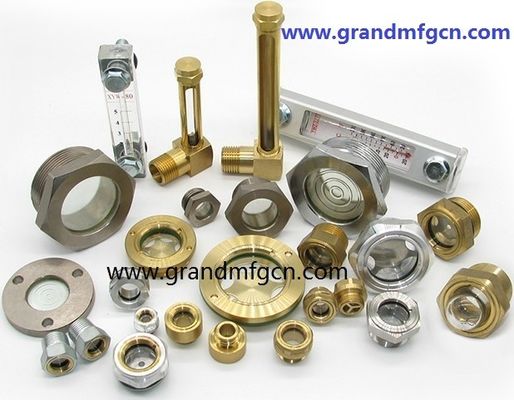

Metric thread M42 M36 M33 M30 quality stainless steel bulls eye hexagon sight glasse for industrial PUMPS 7

item	aluminum sight glasses
material body	Aluminum 6061 T6/Aluminum 6063
O-Ring	Viton,FKM,NBR, Aramid gasket and Copper seal
window	Natural Glass,Tempered Glass and Borosilicate Glass
Glass Thickness	2mm to 5 mm
Reflectors	Stainless Steel 304 Reflector (Any type you can chose with reflector or without Reflector, You also can add float ball.)
Resist Tempreature Range	.-30'C TO 120'C
Pressure Range	5-10 Bar(0.5MPa to 1 MPa).
Thread type	UNC,UNF,Metric and BSP(G thread)
size	Below you will get the size you wanted.Another size is okay. OEM are welcome.
Usage	Pump,Oil Receivers,Gearboxes,Speed Reducer,Compressor and Power Transimission.

Metric thread M42 M36 M33 M30 quality stainless steel bulls eye hexagon sight glasse for industrial PUMPS 12

Item	plastic sight glasses
Material	Plastic PMMA
Window	plastic
Reflectors	Plastic PMMA
Resist Tempreature Range	:-30'C to 70'C
Pressure Range	1-5 Bar(0.1MPa to 0.5 MPa).
Size	Below you will get the size you wanted.Another size is okay.OEM are welcome.
Usage	Pump,Oil Receivers,Gearboxes,Speed Reducer,Compressor and Power Transimission.

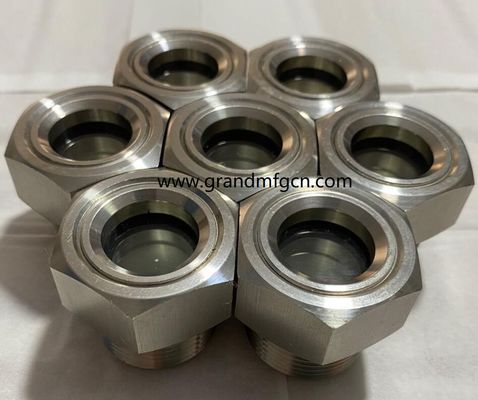

Metric thread M42 M36 M33 M30 quality stainless steel bulls eye hexagon sight glasse for industrial PUMPS 16

item	SS machined parts
material	SS304,SS316
finish	Natural
service	OEM and ODM business
Dimension Tolerance:	CNC Lathe +/-0.01 mm. General Lathe +/-0.1 to 0.2 mm

Metric thread M42 M36 M33 M30 quality stainless steel bulls eye hexagon sight glasse for industrial PUMPS 18

Tel :	86-139-6762 1509
Fax :	86-576-88327473
