Features Gallery Product Description Request A Quote

Features

Specifications

Material: Brass Hpb57-3

Size: 1/2",3/8"1/4,1",11/4",11/2",13/4",2"

Finishing: Natural

Basic Infomation

Place of Origin: China

Brand Name: grand-mfg

Model Number: GM

Payment & Shipping Terms

Packaging Details: exporting packaging

Delivery Time: 45 work days

Payment Terms: T/T, Western Union

Supply Ability: 100000/month

Gallery

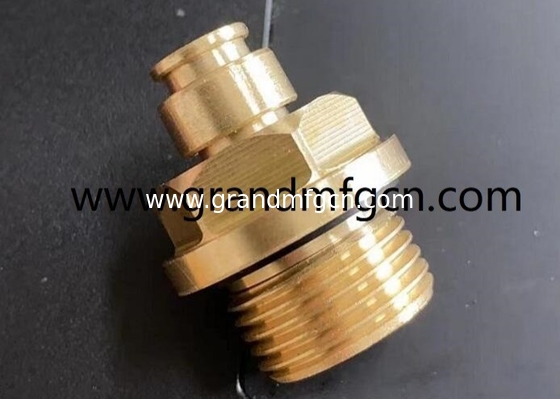

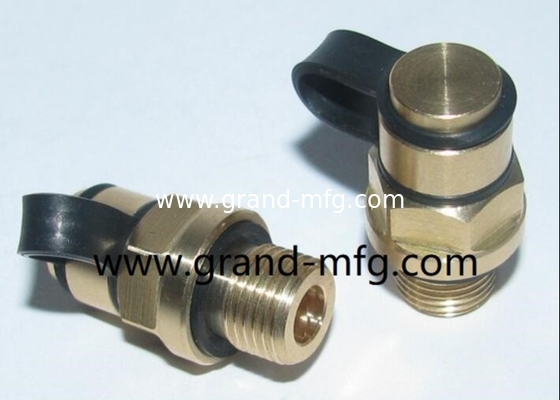

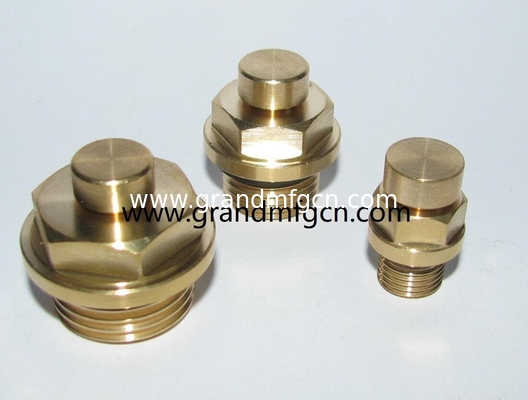

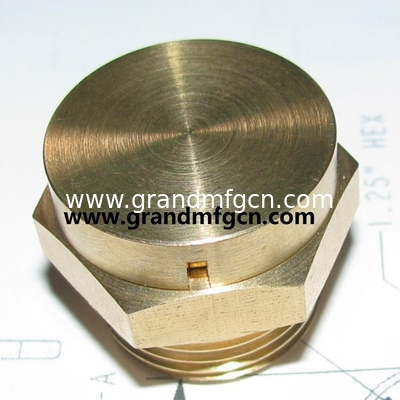

G3/8" 1/4" 1/8" male BSP Speed Reducer breather vent plug air released valve withstand 0.15 bar pressure milled hex plug Breather Air Vent Plug for High-Pressure Hydraulic Reservoirs

Product Description

G3/8" 1/4" 1/8" male BSP Speed Reducer breather vent plug air released valve withstand 0.15 bar pressure milled hex plug Breather Air Vent Plug for High-Pressure Hydraulic Reservoirs 0
Breather Vent Plugs,Breather cap,Vent Plugs,Breather Plugs,Breather vents,Air vent plugs,Air released plug
Material: Brass and Aluminum
Finish: Natural and Nickel Plated
Thread Type: BSP,Metric,NPT
Size: Any Size OEM are welcome.
Work Pressure: 0.005 MPa to M 0.03 MPa
Tempture Range: -30 Cent degree to 130 Cent degree.
Usage: Pump, Thin-wall container, Radiator, Hydraulic reservoir, receivers, Gearboxes, Speed Reducer, Compressor and Power Transmission.

G3/8" 1/4" 1/8" male BSP Speed Reducer breather vent plug air released valve withstand 0.15 bar pressure milled hex plug Breather Air Vent Plug for High-Pressure Hydraulic Reservoirs 1

item	brass breather vent plugs
material	brass or aluminum
Thread Type	BSP,Metric,NPT
finish	Natural and Nickel Plated
size	Any Size OEM are welcome.
Work Pressure	0.005 MPa to M 0.03 Mpa
Tempture Range	: -30 Cent degree to 130 Cent degree.
Pressure Range	5-10 Bar(0.5MPa to 1 MPa).
Thread type	Pump, Thin-wall container, Radiator, Hydraulic reservoir, receivers, Gearboxes, Speed Reducer, Compressor and Power Transmission.

G3/8" 1/4" 1/8" male BSP Speed Reducer breather vent plug air released valve withstand 0.15 bar pressure milled hex plug Breather Air Vent Plug for High-Pressure Hydraulic Reservoirs 6

item	brass sight gauges
Housing	brass tube
tube	quartz glass tube
O-Ring and flat gaskets	NBR Rubber
Thread szie	M10x1, M12x1.5, M14x1.5, M16x1.5, G1/4”, G3/8”, G1/2”, NPT1/4, NPT3/8, NPT1/2”
Temperature resistant	: -20’C to 120 ‘C. / 0’F to 260 ‘F
Distance of two bolts	80mm to 600mm

G3/8" 1/4" 1/8" male BSP Speed Reducer breather vent plug air released valve withstand 0.15 bar pressure milled hex plug Breather Air Vent Plug for High-Pressure Hydraulic Reservoirs 8

item	Hydraulic oil level indicator
Housing	Aluminum alloy housing and inside thermoplastic (PC)
O-Ring and flat gaskets	NBR Rubber
Reflector	aluminum with printed white
Bolt	M10 Hexagon nut and washer in galvanized steel
Temperature resistant	: -20’C to 100 ‘C. / 0’F to 220 ‘F
Distance of two bolts	50mm to 500mm
Usage	Thin-wall container, Radiator, Hydraulic reservoir and receivers.

G3/8" 1/4" 1/8" male BSP Speed Reducer breather vent plug air released valve withstand 0.15 bar pressure milled hex plug Breather Air Vent Plug for High-Pressure Hydraulic Reservoirs 10

item	SS sight glasses
material	Stainless steel 304,Stainless steel 304L,Stainless Steel 316, Stainless steel 316L
O-Ring	Viton,FKM,NBR, Aramid gasket and Copper seal
window	Natural Glass,Tempered Glass and Borosilicate Glass
Glass Thickness	2mm to 5 mm
Reflectors	Stainless Steel 304 Reflector (Any type you can chose with reflector or without Reflector, You also can add float ball.)
Resist Tempreature Range	.-30'C TO 120'C
Pressure Range	5-10 Bar(0.5MPa to 1 MPa).
Thread type	NPT,NPTF,UNC,UNF,Metric and BSP(G thread)

G3/8" 1/4" 1/8" male BSP Speed Reducer breather vent plug air released valve withstand 0.15 bar pressure milled hex plug Breather Air Vent Plug for High-Pressure Hydraulic Reservoirs 11

item	aluminum sight glasses
material body	Aluminum 6061 T6/Aluminum 6063
O-Ring	Viton,FKM,NBR, Aramid gasket and Copper seal
window	Natural Glass,Tempered Glass and Borosilicate Glass
Glass Thickness	2mm to 5 mm
Reflectors	Stainless Steel 304 Reflector (Any type you can chose with reflector or without Reflector, You also can add float ball.)
Resist Tempreature Range	.-30'C TO 120'C
Pressure Range	5-10 Bar(0.5MPa to 1 MPa).
Thread type	UNC,UNF,Metric and BSP(G thread)
size	Below you will get the size you wanted.Another size is okay. OEM are welcome.
Usage	Pump,Oil Receivers,Gearboxes,Speed Reducer,Compressor and Power Transimission.

G3/8" 1/4" 1/8" male BSP Speed Reducer breather vent plug air released valve withstand 0.15 bar pressure milled hex plug Breather Air Vent Plug for High-Pressure Hydraulic Reservoirs 16
